Decal

Y

1 X

1

X

Y 222 DECAL

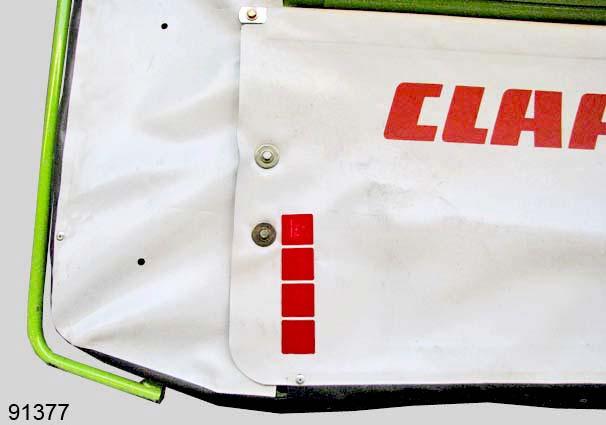

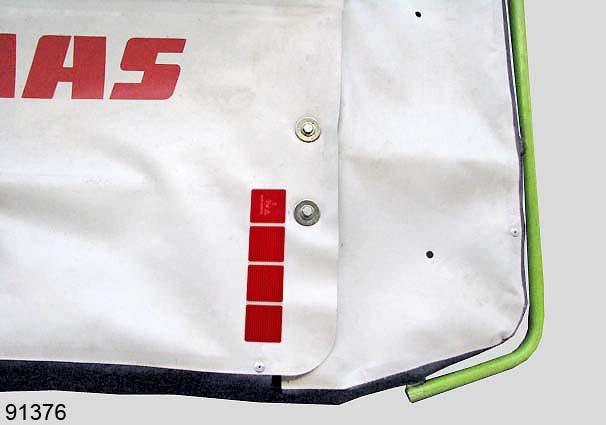

The decal(1) is used for alignment to the edge when mowing. • Clean safety guard in decal area. • Attach decal(1):

X=80mm

Y=50mm

• Press decal(1) on firmly • Pull off the covering film from the decal

(Fig.222,223)

1 (2x)

223
