Establishing the power supply .......................................... 6

35

32 33

31 34

103 104 105

34 35 33 95 96

31 14

32

15 Connecting the operating unit(82) and the operating unit cable(83)

Fit the operating unit holder(95/96) to the bracket(31).

(103) Cheese head screw (M5x16) 4x (104) Contact washer (A5) 4x (105) Lock nut (VM5) 4x

(Fig.14-16)

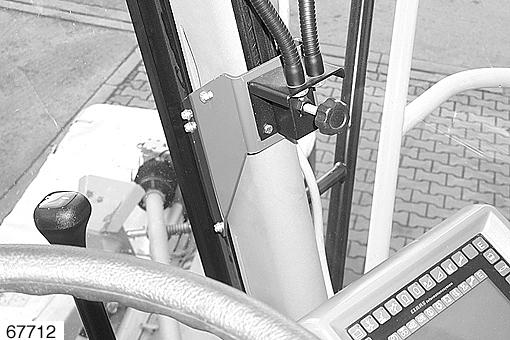

Screw the bracket(31) for the operating unit(82) on to the right hand side frame member of the cabin.

Adjust the stop buffer(34) so that the bracket is slightly under tension. (Fig.14-16)

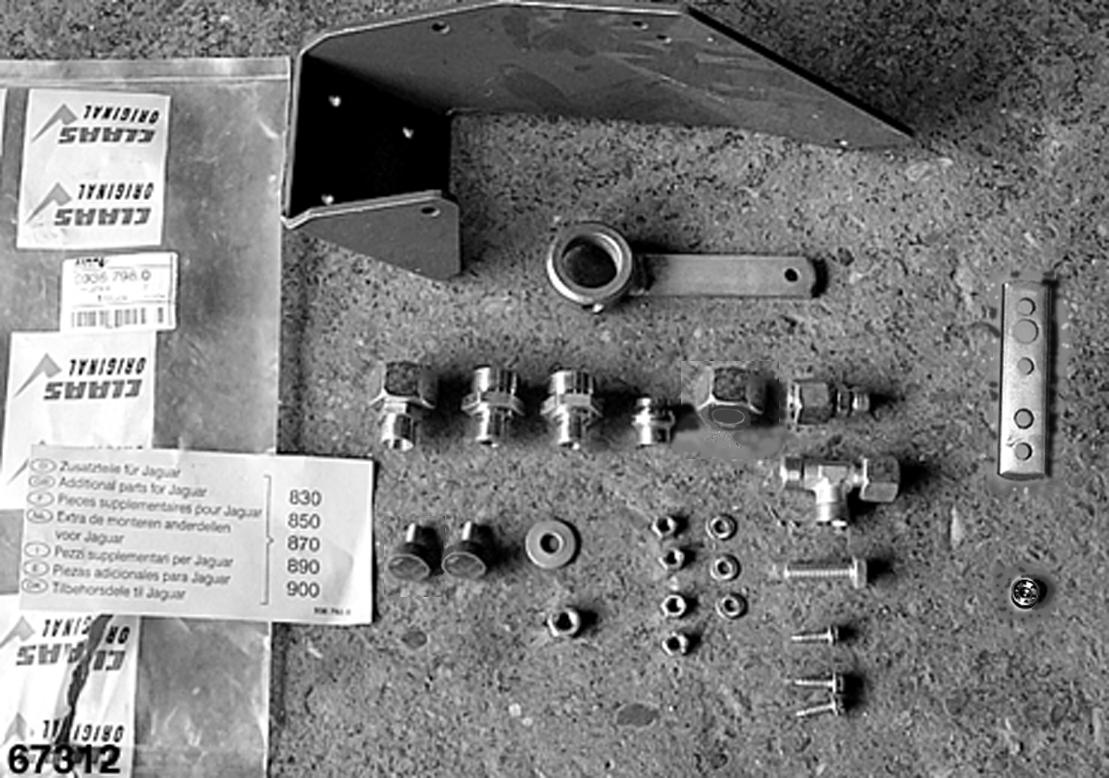

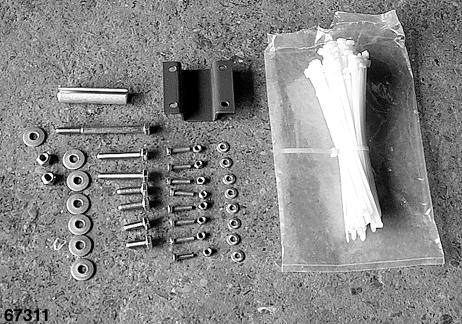

Place the operating unit(82) in the holder. (Fig.15 = Contents of bag (936798.0) - JAGUAR Model 492 conversion parts) (Fig.16 = Contents of bag (936607.0) - JAGUAR Model 492/491 electrics)

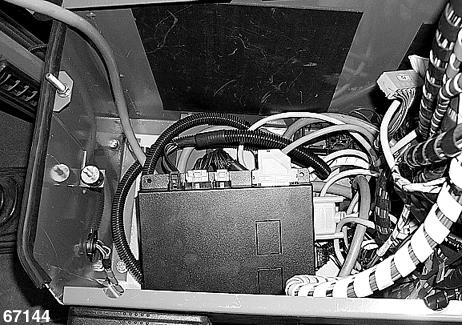

Pull off the rubber seal(G) in the front right hand corner (arrowed) of the central electrics area. Saw out a notch for the cable(83) to the operating unit(82) and then re-lay the rubber seal(G). (Fig.17)

(32) Hex head self tapping screw (ST4.8x16-C)3x (33) Contact washer (A5) 3x (34) Stop buffer (D18x7.5) 2x (35) Hexagonal nut (M6) 4x

103 105 104

G 83 16

492

R 17
