Connecting the isolating plug cable(87) ........................... 6 Fitting the control box(81) and the bracket for the operating

81

Plug the cable(83) from the operating unit(82) into the black control box(81). (Fig.18)

67707

87 84

PL SB 18

82 Installation of the control cable(JAGUAR Model 492)

92

S

C

86 83

81 93

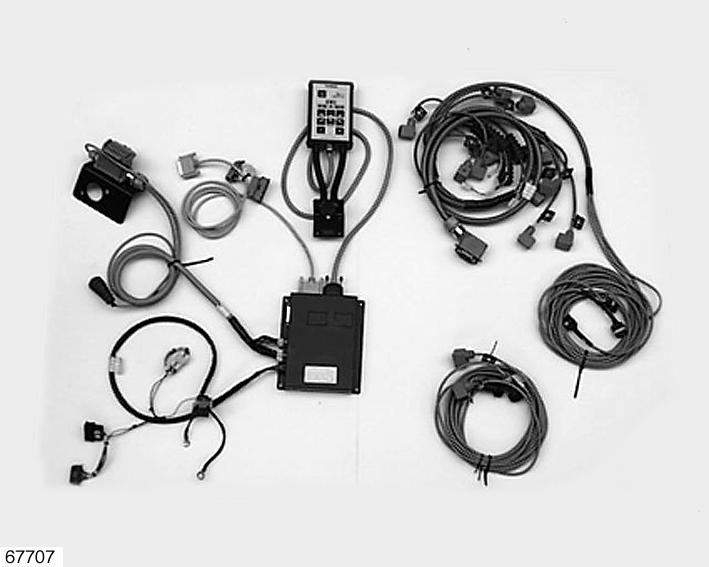

Contents of bag (936607.0) - Electrics (81) Control box (82) Operating unit (83) Operating unit cable (84) Cable, JAGUAR Model 492 (85) Cable, JAGUAR Model 491 (86) Cable, power connection (87) Cable, isolating plug (92) Cable harness to the DISCO (93) Cable extension for JAGUAR Model 491
