87 O Connecting the isolating plug cable(87)

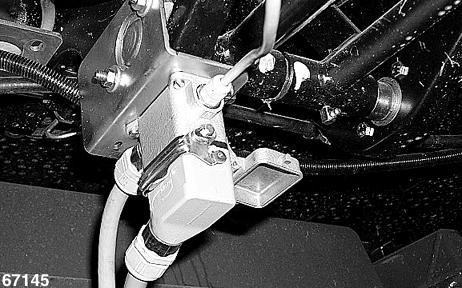

Remove the existing plug(S) of cable harness(92) from socket(D). Screw mounting bracket(88) with socket(D) of cable harness(87) to the cabin floor with 2 hex head screws (89) M5x20, contact washers(90) A5 and lock nuts(91) VM5. (Fig.10)

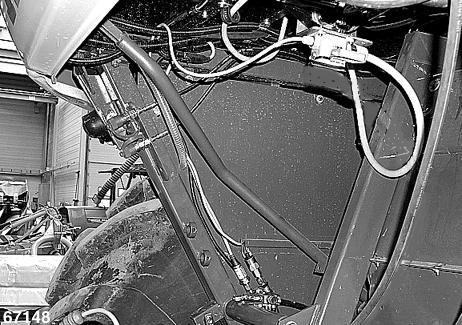

Pass cable(87) from socket(D) through opening(O) in the cabin floor up into the central electrics area. (Fig.11)

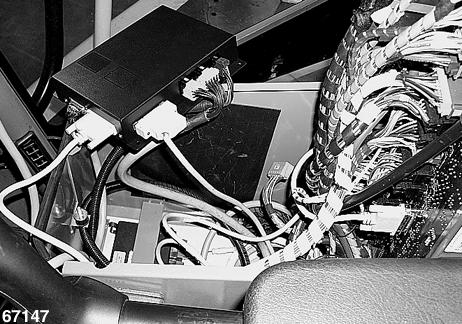

Plug cable(87) into the black control box(81). (Fig.12)

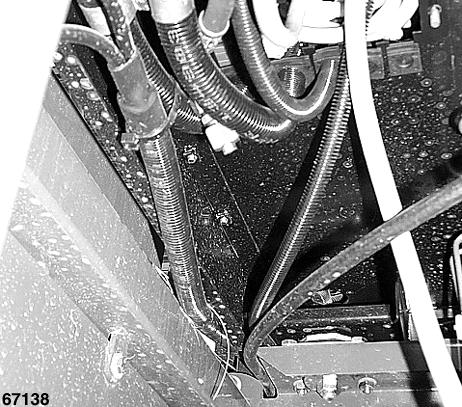

Lay cable(87/L) from socket(D) down along the right hand inner wall and secure with cable ties. (Fig.13)
