Setting the clearance height DISCO 8550CPlus/ 8550C/ 8550C-T.......................................................6
from CLAAS DISCO 8550 C PLUS /8550 C DISCO 8550 PLUS / 8550 DISCO 8550 C-T Assembly and operator's manual
1
2

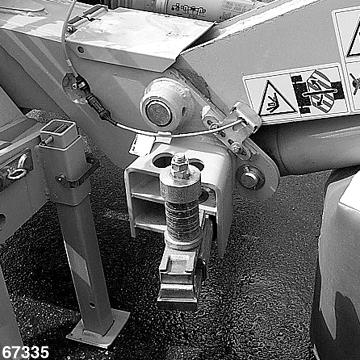

95 Setting the clearance height DISCO 8550CPlus/ 8550C/ 8550C-T
To adjust the clearance height, release the bolts(2) and displace the sensor bracket(1) in the slotted holes. Re-tighten the bolts. Moving the sensor bracket upwards: Side mower units lift higher. Moving the sensor bracket downwards: Side mower units lift lower. (Fig.95)
