116 Hooking up the fitting frame

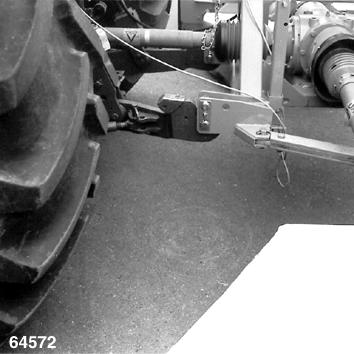

Hook the fitting frame into the lower link pin of the tractor. Use the lower drilled hole(2) for this. Secure the pin with the linch pin. (Fig.115) Fit the upper link and adjust so that the adapter is almost vertical - see also »Setting the cutting height« on page7.14.
Caution!
If the mower unit is operated as a pushed combination, a flat bar(1) must be screwed to the braces of the collision protection. Only in this way can an adequate separation between the tractor and the mower unit be maintained. (Fig.116)
Note:
–see »Conversion from front - rear combination to pushed combination«, page6.59. –see »Conversion from pushed combination to front - rear combination«, page6.61.
