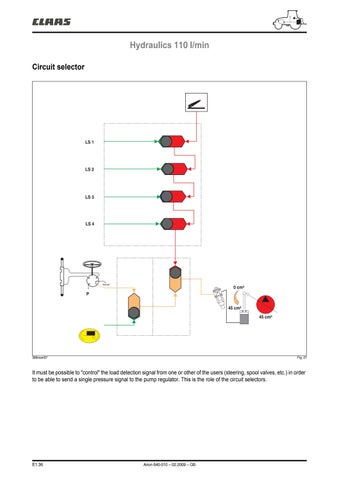

Hydraulics 110 l/min Circuit selector
LS 1
LS 2
LS 3
LS 4
0 cm³ P 45 cm³ 45 cm³
395msm57
Fig. 27
It must be possible to "control" the load detection signal from one or other of the users (steering, spool valves, etc.) in order to be able to send a single pressure signal to the pump regulator. This is the role of the circuit selectors.
E1.36
Arion 640-510 – 02.2009 – GB
