LOCALIZATION OF THE DIAGNOSTIC PRESSURE PLUGS.....................................................................................E1
Hydraulics 110 l/min
Description
1013 Suction filter. 1027 High-pressure oil filter. 3112 Linkage actuator. A Supply of the lubrication leader B Right-hand hydraulic cover (with 45 cm3 variable displacement pump fastened inside the cover). C Cooling systemOil. D Priority unit. E Supply to linkage spool valve. F Lubrication system. G Lubrication feeder. H Left-hand hydraulic cover (with 71 cm3 booster pump fastened inside the cover). I Valve - Linkage. LS Load Sensing signal leader. Y336 Rear lifting up solenoid valve. Y337 Rear lifting down solenoid valve.

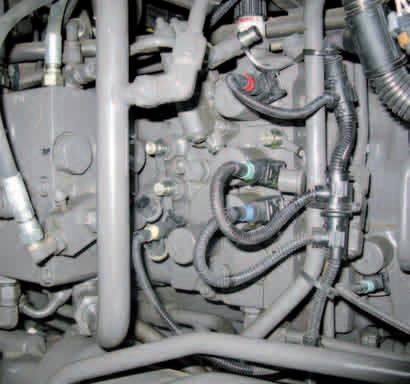

Localization of the diagnostic pressure plugs
Description
9010 Piloting pressure tap. 9024 Load Sensing pressure connection. 9048 Lubrication / boost pressure check. 9055 High pressure connector.
9055 9055 9055
9048904 9048 9024 9024
9010 9010 9010
395msm0c Fig. 43
