5.2 Transportation
from Caterpillar NSP 10N2R 12N2R 12N2IR 14N2R 14N2IR Lift Trucks Service, Operation & Maintenance Manual
5.1.2 Hoist points

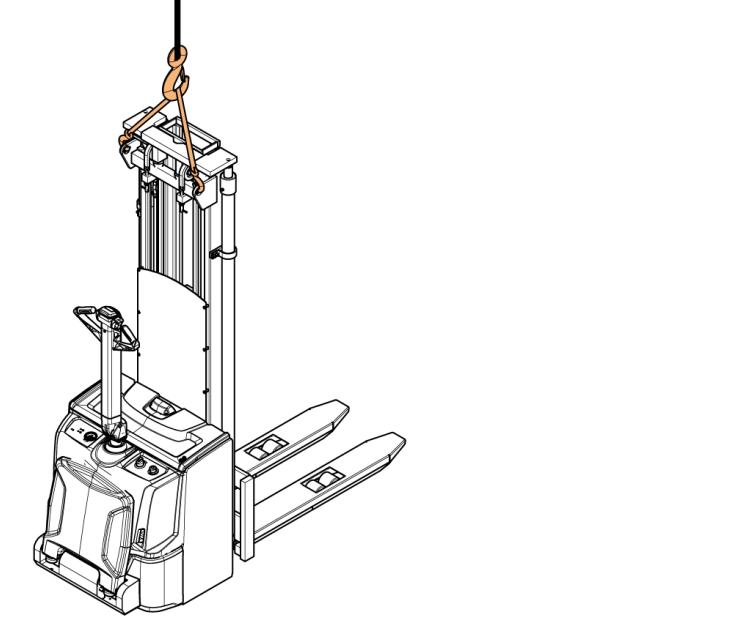

Figure 21 below indicates the correct hoist points for hoisting the truck up for maintenance. Make sure that the capacity of the lifting device is sufficient.
Figure 21. Hoist points
When transporting the truck, it is important that you secure it safely to prevent it from moving. Also support the traction wheel with blocks and lower the mast. If the truck is equipped with an operator’s platform, lift the operator’s platform up.
CAUTION
Do not tie the truck from the tiller arm or it may break.
Figure 22 below shows an example on how to secure the truck safely for transportation.
