Shutdown SIS Previous Screen Product: WHEEL LOADER Model: 950H WHEEL LOADER J5J Configuration: 950H WHEEL LOADER J5J00001-UP (MACHINE) POWERED BY C7 ENGINE
Systems Operation C7 Engines for Caterpillar Built Machines Media Number -SENR9939-29
Publication Date -01/05/2014
Date Updated -27/05/2014
i02593960
Air Inlet and Exhaust System SMCS - 1050

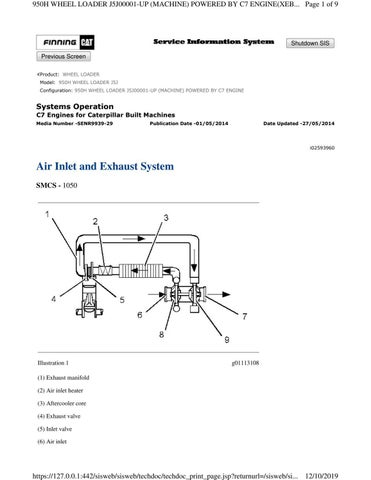

Illustration 1
g01113108
(1) Exhaust manifold (2) Air inlet heater (3) Aftercooler core (4) Exhaust valve (5) Inlet valve (6) Air inlet
