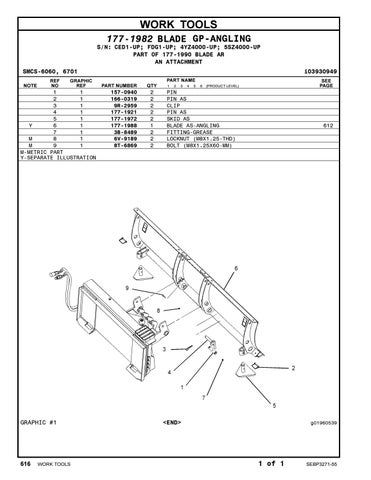

WORK TOOLS 177-1982 BLADE GP-ANGLING
S/N: CED1-UP; FDG1-UP; 4YZ4000-UP; 5SZ4000-UP PART OF 177-1990 BLADE AR AN ATTACHMENT SMCS-6060, 6701 NOTE
REF NO
GRAPHIC REF
1 1 2 1 3 1 4 1 5 1 Y 6 1 7 1 M 8 1 M 9 1 M-METRIC PART Y-SEPARATE ILLUSTRATION
GRAPHIC #1
616
WORK TOOLS
i03930949 PART NAME PART NUMBER
157-0940 166-0319 9R-2959 177-1921 177-1972 177-1988 3B-8489 6V-9189 8T-6869
QTY
2 2 2 2 2 1 2 2 2
1
2
3
4
5
6
SEE PAGE
(PRODUCT LEVEL)
PIN PIN AS CLIP PIN AS SKID AS BLADE AS-ANGLING FITTING-GREASE LOCKNUT (M8X1.25-THD) BOLT (M8X1.25X60-MM)
612
<END>
g01960539
1 of 1
SEBP3271-55
