flange position “W”....................................................................................... 4

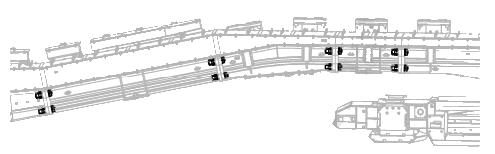

Clamping bolt connection M72 in the overlapping area
The pans installed between the concave pan and the adaptor pan attached to the tensionable drive frame SPR 3 are interconnected by two clamping bolts M72 at each side.
Connecting pans by clamping bolts

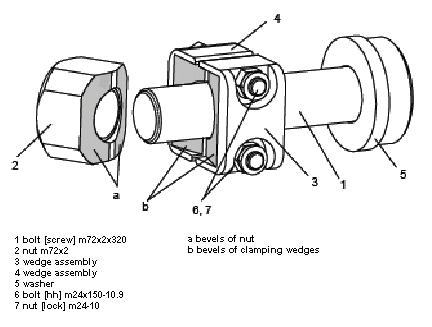

The clamping bolt connection consists of the following components: a screw bolt M72 x 2 a special nut M72 x 2 with bevels two clamping wedges with bevels two hex. head bolts M24 with locknuts.
