Installation __________________________________________________

IMPORTANT

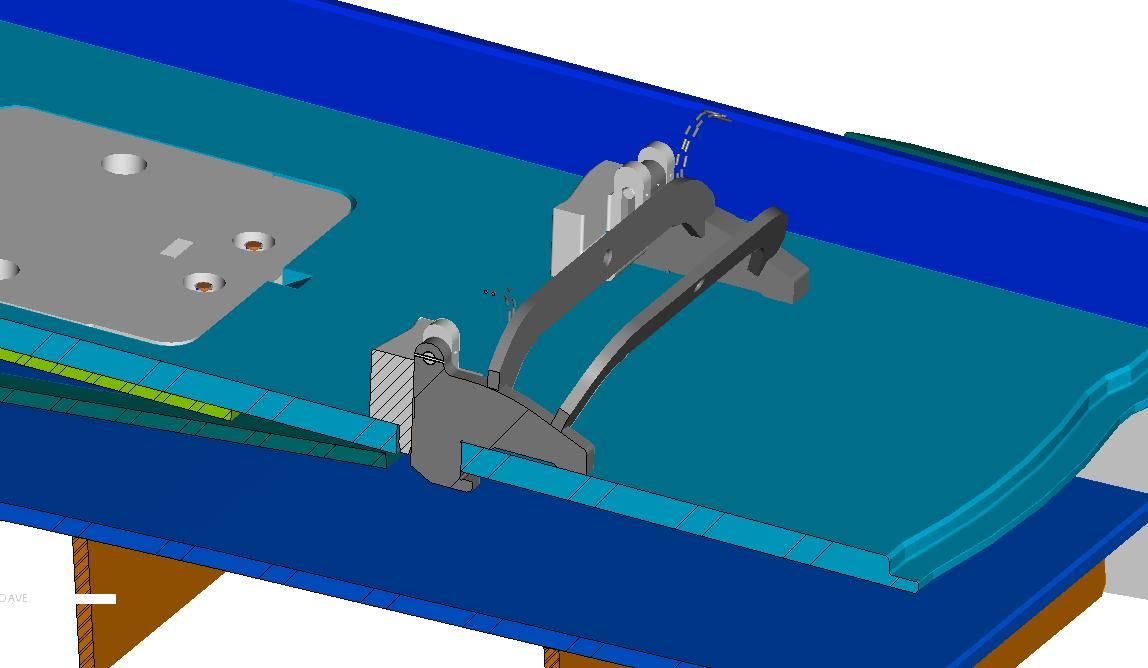

Drop the spacer into the hole to prevent the hook from disengaging from the deck.

IF REQUIRED, REMOVE ANY FLIGHTS PRIOR TO THEM BECOMING TRAPPED UNDER THE PROFILE IN WORK AREA. THIS IS TO BE DONE PRIOR TO ANY CHAIN TENSION BEING APPLIED.

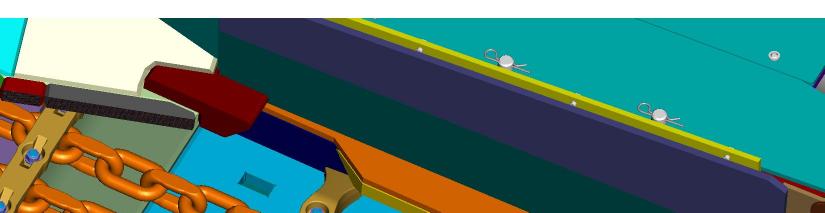

Using sprocket closest to the work area, operate the hydraulic chain tensioner until the flights contact the Chain Locking Device.
