OIL AND WATER PUMP DRIVE

ASSEMBLE OIL AND WATER PUMP DRIVE 1313-16

Tools Needed A 1P520 Driver Group 1

1. Lower the temperature of the bearing for water pump adapter (1). Use tool group (A) and install the bearing in adapter (1). Check the bore in the bearing after assembly. The bore in the bearing must be 75.00 ± 0.06 mm (2.953 ± .002 in.). Install O-ring seal (2) on adapter (1).

2. Put gears (3) and (4) in position on the shaft assembly as shown and install the bolts to hold the unit together.

3. Lower the temperature of the bearing for adapter (5). Make an alignment of the oil hole in the bearing with the oil hole in adapter (5) and use tool group (A) to install the bearing. Make sure the bearing does not extend beyond the surface shown and the inside diameter is 75.00 ± 0.06 mm (2.953 ± .002 in.) after installation.

4. Install O-ring seals (6) and (7) on adapter (5).

5. Put adapter (5) in position on shaft assembly (8) and install washers (9) to hold the unit together.

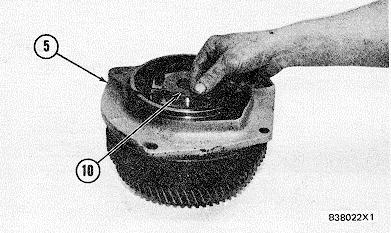

6. Install the oil pump O-ring seal (10) on adapter (5). end by: a) install oil and water pump drive
