ACCESSORY DRIVE (FRONT)

ASSEMBLE ACCESSORY DRIVE (FRONT) 1207-16

Tools Needed A 1P520 Driver Group 1

1. Make an alignment of the oil hole in the bearing and the oil hole in adapter (1). Use a press and tool group (A) and install the bearing in adapter (1). Check the bore in the bearing after assembly. The bore in the bearing must be 75.000 ± 0.055 mm (2.9528 ± .0022 in.).

2. Install the two O-ring seals in adapter (1).

3. Put clean engine oil on the bearing and install shaft (3) in adapter (1). Install retainer washer (2) to hold the shaft and adapter together.

4. Put gear (4) in position on shaft (3) and install the bolts to hold them together.

5. Make an alignment of the oil hole in the bearing and the oil hole in adapter (5). Use a press and tool group (A) and install the bearing in adapter (5). Check the bore in the bearing after assembly. The bore in the bearing must be 75.000 ± 0.055 mm (2.9528 ±.0022 in.).

6. Use tool group (A) to install the seal in adapter (5). Make sure the lip of the seal is toward the bearing as shown.

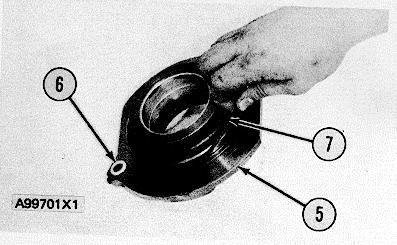

7. Install 0-ring seals (6) and (7) on adapter (5) and put clean engine oil on them. end by: a) install accessory drive (front)
