Flywheel Housing Bore

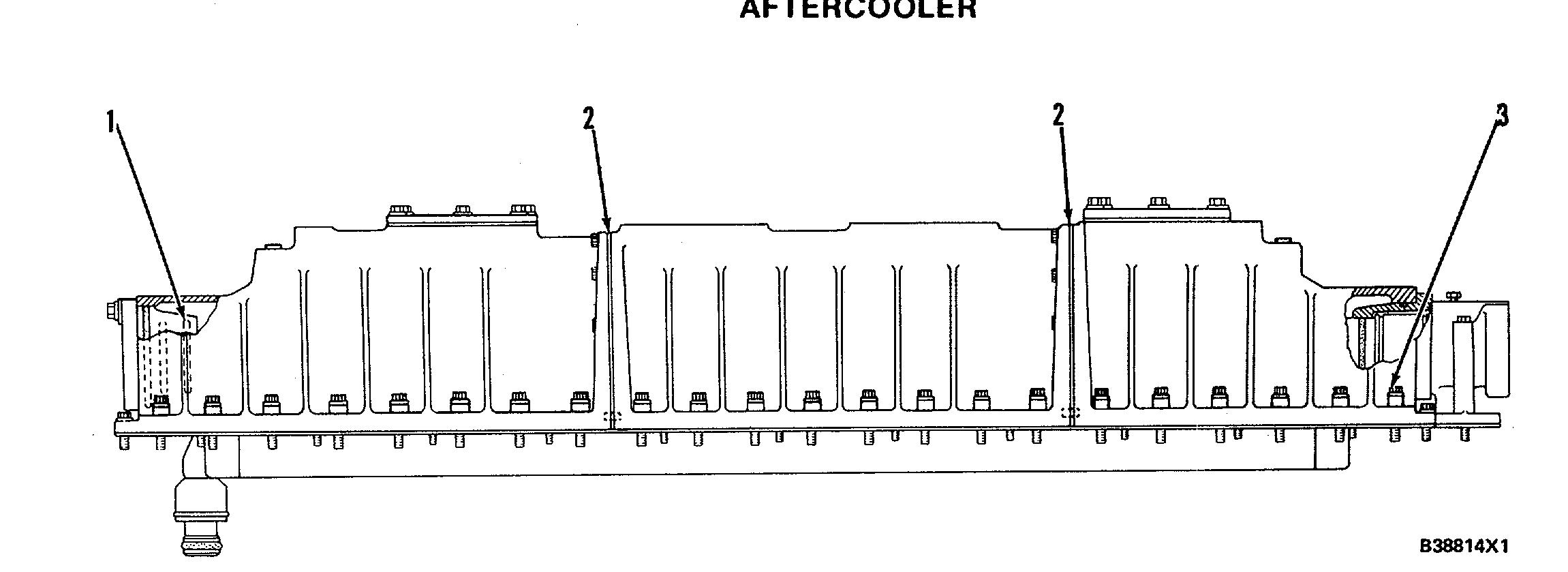

AFTERCOOLER
(3512 AFTERCOOLER ILLUSTRATED)
(1) Put clean engine oil or glycerin on all O-ring seals and in their bores at assembly.
(2) Cut the ends of the gaskets even with the bottom of the housings for assembly.
(3) Torque for all the bolts that hold the aftercooler housings to the cylinder block........55 ±7 N•m (41 ±5 lb. ft.)

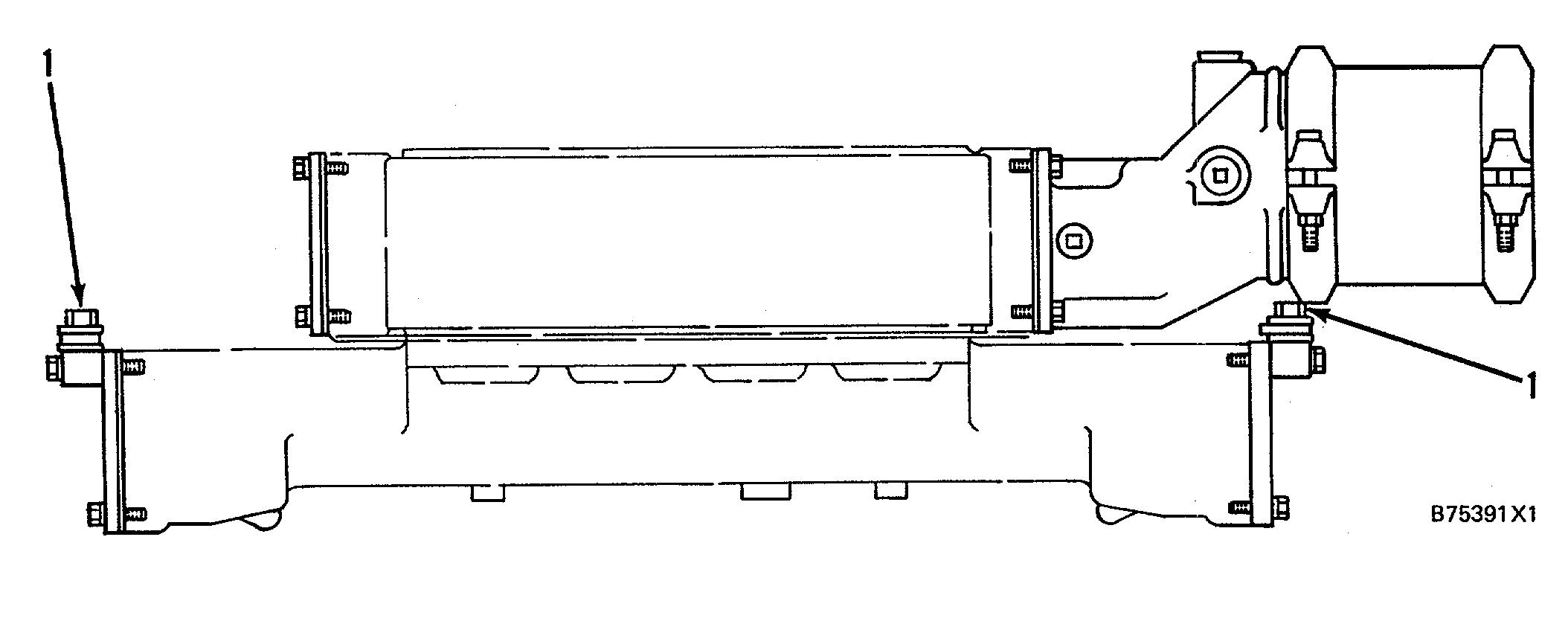

WATER CONNECTION GROUP - OUTLET
(1) Tighten bolts to a torque of...135 ±15 N•m (100 ± 11 lb. ft.)
