OIL PUMP (2W5477)
Rotation of drive gear (as seen from drive end) ........................Clockwise

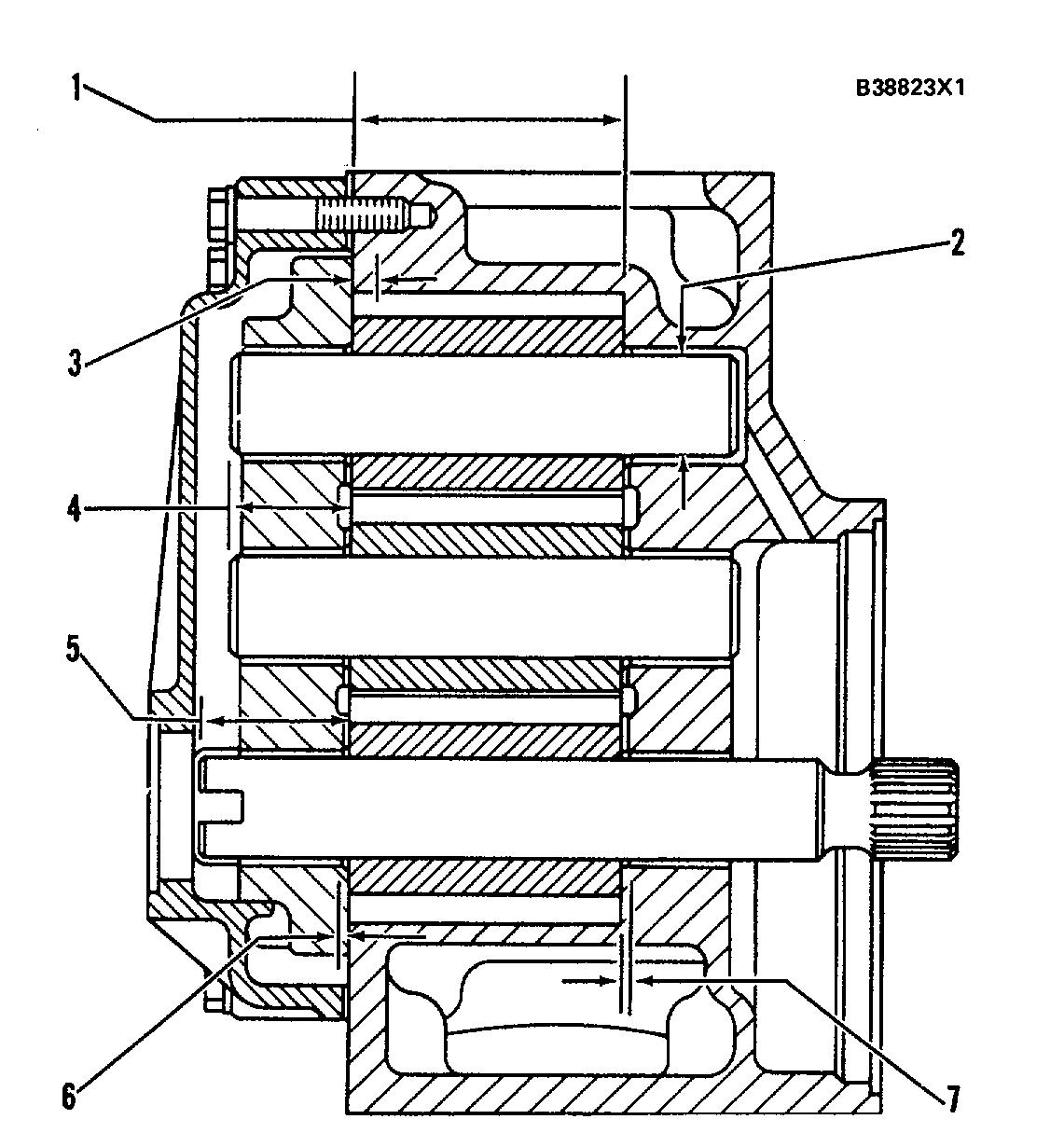

(1) Length of gears (new)............... 84.000 ±0.015 mm (3.3071 ±.0006 in.)
Depth of bores for gears (new) .......84.150 ±0.020 mm (3.3130 ±.0008 in.)
(2) Diameter of gear shafts (new)....31.742 ±0.008 mm (1.2497 ±.0003 in.) Bore in bearings for gear shafts (after assembly).......31.811 ±0.013 mm (1.2524 ±.0005 in.) (3) Distance dowels extend from cover......6.0 ±0.5 mm (.24 ±.02 in.) (4) Distance from the end of the idler shafts to gear faces..........34.0 ±0.5 mm (1.34 ±.02 in.) (5) Distance from the end of the drive shaft to gear face....47.0 ±0.5 mm (1.85 ±.02 in.) (6) Depth that bearings are installed in cover .......1.5 ±0.5 mm (.06 ±.02 in.) (7) Depth that bearings are installed in housing.......1.5 ± 0.5 mm (.06 ±.02 in.)

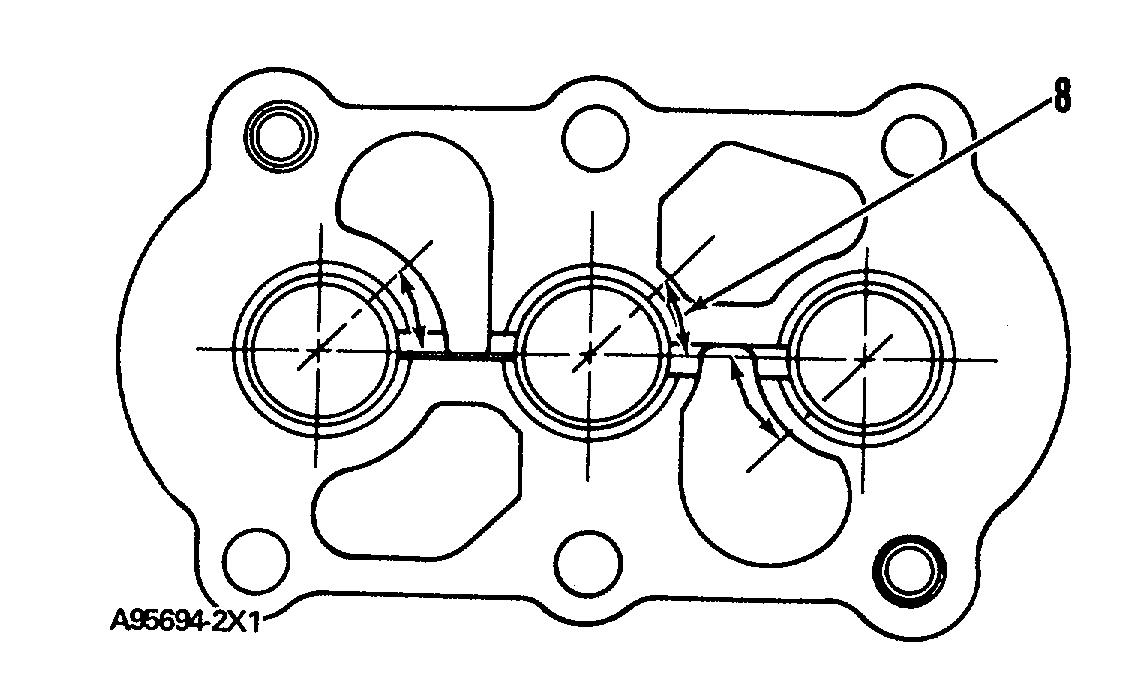

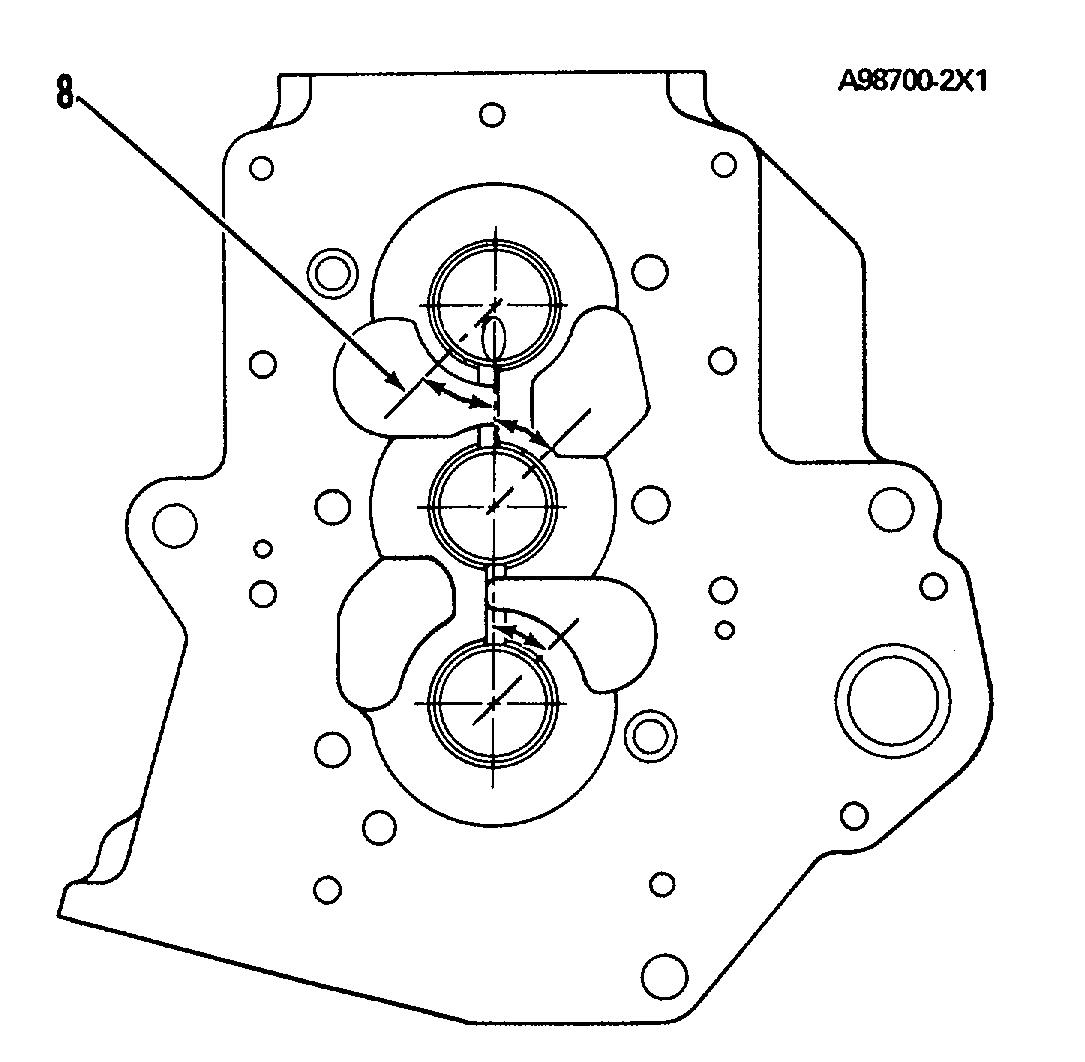

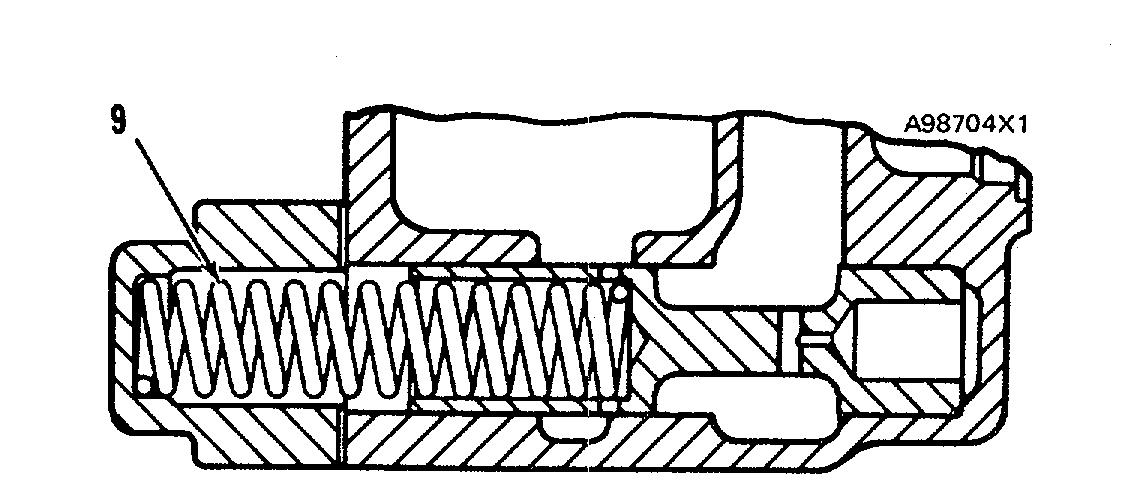

(8) The location of each bearing junction must be as shown. Position bearing junctions from the centerline through the bearing bores to an angle of..45 ±15° (9) 2S2760 Spring (oil pressure relief):
Length under test force...... 117.9 mm (4.64 in.) Test force........490 ±27 N (110 ±6 lb.) Free length after test....................52.9 mm (6.02 in.) Outside diameter. ........... 27.00 mm (1.063 in.)
