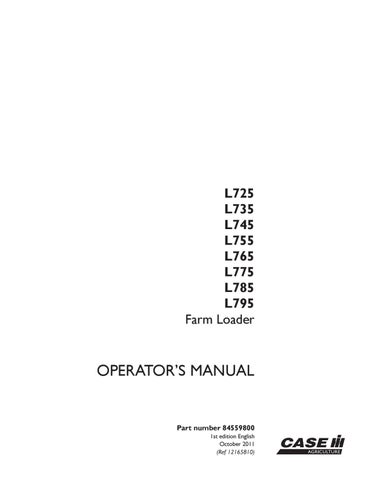

Case IH Tractor L725,735,745,755,765,775,785,795 Farm Loader Operator's Manual_84559800

L725 L735 L745 L755 L765 L775 L785 L795 Farm Loader

OPERATOR’S MANUAL

Part number 84559800 1st edition English October 2011 (Ref 12165810)

Contents 1 GENERAL INFORMATION Note to the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

International symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Machine orientation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1 1-3 1-4 1-5 1-6

2 SAFETY INFORMATION Safety rules and signal word definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Safety rules - Personal safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2 Personal safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Safety Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Foreword - Ecology and the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11

3 OPERATING INSTRUCTIONS COMMISSIONING THE UNIT Machine preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Hydraulic controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Installing the loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Removing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8 Re-installing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12

4 WORKING OPERATIONS GENERAL INFORMATION Operating the loader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Soft-ride loader suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5 Remove bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Install bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Remove bucket or attachment (EURO Style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 Install bucket or attachment (EURO style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 Operation with grapple fork attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12 Operation with H.D. bale grip. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14

5 MAINTENANCE GENERAL INFORMATION Torque - Minimum Tightening Torques for Normal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Torque - Standard torque data for hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 Lubrication points. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Recommended lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10

6 TROUBLESHOOTING SYMPTOM(S) Basic instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 HITCH AND WORKING TOOL - Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

7 SPECIFICATIONS Loader Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

8 ACCESSORIES Optional attachments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

9 FORMS AND DECLARATIONS Delivery report - Owner Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1 Delivery report - Dealer Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

1 - GENERAL INFORMATION

1 - GENERAL INFORMATION Note to the Owner This manual contains information concerning the adjustment and maintenance of your new equipment. You have purchased a dependable machine, but only by proper care and operation can you expect to receive the performance and long service built into this equipment. Please have all operators read this manual carefully and keep it available for ready reference.

Your CASE IH AGRICULTURE dealer will instruct you in the general operation of your new equipment. (Refer to the 'Delivery Report' at the back of this manual.) Your dealer's staff of factory-trained service technicians will be glad to answer any questions that may arise regarding the operation of your machine. Case IH Max Service is also available.

Call 1-877-4CASEIH (1-877-422-7344) or email maxservice.na@cnh.com.

Your CASE IH AGRICULTURE dealer carries a complete line of genuine CASE IH AGRICULTURE service parts.

These parts are manufactured and carefully inspected to insure high quality and accurate fitting of any necessary replacement parts. Be prepared to give your dealer the model and product identification number of your new equipment when ordering parts. Locate these numbers now and record them below. Refer to the 'General Information' section of this manual for the location of the model and product identification numbers of your machine.

PLEASE RECORD THE FOLLOWING INFORMATION

Loader Model Product Identification Number (PIN) Date Purchased Attachment Model Attachment Model

This is the safety alert symbol. It is used with and without signal words to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury.

WARNING Illustrations in this manual may show protective shielding open or removed to better illustrate a particular feature or adjustment.

Replace all shields before operating the machine.

Failure to comply could result in death or serious injury.

W0012A

IMPROVEMENTS CNH America LLC is continually striving to improve its products. We reserve the right to make improvements or changes when it becomes practical and possible to do so, without incurring any obligation to make changes or additions to the equipment sold previously.

1-1

1 - GENERAL INFORMATION

Intended use The loader was designed to mount on CASE IH AGRICULTURE approved tractors. The loader is designed to load and move materials with a variety of buckets and approved CASE IH AGRICULTURE attachments.

DO NOT use this machine for any purpose or in any manner other than as described in the manual, decals, or other product safety information provided with the machine. These materials define the machine’s intended use.

Use only approved accessories and attachments designed for your machine. Consult your dealer on changes, additions or modifications that may be required for your machine. Do not make any unauthorized modifications to your machine.

Installation and operation instructions for certain hydraulic valve sets, attachments and accessories may not be included in this operator’s manual. Use the publication received with the specific item or in the case of hydraulic valves, refer to the tractor operator’s manual.

NOTICE: Loader frames are designed for specific tractor models. Do not install a loader frame on a different model than specified, without obtaining approval from CNH America LLC.

Operator’s age All persons who will be operating this machine shall possess a valid local vehicle operating permit and/or other applicable local age work permits.

WARNING IMPROPER OPERATION OF THIS MACHINE CAN CAUSE DEATH OR SERIOUS INJURY. MAKE SURE THAT EVERY OPERATOR: -is instructed in the safe and proper use of this machine.

-reads and understands the operator's manual for this machine.

-reads and understands ALL safety signs on the machine.

Failure to comply could result in death or serious injury.

W0188A

Read and thoroughly understand this manual before operating this machine. If you are an inexperienced operator, study this manual and receive operating instructions from an experienced operator. Your dealer can assist you in learning machine operation and show you proper operating procedures. Keep this manual readily available, preferably with the machine. If the original manual is damaged, order a new one from your dealer.

1-2

1 - GENERAL INFORMATION

International symbols As a guide to the operation of the machine, various universal symbols have been utilized on the instruments, controls, switches, and fuse box. The symbols are shown below with an indication of their meaning.

Thermostart starting aid

Radio

PTO

Position Control

Alternator charge

Keep alive memory

Transmission in neutral

Draft Control

Fuel level

Turn signals

Creeper gears

Accessory socket

Automatic Fuel shut-off

Turn signals -one trailer

Slow or low setting

Implement socket

Engine speed (rev/min x 100)

Turn signals -two trailers

Fast or high setting

%age slip

Ground speed

Hitch raise (rear)

Differential lock

Hitch lower (rear)

Hours recorded Engine oil pressure

Front windscreen wash/wipe Rear windscreen wash/wipe

Engine coolant temperature

Heater temperature control

Rear axle oil temperature

Hitch height limit (rear)

Coolant level

Heater fan

Transmission oil pressure

Hitch height limit (front)

Tractor lights

Air conditioner

FWD engaged

Hitch disabled

Headlamp main beam

Air filter blocked

FWD disengaged

Hydraulic and transmission filters

Headlamp dipped beam

Parking brake

Warning!

Remote valve extend

Work lamps

Brake fluid level

Hazard warning lights

Remote valve retract

Stop lamps

Trailer brake

Variable control

Remote valve float

Horn

Roof beacon

Pressurised!

Open carefully

Warning !

Corrosive substance

1-3

Malfunction!

See Operator's Manual Malfunction! (alternative symbol)

1 - GENERAL INFORMATION

Product Identification Product identification plate A product identification plate (1) is located on the inside of the left-hand loader arm.

20105780

1

The identification numbers on this plate are important in the event that your loader should require future service.

The plate specifies: Model, Product Identification Number and Production Date.

The loader model, product identification number (PIN) and production date, must always be quoted during service questions or when spare parts are needed.

CIH SN PLATE

1-4

2

1 - GENERAL INFORMATION

Machine orientation Alignment reference In this manual, references to right-hand and left-hand are consistently as seen from the operator’s seat when facing forwards.

NOTE: Some illustrations in this manual may show a different model of tractor or loader, compared with your loader. The same information applies to your equipment unless otherwise specified.

93105807

Left-hand view

1-5

1

1 - GENERAL INFORMATION

Definition Description 3rd function •

Optional hydraulic function for operating the attachment hydraulics.

Bucket level indicator •

Device that indicates the angular position of the implement during lifting and lowering movements.

Control valve •

Valve designed for controlling the operation of the loader.

Central control valve •

Central distribution valve, mounted on the loader cross tube which has the capability to accommodate hydraulic options.

“Quick Connect” (Multi Coupler Fast Snap Style) •

Multi port hydraulic connection for coupling and uncoupling the loader’s hydraulics.

Hose kit •

Hoses and hydraulic components for connecting the loader to the tractor's original remote valve.

Soft-ride loader suspension •

Load damper, improves driver comfort and reduces stress on the tractor and loader when driving on rough surface

SSL “Quick Attach” •

Attachments and loader attaching plate that is compatible with approved skid steer loader attachments.

EURO “Quick Attach” •

Attachments with hooks and loader tool carrier connection system. Designed for international standard ISO23206.

1-6

2 - SAFETY INFORMATION

2 - SAFETY INFORMATION Safety rules and signal word definitions Personal safety This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible death or injury.

Throughout this manual and on machine decals, you will find the signal words DANGER, WARNING, and CAUTION followed by special instructions. These precautions are intended for the personal safety of you and those working with you.

Read and understand all the safety messages in this manual before you operate or service the machine.

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. The color associated with DANGER is RED. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

The color associated with WARNING is ORANGE. CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. The color associated with CAUTION is YELLOW.

FAILURE TO FOLLOW DANGER, WARNING, AND CAUTION MESSAGES COULD RESULT IN DEATH OR SERIOUS INJURY. Machine safety NOTICE: Notice indicates a situation which, if not avoided, could result in machine or property damage. The color associated with Notice is BLUE. Throughout this manual you will find the signal word Notice followed by special instructions to prevent machine or property damage. The word Notice is used to address practices not related to personal safety.

Information NOTE: Note indicates additional information which clarifies steps, procedures, or other information in this manual.

Throughout this manual you will find the word Note followed by additional information about a step, procedure, or other information in the manual. The word Note is not intended to address personal safety or property damage.

2-1

2 - SAFETY INFORMATION

Safety rules - Personal safety Carefully study these precautions, and those included in the external attachment operators manual, and insist that they be followed by those working with and for you.

1.

Thoroughly read and understand this manual and the attachment Operator’s Manual before operating this or any other equipment.

2.

Be sure all people and pets are clear of the machine before starting. Sound the horn, if equipped, three times before starting engine.

3.

Only the operator should be on the machine when in operation. Never allow anyone to climb on to the machine while it is in motion. If the machine is equipped with an Instructors Seat, this must only be used for training purposes. Passengers must not be allowed to use the Instructors Seat.

4.

5.

Keep all shields in place. Never work around the machine or any of the attachments while wearing loose clothing that might catch on moving parts.

bility. This is especially important when operating in hilly conditions or/when using heavy attachments.

9.

Always lower the attachment, shut off the engine, set the parking brake, engage the transmission gears, remove the key and wait for all machine movement to stop before leaving the operators platform.

10.

If the attachment or machine should become obstructed or plugged; set the parking brake, shut off the engine and remove the key, engage the transmission gears, wait for all machine or attachment motion to come to a stop, before leaving the operators platform to removing the obstruction or plug.

11.

Never disconnect or make any adjustments to the hydraulic system unless the machine and/or the attachment is lowered to the ground or the safety lock(s) is in the engaged position.

12.

Use of the flashing lights is highly recommended when operating on a public road.

13.

When transporting on a road or highway, use accessory lights and devices for adequate warning to the operators of other vehicles. In this regard, check local government regulations. Various safety lights and devices are available from your CASE IH AGRICULTURE dealer.

14.

Practice safety 365 days a year.

15.

Keep all your equipment in safe operating condition.

16.

Keep all guards and safety devices in place.

17.

Always set the parking brake, shut off the engine and remove the key, engage the transmission gears, wait for all machine or attachment motion to come to a stop, before leaving the operators platform to service the machine and attachment.

Observe the following precautions whenever lubricating the machine or making adjustments.

•

Disengage all clutching levers or switches.

•

Lower the attachment, if equipped, to the ground or raise the attachment completely and engage the cylinder safety locks. Completing these actions will prevent the attachment from lowering unexpectedly.

•

Engage the parking brake.

•

Shut off the engine and remove the key.

•

Wait for all machine movement to stop before leaving the operators platform.

6.

Always keep the machine in gear while travelling downhill.

18.

7.

The machine should always be equipped with sufficient front or rear axle weight for safe operation.

Remember: A careful operator is the best insurance against an accident.

19.

8.

Under some field conditions, more weight may be required at the front or rear axle for adequate sta-

Extreme care should be taken in keeping hands and clothing away from moving parts.

2-2

2 - SAFETY INFORMATION

Personal safety

A careful operator is the best operator. Most accidents can be avoided by observing certain precautions. To help prevent accidents, read the following precautions before operating this equipment. Equipment should be operated only by those who are responsible and instructed to do so.

Carefully review the procedures given in this manual with all operators. It is important that all operators be familiar with and follow safety precautions.

General

The loader

1.

Read the Operator's Manual carefully before using the tractor or loader. Lack of operating knowledge can lead to accidents.

1.

Improper use of a loader can cause serious injury or death.

2.

2.

Replace damaged or illegible safety decals. See the Specifications section of this manual for required decals.

Do not lift or carry anybody on the loader or in the bucket or attachment.

3.

Never allow anyone to get under the loader bucket or reach through the lift arms when the bucket is raised.

4.

Do not walk or work under a raised loader, bucket, or attachment unless it is securely blocked or held in position.

5.

Avoid overhead wires and obstacles when the loader is raised. Contacting electrical lines can cause electrocution.

6.

Make sure all dismounted loaders are on a hard, level surface.

7.

Do not repair, remove, or replace any parts of the loader while it is in the dismounted position.

3.

Operate the tractor and loader only from the operator's seat.

The tractor 1.

Use an approved roll bar and seat belt for safe operation. Overturning a tractor without a roll bar can result in death or injury. If your tractor is not equipped with a roll bar and seat belt, see your tractor dealer.

2.

Equip your tractor with FOPS (Falling Object Protective Structure) and seat belts before installing or operating the loader.

3.

Use the loader only on a tractor with the ROPS installed. Whenever possible, operate the tractor and loader with the ROPS in the upright and locked position and the seat belt fastened and correctly adjusted. When operating in restricted overhead environment with the ROPS folded down, do not wear the seat belt. Always return the ROPS to the upright and locked position as soon as operating conditions permit.

4.

Add the recommended wheel ballast and/or rear weight as recommended in the operator’s manual to provide good stability.

5.

Move the wheels to the tractor manufacturer's widest recommended settings to increase stability.

6.

Move and turn the tractor at low speeds.

Operating the loader 1.

It is the loader owner's responsibility to be certain that anyone operating the loader reads this manual first to be aware of the safe way of operating the loader.

2.

Exercise caution when operating the loader with a raised, loaded bucket or fork.

3.

Avoid loose fill, rocks, and holes. They can be dangerous for loader operation or movement.

4.

Use care to maintain proper stability when operating on steep grades. Always carry the bucket in the lowest position possible.

5.

Allow for the loader length when making turns.

6.

Stop the loader arms gradually when lowering or lifting.

7.

Use caution when handling loose or shiftable loads.

2-3

2 - SAFETY INFORMATION

8.

Carry the bucket at a low position during transport for better visibility.

9.

When parking or servicing, lower the bucket to the ground, stop the engine, and set the parking brakes before leaving the tractor seat.

10.

Operate the loader controls only when properly seated at the controls.

11.

Using front end loaders without special attachments for handling large heavy objects such as large round or rectangular bales, logs, and oil drums is NOT RECOMMENDED.

12.

Handling large heavy objects can be extremely dangerous due to:

13.

14.

•

danger of rolling the tractor over.

•

danger of upending the tractor.

•

danger of the object rolling or sliding down the loader arms onto the operator.

Maintenance 1.

When servicing or replacing the pins in the cylinder ends, bucket, etc., always use a drift and hammer. Failure to do so could result in injury from flying metal fragments.

2.

Do not modify or alter, or permit anyone else to modify or alter, the loader or any of its components or any loader function without first consulting a CASE IH AGRICULTURE dealer. If you have any questions regarding loader modifications, contact your dealer.

3.

Always wear safety goggles when servicing or repairing the machine.

4.

Escaping hydraulic/diesel fluid under pressure can penetrate the skin, causing serious injury.

If you must perform this sort of work (see #12 above), protect yourself by:

•

DO NOT use your hand to check for leaks.

•

Use a piece of cardboard or paper to search for leaks.

•

Stop the engine and relieve the pressure before connecting or disconnecting the hydraulic or diesel lines.

•

using the proper attachment.

•

never lifting the load higher than necessary to clear the ground when moving.

•

Tighten all connections before starting the engine or pressuring the lines.

•

ballasting the tractor rear to compensate for the load.

•

•

never lifting large objects with equipment that does not have an anti-rollback device.

If any fluid is injected into the skin, obtain medical attention IMMEDIATELY or gangrene may result.

•

moving slowly and carefully, avoiding rough terrain.

5.

Loader lift capacity and break-away capacity diminish as the loader height is increased. Use care not to grasp more material than the loader is designed to handle.

2-4

Do not tamper with the relief valve setting. The relief valve is preset at the factory. Changing the setting can cause overloading the loader and tractor, and serious operator injury may result.

2 - SAFETY INFORMATION

Shutoff mechanism The loader is equipped with a shutoff mechanism (1) located in the area of the hydraulic couplers on the right of the loader.

The handle should be moved to the "closed" horizontal position (2) during service work, or when the loader is left in the lifted position for any length of time for other reasons.

If the loader is equipped with a multi coupler (MC4) (3), open the multi coupler (4) during service work.

77118452

1

76115291

2

WARNING Pressurized system!

DO NOT use the shutoff valve when working on the loader hydraulic cylinders or associated piping. In these cases, you must lower the loader to the ground.

Failure to comply could result in death or serious injury.

W0955A

WARNING Pressurized system!

Before disconnecting the couplers, you must: -lower the connected attachments, -stop the engine, -move the control levers forward and backward to discharge pressure from the hydraulic system.

Failure to comply could result in death or serious injury.

W0389A

This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

Obey all safety messages that follow this symbol to avoid possible injury or death.

2-5

2 - SAFETY INFORMATION

Safety Decals Safety signs are placed on your machine as a guide for your safety. Walk around the machine and note the content and location of these decals before operating your machine Following is a listing of Safety signs and locations. Read and understand them before operating the machine

Safety sign inspection and maintenance: Cleaning Safety signs 1.

Cleaning Safety signs

2.

Use a soft cloth, water, and a gentle detergent.

3.

Do not use solvent, gasoline or other harsh chemicals to clean Safety signs. Solvents, gasoline, and other harsh chemicals may damage or remove Safety signs.

4.

Replace all Safety signs that are damaged, missing, painted over or illegible. See your CASE IH AGRICULTURE dealer for replacement Safety signs.

5.

If a Safety sign is on a part that is replaced, make sure the Safety sign is installed on the new part.

Universal or informational Safety signs Decals which display the “Read Operator’s Manual” symbol are intended to direct the operator to the Operator’s Manual for further information regarding maintenance, adjustments, and/or procedures for particular areas of the machine. When a Safety sign displays this symbol refer to the appropriate page of the Operator’s Manual.

2-6

2 - SAFETY INFORMATION

Loader: DANGER To avoid serious injury or death from electrocution: · Stay Clear of Overhead Electric wires DANGER To avoid serious injury or death from rollovers: · Use ROPS and seat belts at all times. · Add recommended rear ballast. · Do not exceed the load weight limitations stated in the loader Operator's Manual to maintain tractor stability. · Move wheels to widest recommended setting. · Operate tractor at low speeds with loader low to ground.

WARNING To avoid injury or death from falls: Do not work from or allow riders on loader or its attachments.

WARNING To avoid injury or death caused by falling loads: · Do not handle round bales or other large objects with loader unless manufacturer's approved round bale grapple or other approved bale handling equipment is installed. · Lockout optional valve detents. · Do not handle loose or shiftable loads with loader that are not contained in bucket. · Handle raised loads with caution. · Carry loads low.

WARNING · Do not walk or perform service under a raised loader. · Lower loader to ground when parked. · Before servicing adjusting equipment or disconnecting oil lines: a) lower attachment to ground or support loader boom. b) shut off engine and relieve hydraulic pressure. · Observe safety precautions in Loader Operation and Maintenance Manual.

Quantity 1 LDR11134765

2-7

11134765

1

2 - SAFETY INFORMATION

(1) Left-hand side, rear upright.

93105807

2-8

2

2 - SAFETY INFORMATION

WARNING To avoid injury or death from falling attachments, make sure both lock pins are fully engaged and protruding through frame.

Quantity 1 LDR11133557

3

LDR11133557

(2) Left-hand side, attachment plate.

93105807

2-9

4

2 - SAFETY INFORMATION

Lift here.

Quantity 2 LDR1123676

5

LDR1123676

(3) Inside face of tie plates.

93105807

6

Ensure loader attachment latches are fully engaged. .

Quantity 1 LDR11135077

11135077A

7

(4) Center of tool carrier

76115292

2 - 10

8

2 - SAFETY INFORMATION

Foreword - Ecology and the environment Soil, air, and water are vital factors of agriculture and life in general. When legislation does not yet rule the treatment of some of the substances which are required by advanced technology, sound judgement should govern the use and disposal of products of a chemical and petrochemical nature.

NOTICE: The following are recommendations which may be of assistance: •

Become acquainted with and ensure that you understand the relative legislation applicable to your country.

•

Where no legislation exists, obtain information from suppliers of oils, filters, batteries, fuels, antifreeze, cleaning agents, etc., with regard to their effect on man and nature and how to safely store, use and dispose of these substances.

•

Agricultural consultants will, in many cases, be able to help you as well.

HELPFUL HINTS •

Avoid filling tanks using cans or inappropriate pressurized fuel delivery systems which may cause considerable spillage.

•

In general, avoid skin contact with all fuels, oils, acids, solvents, etc. Most of them contain substances which may be harmful to your health.

•

Modern oils contain additives. Do not burn contaminated fuels and or waste oils in ordinary heating systems.

•

Avoid spillage when draining off used engine coolant mixtures, engine, gearbox and hydraulic oils, brake fluids, etc. Do not mix drained brake fluids or fuels with lubricants. Store them safely until they can be disposed of in a proper way to comply with local legislation and available resources.

•

Modern coolant mixtures, i.e. antifreeze and other additives, should be replaced every two years. They should not be allowed to get into the soil but should be collected and disposed of properly.

•

Do not open the air-conditioning system yourself. It contains gases which should not be released into the atmosphere. Your CASE IH AGRICULTURE dealer or air conditioning specialist has a special extractor for this purpose and will have to recharge the system properly.

•

Repair any leaks or defects in the engine cooling or hydraulic system immediately.

•

Do not increase the pressure in a pressurized circuit as this may lead to a component failure.

•

Protect hoses during welding as penetrating weld splatter may burn a hole or weaken them, allowing the loss of oils, coolant, etc.

2 - 11

2 - SAFETY INFORMATION

2 - 12

3 - OPERATING INSTRUCTIONS

3 - OPERATING INSTRUCTIONS COMMISSIONING THE UNIT

Machine preparation Tractor/loader stability WARNING Roll-over hazard!

Before operating a tractor with a loader, ballast the tractor-loader combination so that a minimum of 25 percent of the total weight is on the rear wheels, with the rated load in the bucket in maximum forward position.

Failure to comply could result in death or serious injury.

W0291A

Determination of Ballast The following information is according to ASAE EP562 March 2005.

The following information is provided to reduce risk of machine overturning during normal operation. Ballast tractor to meet requirements outlined below.

1.

Place mass (weight) equivalent to loader lift capacity (1) located 800 mm (31.5 in) ahead of bucket pivot.

2.

Raise loader until bucket pivot is level with loader arm pivot (bucket in farthest forward position).

3.

Apply rear wheel ballast and/or ballast box until a minimum of 25 % of total weight is on rear axle.

Tractor must be on level ground while measuring axle load. Total weight includes ballasted tractor, loader, bucket and payload (1).

93102594

(F) Front

NOTE: When using loader for dedicated applications, operator may determine appropriate ballast, based on maximum load to be carried.

NOTE: Tractor/loader with high center gravity or unusual configuration may require wider minimum tread setting to achieve same level of stability.

3-1

1

(R) Rear

3 - OPERATING INSTRUCTIONS

Minimum tread settings WARNING Overturning hazard!

The machine can overturn if its track is too narrow. Increase track width to the maximum for best stability.

Failure to comply could result in death or serious injury.

W0954A

Tread (A) should be set as wide as practical considering the environment of use. Minimum tread settings are recommended to provide static stability on a side slope of 15 ° with loader positioned. Unless otherwise specified by tractor manufacturer, minimum rear tread settings should be selected from Table.

Tractor Mass (Weight) Less than 2250 kg (4960 lb) 2250 - 3650 kg (4960 8046 lb) More than 3650 kg (8046 lb)

93102595

2

Minimum Rear Tread Setting 1575 mm (62 in) 1675 mm (66 in) 1825 mm (72 in)

Ballast recommendation chart

Recommended tractor ballasting

Recommended loader ballast for common tractor / loader combinations are listed in ballast chart. Recommendations are intended as a starting point only. Specific tractor configurations may require more or less ballast than that shown in the chart.

Tractor and Loader Model Farmall 65C-75C with L725 Farmall 85U95Uwith L735 Farmall 95 with L735 NA MAXXUM (4 cyl) with L745 MAXXUM (6 cyl)with L755 Puma (Short Wheel Base) with L765 Puma (Long Wheel Base) with L775 Puma (Long Wheel Base) with L785 Magnum (Mid Range) wiith L785 Magnum with L795

NOTICE: Always confirm correct ballasting by weighting the fully loaded tractor.

Rear ballast Rear Ballast (NSL) (SL) 770 kg (1697 lb) 980 kg (2160 lb) 380 kg (840 lb)

530 kg (1170 lb) 620 kg (1367 lb)

650 kg (1443 lb) 770 kg (1697 lb) 1000 kg (2204 lb) 1110 kg (2447 lb) 980 kg (2160 lb) 1370 kg (3020 lb)

NA kg (NA lb)

370 kg (815 lb)

NA kg (NA lb)

1590 kg (3505 lb)

NA kg (NA lb)

780 kg (1719 lb)

NA kg (NA lb)

0 kg (0 lb)

NOTE: NSL — Non Self Leveling SL — Self Leveling 3-2

400 kg (882 lb)

3 - OPERATING INSTRUCTIONS

Hydraulic controls Tractor/Loader Hydraulic Controls The loader’s hydraulic system can be connected to the tractor hydraulic system in one of three alternate ways.

Alternative 1 The first alternative is that the tractor’s hydraulic system is connected to the loader’s hydraulic control valve. A joystick control handle located beside the operator’s seat, controls the loader control valve via two control cables.

73115282

1

73115283

2

73115284

3

The joystick control can be locked in the neutral position to prevent inadvertent operation of the loader. Lock the joystick by moving the tab on the front of the joystick housing to the right. Check that the joystick is locked by trying to move the joystick handle for and aft and left and right. The handle should not be able to move If the handle will not lock contact your dealer.

3-3

3 - OPERATING INSTRUCTIONS

Alternative 2 The second alternative is to use the tractors mid mount valve and joy stick control, to control the movements of the loader.

NOTE: The control valve in the illustration may not represent the control valve on your tractor. Refer to your tractor operator’s manual to confirm the operation of the control for your tractor application.

73115285

4

Alternative 3 The third alternative is to use the tractor’s electronic hydraulic joystick control valve. This joystick control is mounted beside the operator’s seat. The joystick control (1) controls the rear remote couplers or a mid-mount loader valve via an electronic connection.

NOTE: The control valve in the illustration may not represent the control valve on your tractor. Refer to your tractor operator’s manual to confirm the operation of the control for your tractor application.

3-4

93110356A

5

3 - OPERATING INSTRUCTIONS

Third Hydraulic Function The loader may be equipped with a optional third hydraulic function (1).

76115288

Alternative 1 (Diverter Valve System) A solenoid valve is installed to the central control valve, that is located on the front cross tube of the loader. The diverter valve system is only compatible with a two function mechanical control valve.

Alternative 2 (Live third function) The control valve on some model loaders have the provision to add a “Live Third Function� valve slice to the control valve.

NOTE: Consult your dealer to which third function system is compatible with your loader control valve.

3-5

6

3 - OPERATING INSTRUCTIONS

Installing the loader CAUTION Pinch hazard!

The locking wheel is spring-loaded. Handle carefully.

Failure to comply could result in minor or moderate injury.

C0083A

NOTICE: The accessory box markings coincide with the loader and the subframe. The decal installed on the accessory sack for the subframe contains information about the number of packages and the part numbers of the components, in addition to information about the tractor model. - Check that these coincide.

Read through the installation instructions which accompany each kit before making any attempt at installation.

Install Quick Lock on the left and right bearing boxes. Install stop (A) on the left and right subframes.

Install the subframe set and connect the loader valve or hose kit to the tractors hydraulics in accordance with the installation instructions.

93728690

1

931969287

2

Lift the loader up onto the subframe. Holes for attaching the lifting hooks are found on the inside of the tie plates.

Make sure that the lock handle on Quick Lock is pulled out and rests on the heel. When the bearing box passes the stop, the Quick Lock system will lock the loader to the subframe. Make sure that the green end of the lock pin is visible on the inside of both the left and right bearing boxes.

Connect the hoses to the hydraulic source as shown in the illustration.

The control joystick must be connected to the valve so that the loader is raised when the joystick is moved rearwards.

76115290

3-6

3

3 - OPERATING INSTRUCTIONS

Install the position indicator The position indicator can be mounted on the left or right bucket/attachment ram. Set your attachment in a level position and adjust your indicator (A) to reference point (B) on the indicator rod.

Check that the indicator moves freely and adjust as needed.

NOTICE: Incorrect installation can cause damage to the indicator.

86064677

3-7

4

3 - OPERATING INSTRUCTIONS

Removing the loader WARNING Tip-over hazard!

Always have an authorized bucket or heavy attachment mounted to the loader when the loader is removed from the tractor. Pallet fork, bale spear, or similar attachments are too light to safely counterbalance the loader boom arms when the loader is removed from the tractor.

Failure to comply could result in death or serious injury.

W0022A

NOTICE: If loader is equipped with an attachment with a third hydraulic function that is operated with a tractor auxiliary hydraulic circuit, disconnect hoses before removing loader from tractor.

If loader is equipped with electrical control functions disconnect electrical coupler before removing loader from tractor.

1.

Park the tractor and the loader on flat, firm ground.

Shut off the Soft-Ride.

2.

Tip the bucket forwards and lower the loader so that the rear of the bucket is 100 - 150 mm (4 - 6 in) above the ground (A) with the front of the bucket resting on the ground.

3.

93102616

1

93728069

2

Parking stands (1) are located under the front part of the loader arms. Pull up on the top end of the stands to release from the arms and fold them down to the ground. Swing the link down and insert the link in the notched bar inside the stand. Select the notch with the stand resting on the ground.

NOTE: Raise the loader arms slightly if necessary to ease installation of link into notch. Pad on stand should be approximately 50 mm (2 in) from ground with link in the selected notch and front of bucket resting on the ground.

3-8

3 - OPERATING INSTRUCTIONS

4.

Pull out lock handle (A) to unlock the lock pin and turn until the lock handle rests against the base stop (one on each side).

CAUTION Pinch hazard!

The locking wheel is spring-loaded. Handle carefully.

Failure to comply could result in minor or moderate injury.

C0083A

5.

Release the brakes.

6.

Move the control joystick to the lowering position, so that the lifting cylinders are completely retracted.

7.

Roll back the attachment or bucket carefully. This will make the rear of the loader lift, and come loose and lift upward from the subframe.

8.

Stop the tractor and relieve the oil pressure to the lift cylinders, using the control valve.

9.

Disconnect the hose connection(s) and install dust cover on the couplings.

10.

Reverse the tractor carefully until it is completely clear from the loader.

NOTICE: Make sure that you position the hoses in the hose holder on the right-hand boom arm so that they do not catch on the tractor.

3-9

93728690

3

93728069

4

3 - OPERATING INSTRUCTIONS

Re-installing the loader DANGER

CAUTION

Unexpected machine movement!

Air in the hydraulic system could cause unexpected machine movement. Purge the air from the hydraulic system after any hydraulic system maintenance or repair.

Failure to comply will result in death or serious injury.

Pinch hazard!

Always use suitable tools to align mating parts. DO NOT use your hand or fingers.

Failure to comply could result in minor or moderate injury.

C0044A

D0054A

WARNING Tip-over hazard!

Always have an authorized bucket or heavy attachment mounted to the loader when the loader is removed from the tractor. Pallet fork, bale spear, or similar attachments are too light to safely counterbalance the loader boom arms when the loader is removed from the tractor.

Failure to comply could result in death or serious injury.

W0022A

NOTICE: To prevent damage to tractor, keep it centered between loader arms during installation.

Drive the tractor forwards carefully until the subframe slowly enters the bearing boxes.

Connect the hydraulics. If there is any difficulty in coupling the quick release couplings, this will be because the oil pressure has not been relieved.

NOTICE: Never use force on quick release couplings by striking the valve ball. This can damage it so that coupling will not open when coupled together. (Oil can only pass in one direction.) Make sure that couplers are connected to their corresponding point to complete the hydraulic circuit.

If your loader is fitted with a Quick Release Coupler system, clean the connection surfaces prior to aligning the guide pin and making the connection.

7286922

1

72869931

2

Extend the bucket cylinders (dump) to enable the stationary pins to engage and seat into saddles of subframe uprights. (Rear of bucket will come off ground, loader will pivot about parking stands and rear of loader will lower).

3 - 10

3 - OPERATING INSTRUCTIONS

By extending the lift cylinders, the boom connecting system will be engaged by contacting the latch bolts on the subframes. When the end of the locking pin is visible on the inside of the bearing boxes, the loader is locked in place.

1969728A

3

1969728B

4

1969728C

5

CAUTION Avoid injury and/or property damage!

Make sure the loader is fully secured by confirming that the green end of the locking pins are visible on both right-hand and left-hand bearing boxes, as viewed from the inside of the loader upright.

Failure to comply could result in minor or moderate injury.

C0084B

Fold the parking stands and secure in the storage position.

3 - 11

3 - OPERATING INSTRUCTIONS

Check list When the loader has been installed - check carefully that everything works before it is taken into service. The following points must always be checked. Mark them off and do the necessary adjustments if necessary.

1.

Check that everything has been installed in accordance with the installation instructions.

2.

Check that a counterweight is fitted, which is appropriate for the bucket and attachment application rating.

3.

Check that all bolts are tightened.

4.

Check that the front wheels clear the loader and subframe, during full wheel lock and oscillation of the front axle - if this is not the case, oscillation stops or limitation of steering lock must be installed.

5.

Check that the locking pins are secured on both the left and right sides of the loader, then test operate the loader.

6.

Check that no oil leakage occurs.

7.

Operate all loader functions several times to remove air from the system.

8.

Check the tractor oil level - top off as necessary.

9.

Check that the implement lock pins engage when connecting an implement to the loader face plate or tool bar, by pressing the front section of the implement against the ground.

10.

Check that the loader does not have any visible defects.

3 - 12

4 - WORKING OPERATIONS

4 - WORKING OPERATIONS GENERAL INFORMATION

Operating the loader Loader-mounted valve (Mechanical Cable Control) NOTICE: Tractors with front axle suspension. The loader causes increased wear on the components in the front suspension. Always lock out the front suspension if this facility is available. Read the tractors instruction manual.

Raise/lower the loader Move the lever backwards (1) to lift the loader arm.

Move the lever forwards (2) to lower the loader arm with constant pressure.

9369728C

1

9369728B

2

9369728A

3

NOTICE: Tractors with front axle suspension. The loader causes increased wear on the components in the front suspension. Always lock out the front suspension if this facility is available. Read the tractors instruction manual.

NOTE: All controls (except for float position) return to neutral when the lever is released.

Loader float position Move the lever to the float position (3) (does not apply to E-command, electronic control valve) and release the lever to lower the loader arm without any downward pressure.

To cancel the float function, move the lever backwards somewhat (out of the float position) and release it.

NOTE: Tractors with electronic joystick, refer to the tractor’s operator’s manual .

Attachment roll back/dump Move the lever left (4) to roll the attachment back. Move the lever right (5) to dump the attachment.

4-1

4 - WORKING OPERATIONS

Live 3rd hydraulic function The live third hydraulic function is controlled by a toggle switch (1) on the side of the joystick.

Press and hold the top or bottom side of the loader third hydraulic function switch (1) to open or close the grapple.

NOTE: Consult with your dealer, to the identify the style system that is on your loader.

93110356

4

76115289

5

93105817

6

Selecto 3rd hydraulic function (Diverter Valve) On tractors with a diverter valve, press the loader third hydraulic function button (1) and move the joystick to the right to open the hydraulic implement. Press the loader third hydraulic function button (1) and move the joystick to the left to close the hydraulic implement.

NOTE: Consult with your dealer, to the identify the style system that is on your loader.

Loader with mechanical self-leveling Parallel links (1) keep the base of the attachment in the same angular position during the entire lift/lowering movement.

Loader without mechanical self leveling The angle of the implement changes in the relationship to the ground during the entire lift/lowering movement. of the loader.

4-2

4 - WORKING OPERATIONS

Loader operation DANGER Electrocution hazard!

Contact with overhead power lines can cause severe electrical burns or death from electrocution. Make sure there is enough clearance between equipment and overhead power lines.

Failure to comply will result in death or serious injury.

D0024A

WARNING Hazard to bystanders!

Make sure the area surrounding the machine is clear of all persons before starting the engine.

Failure to comply could result in death or serious injury.

W0090A

CAUTION Unexpected machine movement!

1. Disengage all drives.

2. Engage parking brake.

3. Lower all attachments to the ground, or raise and engage all safety locks.

4. Shut off engine.

5. Remove key from key switch.

6. Switch off battery key, if installed.

7. Wait for all machine movement to stop.

Failure to comply could result in minor or moderate injury.

C0038A

When operating on a slope, approach load uphill, fill and back downhill. Operating sideways on a slope may cause tractor to tip.

Bucket is filled most effectively by driving straight into stock pile with bucket level. Raise loader slightly while forcing bucket into pile to tear material loose for easier filling. Then roll bucket back to contain material.

NOTE: Remove top layers first when working in deep material.

908991969

4-3

7

4 - WORKING OPERATIONS

Back away from stock pile, lowering loader slowly. Sudden stops when lowering bucket quickly can result in damage to loader and/or tractors hydraulic system.

90899769

8

989972869

9

Raise loader while approaching vehicle so bucket does not strike vehicle when bucket is dumped. Release load from a low position for better loading and less spillage.

NOTICE: Do not use loader as a battering ram.

When back-grading, angle the bucket downward to allow cutting edge to contact ground and prevent wear on bucket rear face.

NOTICE: To prevent damage to loader, do not back grade material with bucket in the full dumped position. Bottom of bucket should be no more than 45 ° (A) from the ground during back grading.

93105776

4-4

10

4 - WORKING OPERATIONS

Soft-ride loader suspension NOTICE: Always lower the loader to the ground before activating/deactivating the "Soft-Ride" function.

Description The soft ride suspension dampens the shock loads of the loader when driving on uneven ground. It consists of two or three accumulators. .

Soft-Ride can be engaged during most tasks, but can be disengaged when precision operation with exact control of the loader is required.

NOTE: The CASE IH AGRICULTURE The L725,L735 and L745 loaders have two accumulators.

The L755,L765,L775,L785 and L795 have three accumulators.

93259899

1

93110367

2

NOTE: The accumulators (1) used with the Soft-Ride system are pre-charged and can not be re-charged. Contact your CASE IH AGRICULTURE dealer for service.

Soft Ride activation and deactivation Soft-Ride function can be shut off completely or engaged in two working modes with a knob (2) or electrically at the operator’s seat. as desired.

Mechanical system •

Deactivation: Position I

•

Activation: Two work modes: Position II or III

Electrical system •

Deactivation: Position I

•

Activation: One work mode: Position III

Position I = Shut Off. Position II = Accumulators open to the lift side of the cylinders (+).

Position III = Accumulators open to the lift side of the cylinder (+) and the rod side of the cylinder (-).

In position III, there is an internal relief port from the (-) rod side to the (+) side of the lift cylinder. When in position III you cannot maintain down pressure on the cylinders with the joystick in its neutral position.

Positions I, II, III can only be selected when the pressure has been relieved from the system. Lower the loader to the ground and shut off tractor engine. Move the joystick control lever to all control positions and return to neutral.

4-5

4 - WORKING OPERATIONS

Remove bucket or attachment (SSL style) WARNING Falling object hazard!

Stand to each side of the attachment, making sure your feet are clear of the loader and attachment, before placing the attaching plate lock handles in the unlocked position.

Failure to comply could result in death or serious injury.

W1076A

ATTENTION: Do not place the hydraulic control valve in the “FLOAT� position prior to removing the attachment.

Do not stand on the attachment when placing the lock handles in the unlocked position.

1.

Position the bucket or attachment firmly on the ground and roll back slightly rearward.

2.

Shut off the engine and lock the hydraulic control valve in the neutral position.

3.

Lift the attaching plate lock handles (1) to unlock the attaching plate from the bucket or other attachment.

4.

Start the engine, lower the loader while slowly roll the bucket or attachment forward until the attaching plate (2) disengages from the bucket or attachment plates (3).

5.

Back tractor and loader away from the bucket or attachment.

4-6

83083991

1

83083989

2

4 - WORKING OPERATIONS

Install bucket or attachment (SSL style) WARNING Falling object hazard!

Before operating the machine, always make sure the bucket or attachment is securely locked into the quick-attach plate. A loader bucket or attachment that is not securely locked into the quick-attach plate could come off during loader operation.

Failure to comply could result in death or serious injury.

W0166A

1.

Lower the loader with the quick-attach plate (1) below the bucket plates (2) and rolled slightly forward.

83083989

1

83083990

2

83083993

3

NOTICE: The area surrounding the quick attach latches and the engagement slots on the bucket must be kept free from debris and foreign material to allow proper operation of the quick attach locking mechanism.

2.

Raise the loader slightly to engage the quick-attach plate (1) with the top bucket plates (2).

3.

With the quick-attach plate securely engaged in the top bucket plates, roll the bucket rearward allowing the quick attach plate to move forward, seating the plate on the bucket.

WARNING Falling object hazard!

Before operating the machine, always make sure the bucket or attachment is securely locked into the quick-attach plate. A loader bucket or attachment that is not securely locked into the quick-attach plate could come off during loader operation.

Failure to comply could result in death or serious injury.

W0166A

4.

Shut off the engine and set the park brake.

5.

With the quick attach plate securely seated on the bucket, push the left and right side lock handles (3) to the locked position.

4-7

4 - WORKING OPERATIONS

6.

Raise the loader and dump the bucket until the cutting edge is resting on the ground. Visually conform that the locking pins (4) on the quick attach plate are engaged and locked in the bucket slots.

NOTE: Make sure that the implement is secured to the attaching plate by pressing the front of the implement against the ground.

7.

Lower the loader and roll the attachment to the level position.

8.

Check the bucket level indicator and adjust if necessary.

83083992

4-8

4

4 - WORKING OPERATIONS

Remove bucket or attachment (EURO Style) Raise the loader off the ground and position the attachment level to the ground.

Shut the engine off and lock the joystick control lever in neutral position.

Apply the parking brake.

77118443

1

77118444

2

Pull the bucket lever to the disengaged position (left).

NOTE: It is easiest to move the lock lever to the open position if the loader has been lifted about 1 m (39 in).

4-9

4 - WORKING OPERATIONS

Lock the lever behind the catch.

77118445

3

77118447

4

77118448

5

Start tractor and lower the loader to the ground until the attachment disengages from the loader tool carrier.

Back tractor/loader away from attachment.

4 - 10

4 - WORKING OPERATIONS

Install bucket or attachment (EURO style) Raise/lower the loader to make the base of the tool carrier about 50 mm (2 in) from the ground. Tilt the tool carrier forwards slightly (using the bucket level indicator as a reference).

NOTE: To improve visibility tilt the tool carrier forward.

77118442

1

77118446

2

77118449

3

Drive the tractor forwards slowly to position the tool carrier under the hooks on the attachment.

When the attachment plate contacts the attachment, raise the loader to "hook" the attachment to the tool carrier. Roll the attachment back to engage the attachment locking system.

Read this before operating loader:

WARNING Falling object hazard!

Before operating the machine, always make sure the bucket or attachment is securely locked into the quick-attach plate. A loader bucket or attachment that is not securely locked into the quick-attach plate could come off during loader operation.

Failure to comply could result in death or serious injury.

W0166A

Always check that the coupled bucket or attachment is locked in place. Press the front of the bucket or attachment against the ground and visually check that the tool carrier locking pins are engaged in the eyes of the attachment.

4 - 11

4 - WORKING OPERATIONS

Operation with grapple fork attachment WARNING

WARNING

Falling object hazard!

Only move large round bales using a loader equipped with an approved round bale attachment. Otherwise, the bale can fall on the operator when the loader is raised.

Failure to comply could result in death or serious injury.

Avoid injury and/or property damage!

Be aware that forward visibility is reduced when moving large round bales.

Failure to comply could result in death or serious injury.

W0950A

W0948A

WARNING Avoid injury and/or property damage!

Handling bales improperly can create the possibility of a "run-away" bale. Use proper bale handling equipment when stacking round bales. Set bales down on level ground.

Failure to comply could result in death or serious injury.

WARNING Overturning hazard!

Use extreme caution when turning, loading, and moving bales. Use adequate rear ballast.

Failure to comply could result in death or serious injury.

W0951A

W0949A

On tractors with loader control valve and electric diverter valve system, press the loader third hydraulic function button (1) and move the hydraulic control lever to the right to open the grapple or to the left to close the grapple. On live third hydraulic function units, press and hold the top side of the switch to open the grapple or bottom side of the switch to close grapple. Consult with your dealer as to the style of system on your tractor/loader.

76115289

1

93572869

2

Approach bale from the side, with loader raised, grapple tines fully open, and bucket partially dumped.

Move grapple fork over the bale.

4 - 12

4 - WORKING OPERATIONS

Move the grapple down onto the bale.

Make sure grapple is as far down on the bale as possible.

Press the loader third hydraulic function button and move the hydraulic control lever to the left to close the grapple on the bale, on units equipped with electric diverter valve system. On Live 3rd units press and hold the bottom button to close the grapple on the bale.

93672869

3

93679899

4

93779899

5

Lift the load carefully, keeping the bucket level. Raise loader only enough for clearance under bale. Move bale slowly and carefully until ready to unload.

NOTE: Always roll back bucket if bale is to be lifted more than 152 mm (6 in) above ground level.

Release bale as close to the ground as possible. Partially dump bucket while slowly opening grapple. Carefully back unit away from bale.

4 - 13

4 - WORKING OPERATIONS

Operation with H.D. bale grip WARNING Falling object hazard!

The backstop must be installed when operating this attachment.

Failure to comply could result in death or serious injury.

W0953A

Make sure backstop (1) is installed.

NOTICE: Do not operate this attachment until the backstop (1) is installed.

86064660

1

8672869

2

86072869

3

Press the loader third hydraulic function button and move the hydraulic control lever to the right to open the arms, on units equipped with the electric diverter valve. On Live 3rd units press and hold the top button to open the arms.

Move the hydraulic control lever forward to lower the H.D. bale grip around bale.

Press the loader third hydraulic function button and move the hydraulic control lever to the left to close the arms on the bale, on units equipped with the electric diverter valve. On Live 3rd units press and hold the bottom button to close the arms.

Move the hydraulic control lever rearward to lift the bale.

Move the hydraulic control lever to the left to roll the quadrogrip back.

4 - 14

5 - MAINTENANCE

5 - MAINTENANCE GENERAL INFORMATION

Torque - Minimum Tightening Torques for Normal Assembly METRIC NON-FLANGED HARDWARE NOM. SIZE CLASS 8.8 BOLT and CLASS 8 NUT PLATED UNPLATED W/ZnCr M4 M5 M6 M8

2.2 N·m (19 lb in) 4.5 N·m (40 lb in) 7.5 N·m (66 lb in) 18 N·m (163 lb in)

M10

37 N·m (27 lb ft)

M12

64 N·m (47 lb ft)

M16 M20 M24

158 N·m (116 lb ft) 319 N·m (235 lb ft) 551 N·m (410 lb ft)

2.9 N·m (26 lb in) 5.9 N·m (52 lb in) 10 N·m (89 lb in) 25 N·m (217 lb in) 49 N·m (36 lb ft) 85 N·m (63 lb ft) 210 N·m (155 lb ft) 425 N·m (313 lb ft) 735 N·m (500 lb ft)

CLASS 10.9 BOLT and CLASS 10 NUT PLATED UNPLATED W/ZnCr 3.2 N·m (28 lb 4.2 N·m (37 lb in) in) 6.4 N·m (57 lb 8.5 N·m (75 lb in) in) 11 N·m (96 lb 15 N·m (128 lb in) in) 26 N·m (234 lb 35 N·m (311 lb in) in) 70 N·m (51 lb 52 N·m (38 lb ft) ft) 121 N·m (90 lb 91 N·m (67 lb ft) ft) 225 N·m (166 lb 301 N·m (222 ft) lb ft) 440 N·m (325 lb 587 N·m (433 ft) lb ft) 762 N·m (560 lb 1016 N·m (750 ft) lb ft)

LOCKNUT CL.8 W/CL8.8 BOLT

2 N·m (18 lb in) 4 N·m (36 lb in) 6.8 N·m (60 lb in) 17 N·m (151 lb in) 33 N·m (25 lb ft) 58 N·m (43 lb ft) 143 N·m (106 lb ft) 290 N·m (214 lb ft) 501 N·m (370 lb ft)

LOCKNUT CL.10 W/CL10.9 BOLT 2.9 N·m (26 lb in) 5.8 N·m (51 lb in) 10 N·m (89 lb in) 24 N·m (212 lb in) 48 N·m (35 lb ft) 83 N·m (61 lb ft) 205 N·m (151 lb ft) 400 N·m (295 lb ft) 693 N·m (510 lb ft)

NOTE: M4 through M8 hardware torque specifications are shown in pound-inches. M10 through M24 hardware torque specifications are shown in pound-feet.

IDENTIFICATION Metric Hex head and carriage bolts, classes 5.6 and up

1

20083680

1.

Manufacturer's Identification

2.

5-1

Property Class

5 - MAINTENANCE

Metric Hex nuts and locknuts, classes 05 and up

2

20083681

1.

Manufacturer's Identification

2.

Property Class

3.

Clock Marking of Property Class and Manufacturer's Identification (Optional), i.e. marks 60 ° apart indicate Class 10 properties, and marks 120 ° apart indicate Class 8.

INCH NON-FLANGED HARDWARE NOMINAL SIZE

SAE GRADE 5 BOLT and NUT UNPLATED or PLATED SILVER

1/4 5/16 3/8 7/16 1/2 9/16 5/8 3/4 7/8 1

8 N·m (71 lb in) 17 N·m (150 lb in) 30 N·m (22 lb ft) 48 N·m (36 lb ft) 74 N·m (54 lb ft) 107 N·m (79 lb ft) 147 N·m (108 lb ft) 261 N·m (193 lb ft) 420 N·m (310 lb ft) 630 N·m (465 lb ft)

SAE GRADE 8 BOLT and NUT

UNPLATED PLATED W/ZnCr or PLATED GOLD SILVER 11 N·m (97 lb in) 23 N·m (204 lb in) 40 N·m (30 lb ft) 65 N·m (48 lb ft) 98 N·m (73 lb ft) 142 N·m (105 lb ft) 196 N·m (145 lb ft) 348 N·m (257 lb ft) 561 N·m (413 lb ft) 841 N·m (620 lb ft)

12 N·m (106 lb in) 24 N·m (212 lb in) 43 N·m (31 lb ft) 68 N·m (50 lb ft) 104 N·m (77 lb ft) 150 N·m (111 lb ft) 208 N·m (153 lb ft) 369 N·m (272 lb ft) 594 N·m (438 lb ft) 890 N·m (656 lb ft)

LOCKNUT GrB W/ Gr5 BOLT

LOCKNUT GrC W/ Gr8 BOLT

PLATED W/ZnCr GOLD 16 N·m (142 lb in) 32 N·m (283 lb in) 57 N·m (42 lb ft) 91 N·m (67 lb ft) 139 N·m (103 lb ft) 201 N·m (148 lb ft) 277 N·m (204 lb ft) 491 N·m (362 lb ft) 791 N·m (584 lb ft) 1187 N·m (875 lb ft)

12.2 N·m (109 lb in) 17.5 N·m (155 lb 25 N·m (220 lb in) in)

8.5 N·m (75 lb in)

31 N·m (23 lb ft) 44 N·m (33 lb ft) 50 N·m (37 lb ft) 71 N·m (53 lb ft) 76 N·m (56 lb ft) 108 N·m (80 lb ft) 156 N·m (115 lb ft) 153 N·m (113 lb 215 N·m (159 lb ft) ft) 271 N·m (200 lb 383 N·m (282 lb ft) ft) 437 N·m (323 lb 617 N·m (455 lb ft) ft) 654 N·m (483 lb 924 N·m (681 lb ft) ft)

111 N·m (82 lb ft)

NOTE: For Imperial Units, 1/4 in and 5/16 in hardware torque specifications are shown in pound-inches. 3/8 in through 1 in hardware torque specifications are shown in pound-feet.

5-2

5 - MAINTENANCE

IDENTIFICATION Inch Bolts and free-spinning nuts

20083682

3

Grade Marking Examples 1 2 3

Grade 2 - No Marks Grade 5 - Three Marks Grade 8 - Five Marks

SAE Grade Identification 4 Grade 2 Nut - No Marks 5 Grade 5 Nut - Marks 120 ° Apart 6 Grade 8 Nut - Marks 60 ° Apart

Inch Lock Nuts, All Metal (Three optional methods)

20090268

4

Grade Identification Grade Grade A Grade B Grade C

Corner Marking Method (1) No Notches One Circumferential Notch Two Circumferential Notches

Flats Marking Method (2) No Mark Letter B Letter C

5-3

Clock Marking Method (3) No Marks Three Marks Six Marks

5 - MAINTENANCE

Torque - Standard torque data for hydraulics INSTALLATION OF ADJUSTABLE FITTINGS IN STRAIGHT THREAD O RING BOSSES 1.

Lubricate the O-ring by coating it with a light oil or petroleum. Install the O-ring in the groove adjacent to the metal backup washer which is assembled at the extreme end of the groove (4).

2.

Install the fitting into the SAE straight thread boss until the metal backup washer contacts the face of the boss (5).

NOTE: Do not over tighten and distort the metal backup washer.

3.

23085659

1

Position the fitting by turning out (counterclockwise) up to a maximum of one turn. Holding the pad of the fitting with a wrench, tighten the locknut and washer against the face of the boss (6).

STANDARD TORQUE DATA FOR HYDRAULIC TUBES AND FITTINGS TUBE NUTS FOR 37° FLARED FITTINGS

SIZE

TUBING OD

THREAD SIZE

TORQUE

O-RING BOSS PLUGS ADJUSTABLE FITTING LOCKNUTS, SWIVEL JIC- 37° SEATS TORQUE

4 5 6 8 10 12 14 16 20 24 32

6.4 mm (1/4 in) 7.9 mm (5/16 in) 9.5 mm (3/8 in) 12.7 mm (1/2 in) 15.9 mm (5/8 in) 19.1 mm (3/4 in) 22.2 mm (7/8 in) 25.4 mm (1 in) 31.8 mm (1-1/4 in) 38.1 mm (1-1/2 in) 50.8 mm (2 in)

7/16-20 1/2-20 9/16-18 3/4-16 7/8-14 1-1/16-12 1-3/16-12 1-5/16-12 1-5/8-12 1-7/8-12 2-1/2-12

12 - 16 N·m (9 - 12 lb ft) 16 - 20 N·m (12 - 15 lb ft) 29 - 33 N·m (21 - 24 lb ft) 47 - 54 N·m (35 - 40 lb ft) 72 - 79 N·m (53 - 58 lb ft) 104 - 111 N·m (77 - 82 lb ft) 122 - 136 N·m (90 - 100 lb ft) 149 - 163 N·m (110 - 120 lb ft) 190 - 204 N·m (140 - 150 lb ft) 217 - 237 N·m (160 - 175 lb ft) 305 - 325 N·m (225 - 240 lb ft)

8 - 14 N·m (6 - 10 lb ft) 14 - 20 N·m (10 - 15 lb ft) 20 - 27 N·m (15 - 20 lb ft) 34 - 41 N·m (25 - 30 lb ft) 47 - 54 N·m (35 - 40 lb ft) 81 - 95 N·m (60 - 70 lb ft) 95 - 109 N·m (70 - 80 lb ft) 108 - 122 N·m (80 - 90 lb ft) 129 - 158 N·m (95 - 115 lb ft) 163 - 190 N·m (120 - 140 lb ft) 339 - 407 N·m (250 - 300 lb ft)

These torques are not recommended for tubes of 12.7 mm (1/2 in) OD and larger with wall thickness of 0.889 mm (0.035 in) or less. The torque is specified for 0.889 mm (0.035 in) wall tubes on each application individually.

Before installing and torquing 37 ° flared fittings, clean the face of the flare and threads with a clean solvent or Loctite cleaner and apply hydraulic sealant LOCTITE® 569 to the 37 ° flare and the threads.

Install fitting and torque to specified torque, loosen fitting and retorque to specifications.

5-4

5 - MAINTENANCE

PIPE THREAD FITTING TORQUE

PIPE THREAD FITTING

Before installing and tightening pipe fittings, clean the threads with a clean solvent or Loctite cleaner and apply sealant LOCTITE® 567 PST PIPE SEALANT for all fittings including stainless steel or LOCTITE® 565 PST for most metal fittings. For high filtration/zero contamination systems use LOCTITE® 545.

Torque (Maximum) 13 N·m (10 lb ft) 16 N·m (12 lb ft) 22 N·m (16 lb ft) 41 N·m (30 lb ft) 54 N·m (40 lb ft)

Thread Size 1/8-27 1/4-18 3/8-18 1/2-14 3/4-14

INSTALLATION OF ORFS (O-RING FLAT FACED) FITTINGS When installing ORFS fittings thoroughly clean both flat surfaces of the fittings (1) and lubricate the O-ring (2) with light oil. Make sure both surfaces are aligned properly.

Torque the fitting to specified torque listed throughout the repair manual.

NOTICE: If the fitting surfaces are not properly cleaned, the O-ring will not seal properly. If the fitting surfaces are not properly aligned, the fittings may be damaged and will not seal properly.

NOTICE: Always use genuine factory replacement oils and filters to ensure proper lubrication and filtration of engine and hydraulic system oils.

The use of proper oils, grease, and keeping the hydraulic system clean will extend machine and component life.

5-5

50011183

2

5 - MAINTENANCE

Lubrication points WARNING Falling object hazard!

If you raise the loader to access bucket pivot pin grease zerks, support loader with an adequate support.

Failure to comply could result in death or serious injury.

W0952A

WARNING Crushing hazard!

Never stand between the front of the tractor and the loader cross tubes.

Failure to comply could result in death or serious injury.

76114135

1

20105811

2

W1075A

Lubrication (Service interval every 10 operating hours) Grease zerks at each pivot pin and links on both sides of the loader.

Maintenance Storage Store hoses on main frame so couplers(s) are off the ground.

Apply a thin layer of grease to exposed cylinder rods as protection.

Hydraulic System Frequently check the oil level in the tractor hydraulic oil reservoir when the loader is lowered to the ground. Use oil specified in the tractor operators manual.

5-6

5 - MAINTENANCE

Hoses and cylinders Read this before checking hydraulic system for leaks:

WARNING Escaping fluid!

Hydraulic fluid or diesel fuel leaking under pressure can penetrate the skin and cause infection or other injury. To prevent personal injury: Relieve all pressure before disconnecting fluid lines or performing work on the hydraulic system. Before applying pressure, make sure all connections are tight and all components are in good condition. Never use your hand to check for suspected leaks under pressure. Use a piece of cardboard or wood for this purpose. If injured by leaking fluid, see your doctor immediately.

Failure to comply could result in death or serious injury.

20105812A

W0178A

Inspect hoses and fittings periodically for wear and leaks.

Be sure hoses have sufficient clearance and do not rub against frame. Replace hoses if damaged and keep all fittings tight.

Cylinders are double-acting. For efficient operation, they must be kept in good repair at all times. Leaks, internal or external, affect operation and can be hazardous.

This loader requires a high pressure hydraulic system.

Use only approved replacement parts.

5-7

1

5 - MAINTENANCE

Central control valve Connect and disconnect "plug in coupling" The Central Control Valve receives and distributes the hydraulic oil equally to each side of the loader. The quick couple connectors allow for quick hydraulic hose change in case of failure.

83064661

2

20105813

3

20105814

4

Disconnection 1.

Remove the assembly stop.

2.

Push the hose all the way in.

3.

the coupling is now ready to disconnect.

4.

Pull the hose back for disconnection.

(A) Assembly stop Connection 1.

Make sure that the assembly stop is in place.

2.

DO NOT connect the plug without the assembly stop.

3.

Push the hose all the way in until the assembly stop touches the socket.

4.

Make sure that there is no space between the assembly stop and the socket.

5.

Try to pull apart the coupling in order to make sure that the hose is locked.

(A) Assembly stop

5-8

5 - MAINTENANCE

Checking hydraulic connections

50 hours of operation. Please refer to5-1 for torque values.

Check that all hoses and adapters have been tightened and that they do not leak.

Hardware tightening chart

Repairing hydraulic cylinders

•

Tighten all the bolts on the loader and mounting bracket hardware to the values specific in 5-1, except in the cases where the tightening torque is specified in the assembly instructions.

•

The torques specified in 5-1 apply to clean, dry threads.

Lubricated threads will result in the fastener being overtightened. Damaged or dirty threads will result in the fastener being undertightened.

•

A torque multiplier may be needed when tightening bolts to high torque values.

•

Disassembly, repair and assembly of hydraulic cylinders requires special tools to prevent damage to internal components.We recommend that a cylinder that needs repair should be repaired by an authorized dealer.

Checking loader frame hardware •

Hardware torque should be checked immediately after installation, and several times after a short period of use. Improperly tightened hardware may cause structural damage to loader and/or tractor.

•

Check that all bolts are tightened to the specified torque, after 10 hours of operation and then every

5-9

5 - MAINTENANCE

Recommended lubricants Lubricant

Oil

Hydraulic oil

Location Used

Amount

Type

CASE IH AGRICULTURE Part # Engine and pivot points without CASE IH 104104A1 grease fittings, chains AKCELA ENGINE 104106A1 OIL 10W-30 139033A1 407410R2 CASE IH AKCELA ENGINE 407414R2 OIL 15W-40 Hydraulic system 404787A1 CASE IH Transmission AKCELA 404789A1 Front axle NEXPLORE™ Rear axle FLUID Power steering 143945A2 CASE IH AKCELA 372705R7 HY-TRAN® ULTRA™

1 5 1 1 5

US US US US US

qt gal gal qt gal

5 US gal 55 US gal 2.5 US gal 5 US gal

HYDRAULIC TRANSMISSION OIL

Grease

All grease fittings

CNH F200A MULTISEASON High viscosity lithium baseNLG#2

5 - 10

B17805 B17806

5 US gal 55 US gal

132096A1

Cartridge

6 - TROUBLESHOOTING

6 - TROUBLESHOOTING SYMPTOM(S)

Basic instructions Check that the oil is at normal working temperature before the loader is tested.

Faulty functioning of the loader is frequently caused by factors not related to the loader: •

Check the oil level in the tractor's hydraulic tank.

Top up to the correct level.

•

•

Check that the correct oil is used. Only use the oil specified in the tractor instruction manual. Incorrect oil can cause foaming, heating and internal leakage.

When a hose kit is used, make sure that the tractor valve has been adjusted for double action. Check that flow control has been set to maximum value.

•

Operate the loader cylinders to their end positions several times to remove air from hoses and cylinders.

•

Make sure that hoses and couplings are correctly installed and connected to the tractor. Hydraulic couplings must be fully inserted.

•

Check that the oil is clean and free from moisture.

Change the oil and filter as necessary.

Most problems which occur with the loader are simple in nature and can be easily rectified. Use the "Trouble Shooting" on the following pages to help you localize and rectify problems.

•

Check hoses and couplings for leakage, cuts and twists.

Please contact your CASE IH AGRICULTURE dealer if you need more help.

•

Low temperatures can cause slow movement and/or that the loader does not function normally until normal working temperature has been reached.

HITCH AND WORKING TOOL - Troubleshooting Problem Possible Cause Low hydraulic oil level.

Lifting and bucket cylinders do not function.

Hydraulic hoses wrongly connected.

Hydraulic hoses to/from control valve are "blocked".

Loader control valve or tractor main reduction valve has stuck open.

Low system pressure from pump.

Correction Check and top up with hydraulic oil.

Check and connect the hoses correctly.

Check hoses for damage (kinks, twists, etc.).

Contact your CASE IH AGRICULTURE dealer.

Contact your CASE IH AGRICULTURE dealer.

Inspect. Change if necessary.

Lifting or bucket cylinders Break in control cable for control valve. do not function.

Hydraulic quick-release couplings not fully Check coupling. Change coupling(s) as inserted. necessary.

Blocked hydraulic hose/pipe.

Look for damage to hose/pipe which could block oil flow between cylinder and control valve.

Piston unit damaged (does not seal).

Contact your CASE IH AGRICULTURE dealer.

Blocked control valve.

Contact your CASE IH AGRICULTURE dealer.

Damaged quick-release coupling.

Change quick-release coupling.

Hydraulic hoses wrongly connected.

Connect hydraulic hoses to correct union.

Lift and/or bucket cylinders operate in wrong direction compared with lever movement.

Control cables for single lever control Contact your CASE IH AGRICULTURE wrongly connected. dealer.

Low hydraulic oil level.

Air in hydraulic oil Check and top up with hydraulic oil to cor(generally shown by rect level. foaming).

6-1

6 - TROUBLESHOOTING

Problem

Slow or jerky lifting movement.

System relief valve squeals.

Insufficient lifting capacity.

Possible Cause Correction Air leakage in hydraulic pump suction side. Contact your CASE IH AGRICULTURE dealer.

Foaming due to use of wrong type of oil. Read the tractor instruction manual and use the recommended type of hydraulic oil.

Low hydraulic oil level. Cold hydraulic oil. Check/top up the hydraulic oil. Let the hydraulic oil warm up to working temperature.

Engine speed too low (hydraulic pump Increase engine speed to improve loader performance. speed is then too low).

Too heavy load in bucket. Material weight Reduce the load in the bucket. exceeds loader's specified capacity.

Control valve cable system binds or is dam- Contact your CASE IH AGRICULTURE aged. dealer.

Air in the hydraulic oil.

Please refer to "Air in hydraulic oil".

Hydraulic quick-release couplings not fully Check the couplings. Repair or change. inserted Restriction in hydraulic hose or pipe Check hoses/pipes for signs of restriction. (hoses/pipes have become twisted or crushed).

Lifting cylinder piston unit leaks.

Contact your CASE IH AGRICULTURE dealer.

Reduction valve works unevenly or is set Contact your CASE IH AGRICULTURE too low. dealer.

Internal leakage in control valve (bypass Contact your CASE IH AGRICULTURE flow in valve). dealer.

Low capacity in hydraulic pump.

Please refer to "Low pump capacity".

Let the hydraulic oil warm up to working Cold hydraulic oil. temperature.

Too heavy load in bucket. Material weight Reduce the load in the bucket. exceeds loader's specified capacity.

Relief valve set below specification.

Contact your CASE IH AGRICULTURE dealer.

Restriction in hydraulic hose, pipe or quick Contact your CASE IH AGRICULTURE release coupling. dealer.

Engine speed too low.

Increase engine speed.

Too heavy load in bucket. Material weight Reduce load. exceeds loader's specified capacity.

Relief valve set below specification.

Contact your CASE IH AGRICULTURE dealer.

Pistons in lifting cylinders leak.

Contact your CASE IH AGRICULTURE dealer.

Internal leakage in control valve.

Contact your CASE IH AGRICULTURE dealer.

Damaged hydraulic pump.

Contact your CASE IH AGRICULTURE dealer.

Loader drops with control Pistons in lifting cylinders leak.

Contact your CASE IH AGRICULTURE valve spool in "centering" dealer. position. Note: The value at which the loader is allowed to lower varies between 0.5 - 1.5 mm/min measured on the piston rod, depending on loader model.

Internal leakage in control valve.

Contact your CASE IH AGRICULTURE dealer.

Control valve or cable system binds and Find the reason for binding and repair it. prevents valve spool from returning to center position.

6-2

6 - TROUBLESHOOTING

Problem Control valve spool(s) do not return to neutral position.

Possible Cause Correction Control valve centering spring is damaged. Contact your CASE IH AGRICULTURE dealer.

Control valve spool binds in its bore.

External hydraulic oil leakage.

Low pump capacity.

Lift cylinder rods bend when lift cylinders are extended.

Bucket cylinder piston rods are bent when bucket cylinders are extended.

Bucket cutting edge wear is uneven side to side.

Rapid wear on cutting edge on bucket (wear is evenly distributed across entire bucket width). NOTE: Extensive use of bucket on concrete/asphalt surface increases wear on cutting edge on bucket.

Contact your CASE IH AGRICULTURE dealer.

Control lever or cable system binds.

Find the reason for binding and repair it.

Loose hydraulic unions.

Contact your CASE IH AGRICULTURE dealer.

Damaged hydraulic hoses, pipes, cou- Find the reason for the leakage and change plings or O-rings in couplings. the damaged component.

Damaged O-ring in control valve.

Contact your CASE IH AGRICULTURE dealer.

Control valve spool or housing damaged Contact your CASE IH AGRICULTURE and/or worn. dealer.

Piston rod seal in cylinder leaks.

Contact your CASE IH AGRICULTURE dealer.

Let the hydraulic oil warm up to working Cold hydraulic oil. temperature. Increase engine speed.

Engine speed too low.

Increase engine speed.

Low hydraulic oil.

Please refer to the tractor instruction manual for service recommendations.

Restriction in hydraulic hose.

Look for signs of restricted hydraulic hoses.

Fault in hydraulic pump.

Contact your CASE IH AGRICULTURE dealer.

Excessive load on lift or during transport. Change cylinders. Review and observe proper operational practices.

Grading or excavation work with bucket Change cylinders. Review and observe cylinders fully extended. proper operational practices.

Bucket is not parallel with ground.

Check air pressure in rear tires and level pressure to adjust bucket to ground.

Unsuitable working methods. Excessive Please refer to the "Working with the high down force on bucket when it is used loader" section for recommended working on a hard, abrasive surface. methods. Use the float position, if appropriate.

6-3

6 - TROUBLESHOOTING

6-4

7 - SPECIFICATIONS

7 - SPECIFICATIONS Loader Specifications The following specifications are intended to be used as a general guide. Due to variations in tractor models, tire size, and hydraulic system, these specifications apply only to the tractor specified in each example.

Other tractor models and/or tractor variations may have different values. Specifications are to current ASAE/ASABE Standard S301 .3. The technical data may vary, depending on the tractor model and implement.

Loader Model Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin (non self leveling) Lift Capacity to Maximum Height @ pivot pin (self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling Boom Breakout Force @ Pivot Pin (self leveling Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ ground level (non self leveling) Bucket rollback force @ ground level (self leveling) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-1

L725 Farmall 65C-75C 64 l/min (17 US gpm) 19000 kPa (2755 psi) 3190 mm (125.6 in) 2880 mm (113.4 in) 2230 mm (87.8 in) 130 mm (5.1 in) 1830 kg (4034 lb) 1510 kg (3329 lb) 1260 kg (2778 lb) 1420 kg (3131 lb) 1950 kg (4299 lb) 1930 kg (4255 lb) 1830 kg (4034 lb) 1220 kg (2690 lb) 2310 kg (5093 lb) 1610 kg (3549 lb) 1340 kg (2954 lb) 1500 kg (3307 lb) 1640 kg (3616 lb) 1670 kg (3682 lb) 2290 kg (5049 lb) 2250 kg (4960 lb) 800 mm (31.5 in) 2350 mm (92.5 in) 42 째 62 째 Non-self leveling Self leveling 3.4 s 2.9 s 2.3 s 1.8 s 4.0 s 2.4 s 2.9 s 2.4 s 770 kg (1697 lb) (non 980 kg (2160 lb) (self self leveling) leveling)

7 - SPECIFICATIONS

Loader Model L735 Farmall 85U-95U Tractor Model Series Rated Hydraulic Flow 79 l/min (21 US gpm) Rated Pressure 19600 kPa (2842 psi) (A) Maximum Lift Height to Pivot Pin 3430 mm (135.0 in) (B) Maximum Lift Height Under Level Bucket 3120 mm (122.8 in) (C) Clearance with Bucket Dumped @ 45 째 2460 mm (96.9 in) (D) Digging Depth 160 mm (6.3 in) Lift Capacity to Maximum Height @ pivot pin (non self leveling) 1830 kg (4034 lb) Lift Capacity to Maximum Height @ pivot pin (self leveling) 1510 kg (3329 lb) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of 1290 kg (2844 lb) Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of 1340 kg (2954 lb) Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self 1930 kg (4255 lb) leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) 1590 kg (3505 lb) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) 1220 kg (2690 lb) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) 1430 kg (3153 lb) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling 2250 kg (4960 lb) Boom Breakout Force @ Pivot Pin (self leveling 1870 kg (4123 lb) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self 1350 kg (2976 lb) leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self 1490 kg (3285 lb) leveling) Bucket rollback force @ maximum lift height (non self leveling) 1550 kg (3471 lb) Bucket rollback force @ maximum lift height (non self leveling) 1570 kg (3461 lb) Bucket rollback force @ ground level (non self leveling) 2340 kg (5181 lb) Bucket rollback force @ ground level (self leveling) 2310 kg (5093 lb) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 640 mm (25.2 in) (F) Reach @ ground level 2390 mm (94.1 in) (G) Maximum Rollback Angle 48 째 (H) Maximum Dump Angle 54 째 Cycle Times Non-self leveling Self leveling Raising Time 3.6 s 3.1 s Lowering Time 2.4 s 2.0 s Bucket Dumping Time 4.4 s 2.7 s Bucket Rollback Time 3.2 s 2.7 s Recommended minimum rear ballast (per ASAB directive) 380 kg (840 lb) (non self 400 kg (882 lb) (self leveling) leveling)

7-2

7 - SPECIFICATIONS

Loader Model Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin (non self leveling) Lift Capacity to Maximum Height @ pivot pin (self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling Boom Breakout Force @ Pivot Pin (self leveling Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ ground level (non self leveling) Bucket rollback force @ ground level (self leveling) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-3

L735 Farmall 95 51.5 l/min (14 US gpm) 19000 kPa (2755 psi) 3490 mm (137.0 in) 3190 mm (125.5 in) 2530 mm (99.6 in) 110 mm (4.3 in) 1830 kg (4034 lb) 1510 kg (3329 lb) 1290 kg (2844 lb) 1340 kg (2954 lb) 1930 kg (4255 lb) 1590 kg (3505 lb) 1220 kg (2690 lb) 1430 kg (3153 lb) 2250 kg (4960 lb) 1870 kg (4123 lb) 1350 kg (2976 lb) 1490 kg (3285 lb) 1550 kg (3471 lb) 1570 kg (3461 lb) 2340 kg (5181 lb) 2310 kg (5093 lb) 650 mm (25.5 in) 2150 mm (84.6 in) 44 째 57 째 Non-self leveling Self leveling 4.4 s 3.8 s 3.0 s 2.4 s 3.5 s 3.4 s 4.0 s 3.4 s 530 kg (1170 lb) (non 620 kg (1367 lb) (self self leveling) leveling)

7 - SPECIFICATIONS

Loader Model Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin (non self leveling) Lift Capacity to Maximum Height @ pivot pin (self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling Boom Breakout Force @ Pivot Pin (self leveling Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ ground level (non self leveling) Bucket rollback force @ ground level (self leveling) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-4

L745 MAXXUM (4 cyl) 100.3 l/min (26 US gpm) 19700 kPa (2587 psi) 3730 mm (146.8 in) 3430 mm (135.0 in) 2770 mm (109.0 in) 150 mm (5.9 in) 2310 kg (5093 lb) 1960 kg (4321 lb) 1640 kg (3616 lb) 1730 kg (3814 lb) 2450 kg (5401 lb) 2090 kg (4607 lb) 1570 kg (3461 lb) 1750 kg (3850 lb) 2830 kg (6239 lb) 2420 kg (5335 lb) 1750 kg (3858 lb) 1930 kg (4254 lb) 1930 kg (4254 lb) 1960 kg (4180 lb) 2820 kg (6217 lb) 2800 kg (6173 lb) 810 mm (31.9 in) 2330 mm (91.7 in) 42 째 61 째 Non-self leveling Self leveling 3.0 s 2.6 s 2.3 s 1.9 s 3.4 s 2.1 s 2.6 s 2.1 s 650 kg (1443 lb) (non 770 kg (1697 lb) (self self leveling) leveling)

7 - SPECIFICATIONS

Loader Model L755 Tractor Model Series MAXXUM (6 cyl) Rated Hydraulic Flow 100.3 l/min (26 US gpm) Rated Pressure 19700 kPa (2587 psi) (A) Maximum Lift Height to Pivot Pin 3990 mm (157.1 in) (B) Maximum Lift Height Under Level Bucket 3690 mm (145.3 in) (C) Clearance with Bucket Dumped @ 45 째 3030 mm (119.3 in) (D) Digging Depth 140 mm (5.5 in) Lift Capacity to Maximum Height @ pivot pin (non self leveling) 2210 kg (4872 lb) Lift Capacity to Maximum Height @ pivot pin (self leveling) 2180 kg (4806 lb) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of 1600 kg (3527 lb) Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of 1900 kg (4189 lb) Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self 2310 kg (5093 lb) leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) 2280 kg (5027 lb) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) 1520 kg (3351 lb) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) 2070 kg (4464 lb) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling 2640 kg (5820 lb) Boom Breakout Force @ Pivot Pin (self leveling 2270 kg (5005 lb) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self 1680 kg (3704 lb) leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self 1870 kg (4784 lb) leveling) Bucket rollback force @ maximum lift height (non self leveling) 1660 kg (3360 lb) Bucket rollback force @ maximum lift height (non self leveling) 2320 kg (5115 lb) Bucket rollback force @ ground level (non self leveling) 2560 kg (4643 lb) Bucket rollback force @ ground level (self leveling) 3470 kg (7650 lb) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 720 mm (28.3 in) (F) Reach @ ground level 2560 mm (100.8 in) (G) Maximum Rollback Angle 45 째 (H) Maximum Dump Angle 55 째 Cycle Times Non-self leveling Self leveling Raising Time 6.6 s 6.6 s Lowering Time 5.1 s 5.1 s Bucket Dumping Time 6.6 s 5.4 s Bucket Rollback Time 5.0 s 5.4 s Recommended minimum rear ballast (per ASAB directive) 1000 kg (2204 lb) (non 1110 kg (2447 lb) self leveling) (self leveling)

7-5

7 - SPECIFICATIONS

Loader Model Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 ° (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin (non self leveling) Lift Capacity to Maximum Height @ pivot pin (self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ pivot pin ( self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (non self leveling) Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin (self leveling) Boom Breakout Force @ Pivot Pin (non self leveling Boom Breakout Force @ Pivot Pin (self leveling Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (non self leveling) Breakout Force 800 mm (31.5 in) Forward of Pivot Pin (self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ maximum lift height (non self leveling) Bucket rollback force @ ground level (non self leveling) Bucket rollback force @ ground level (self leveling) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 ° (non self leveling) (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 ° (self leveling (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-6

L765 Puma (Short Wheel Base) 100 l/min (26 US gpm) 19000 kPa (2755 psi) 4230 mm (166.5 in) 3930 mm (154.0 in) 3270 mm (128.7 in) 160 mm (6.3 in) 2800 kg (6173 lb) 2760 kg (6085 lb) 2080 kg (4486 lb) 2510 kg (5534 lb) 2840 kg (6261 lb) 2800 kg (6173 lb) 1930 kg (4255 lb) 2570 kg (5663 lb) 3134 kg (6909 lb) 3090 kg (6812 lb) 2080 kg (4585 lb) 2610 kg (5754 lb) 2140 kg (4718 lb) 2890 kg (6371 lb) 3270 kg (7209 lb) 4350 kg (9590 lb) 810 mm (31.9 in) 800 mm (31.5 in) 2570 mm (101.2 in) 44 ° 52 ° Non-self leveling Self leveling 4.1 s 4.1 s 3.3 s 3.3 s 3.0 s 3.2 s 3.0 s 3.2 s 980 kg (2160 lb) (non 1370 kg (3020 self leveling) lb)(self leveling)

7 - SPECIFICATIONS

Loader Model (Self Leveling Only) Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin Lift Capacity @ 1500 mm (59 in) height @ pivot pin Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin Boom Breakout Force @ Pivot Pin Breakout Force 800 mm (31.5 in) Forward of Pivot Pin Bucket rollback force @ maximum lift height Bucket rollback force @ ground level (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-7

L775 Puma (Long Wheel Base) 120 l/min (32 US gpm) 19000 kPa (2755 psi) 4530 mm (178.3 in) 4220 mm (166.1 in) 3560 mm (140.2 in) 160 mm (6.3 in) 2810 kg (6195 lb) 2490 kg (5489 lb) 2920 kg (6438 lb) 2698 kg (5948 lb) 3290 kg (7253 lb) 2820 kg (6217 lb) 2920 kg (6438 lb) 4370 kg (9634 lb) 820 mm (32.3 in) 2870 mm (112.9 in) 43 째 52 째 3.9 s 2.8 s 2.5 s 2.5 s 370 kg (815 lb)

7 - SPECIFICATIONS

Loader Model (Self Leveling Only) Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin Lift Capacity @ 1500 mm (59 in) height @ pivot pin Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin Boom Breakout Force @ Pivot Pin Breakout Force 800 mm (31.5 in) Forward of Pivot Pin Bucket rollback force @ maximum lift height Bucket rollback force @ ground level (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-8

L785 Puma (Long Wheel Base) 120 l/min (32 US gpm) 19000 kPa (2755 psi) 4940 mm (194 in) 4640 mm (182.6 in) 3980 mm (156.7 in) 170 mm (6.7 in) 3050 kg (6727 lb) 2840 kg (6261 lb) 3310 kg (7297 lb) 3030 kg (6680 lb) 3820 kg (8421 lb) 3250 kg (7165 lb) 2860 kg (6305 lb) 4340 kg (9568 lb) 730 mm (28.7 in) 2970 mm (116.9 in) 42 째 51 째 4.8 s 3.5 s 2.7 s 2.7 s 1590 kg (3505 lb)

7 - SPECIFICATIONS

Loader Model (Self Leveling Only) Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 째 (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin Lift Capacity @ 1500 mm (59 in) height @ pivot pin Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin Boom Breakout Force @ Pivot Pin Breakout Force 800 mm (31.5 in) Forward of Pivot Pin Bucket rollback force @ maximum lift height Bucket rollback force @ ground level (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 째 (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7-9

L785 Magnum (Mid Range) 120 l/min (32 US gpm) 20000 kPa (2900 psi) 4870 mm (191.7 in) 4560 mm (179.5 in) 3900 mm (153.5 in) 290 mm (11.4 in) 3210 kg (7077 lb) 2990 kg (6592 lb) 3490 kg (7694 lb) 3190 kg (7033 lb) 4030 kg (8885 lb) 3430 kg (7562 lb) 3020 kg (6657 lb) 4570 kg (10075 lb) 760 mm (29.9 in) 2970 mm (116.9 in) 41 째 55 째 4.8 s 3.5 s 2.5 s 2.7 s 780 kg (1719 lb)

7 - SPECIFICATIONS

Loader Model (Self Leveling Only) Tractor Model Series Rated Hydraulic Flow Rated Pressure (A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 ° (D) Digging Depth Lift Capacity to Maximum Height @ pivot pin Lift Capacity to Maximum Height 800 mm (31.5 in) Forward of Pivot Pin Lift Capacity @ 1500 mm (59 in) height @ pivot pin Lift Capacity @ 1500 mm (59 in) height @ 800 mm (31.5 in) forward of pivot pin Boom Breakout Force @ Pivot Pin Breakout Force 800 mm (31.5 in) Forward of Pivot Pin Bucket rollback force @ maximum lift height Bucket rollback force @ ground level (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 ° (F) Reach @ ground level (G) Maximum Rollback Angle (H) Maximum Dump Angle Cycle Times Raising Time Lowering Time Bucket Dumping Time Bucket Rollback Time Recommended minimum rear ballast (per ASAB directive)

7 - 10

L795 Magnum – Tier IV 166 l/min (44 US gpm) 21000 kPa (3045 psi) 4910 mm (196.9 in) 4600 mm (181.0 in) 3910 mm (153.9 in) 240 mm (7.9 in) 3160 kg (6867 lb) 2950 kg (6504 lb) 3870 kg (8532 lb) 3530 kg (7822 lb) 4530 kg (9987 lb) 3880 kg (8554 lb) 3590 kg (7915 lb) 4790 kg (10560 lb) 390 mm (15.4 in) 3150 mm (124.0 in) 43 ° 50 ° 3.6 s 2.7 s 2.0 s 2.0 s 0 kg (0 lb)

7 - SPECIFICATIONS

20022390B

(A) Maximum Lift Height to Pivot Pin (B) Maximum Lift Height Under Level Bucket (C) Clearance with Bucket Dumped @ 45 ° (D) Digging Depth (E) Reach at Maximum Lift Height with Bucket Dumped @ 45 °

1

(F) Reach with Bucket on Ground (G) Maximum Rollback Angle (H) Maximum Dump Angle (WB) Wheelbase

7 - 11

7 - SPECIFICATIONS

7 - 12

8 - ACCESSORIES

8 - ACCESSORIES Optional attachments Not all accessories fit all loaders. Please contact your dealer to ask about suitable accessories for your loader.

3rd function 3rd hydraulic function, electrical diverter valve. Solenoid valve used for hydraulic tools.

NOTE: Only compatible with mechanical cable operated valves.

83064661

1

83064662

2

83113317

3

Soft-Ride Load Damper A nitrogen bladder shock damper system, (1) that reduces stresses on the tractor and loader while improving operator comfort. System can be set to two different working modes.

NOTE: The CASE IH AGRICULTURE The L725,L735 and L745 loaders have two accumulators.

The L755,L765,L775,L785 and L795 have three accumulators.

Quick-connect Couples/uncouples the loader hydraulics with a simple hand operation.

8-1

8 - ACCESSORIES

Standard Material Buckets (Euro Style) •

160 cm (63 in)

•

185 cm (73 in)

•

210 cm (83 in)

•

240 cm (95 in)

Standard Material Buckets (Skid Steer Style) •

185 cm (73 in)

•

210 cm (83 in) 83064664

4

83064665

5

83064666

6

83064672

7

Heavy duty material buckets (Euro Style) •

185 cm (73 in)

•

210 cm (83 in)

•

240 cm (95 in)

•

260 cm (102 in)

Construction tooth buckets (Euro Style) •

160 cm (63 in)

•

185 cm (73 in)

•

210 cm (83 in)

Grapple (Euro Style) •

210 cm (83 in)

•

240 cm (95 in)

•

260 cm (102 in)

Grapple- Bolt On (Skid Steer Style) •

210 cm (83 in)

8-2

8 - ACCESSORIES

Bale Spike ( Euro and Skid Steer Style)

86064670

8

86064671

9

Big Bale Fork (Euro Style)

H.D. bale grip (Euro Style)

83064674

10

83064660

11

H.D. round or square plastic wrapped bale grip (Euro Style)

8-3

8 - ACCESSORIES

Fork Lifts (Euro Style) •

96 cm (38 in)

•

119 cm (47 in)

Fork Lifts (Skid Steer Style) •

119 cm (47 in)

86064668

12

83064669

13

Log Grap Attachment for Fork Lifts (Euro Style)

Counterweight Ballast Box — 3-Point Hitch •

#7177747006 Filled Capacity 454 kg (1000 lb)

•

#717748006 Filled Capacity 680 kg (1500 lb)

86080413N

8-4

14

9 - FORMS AND DECLARATIONS

9 - FORMS AND DECLARATIONS Delivery report - Owner Copy Delivery Date Owner's Name Address Dealer's Name Address Unit:

Model

Product Identification Number

Attachment:

Model

Product Identification Number

Model

Product Identification Number

Model

Product Identification Number

Using the operator's manual as a guide, instruction was given as indicated by the check marks. ( ( ( ( ( ( ( ( ( ( (

) Safety precautions and practice ) Lubrication points and schedule ) Maintenance areas, adjustments, and schedule ) Field adjustments for various crop conditions ) Operation ) Use of optional equipment ) Preseason service ) End-of-season service ) Proper use of operator's manual ) Customer given operator's manual ) All safety shielding is installed

Dealer Representative's Signature "I have been instructed in the operation, maintenance, and safety features of this machine as detailed in the operator's manual."

Owner's Signature

9-1

9 - FORMS AND DECLARATIONS

9-2

9 - FORMS AND DECLARATIONS

Delivery report - Dealer Copy Delivery Date Owner's Name Address Dealer's Name Address Unit:

Model

Product Identification Number

Engine:

Model

Product Identification Number

Attachment:

Model

Product Identification Number

Model

Product Identification Number

Model

Product Identification Number

Using the operator's manual as a guide, instruction was given as indicated by the check marks. ( ( ( ( ( ( ( ( ( ( (

) Safety precautions and practice ) Lubrication points and schedule ) Maintenance areas, adjustments, and schedule ) Field adjustments for various crop conditions ) Operation ) Use of optional equipment ) Preseason service ) End-of-season service ) Proper use of operator's manual ) Customer given operator's manual ) All safety shielding is installed

Dealer Representative's Signature "I have been instructed in the operation, maintenance, and safety features of this machine as detailed in the operator's manual."

Owner's Signature

9-3

9 - FORMS AND DECLARATIONS

9-4

Index ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1 Optional attachments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

COMMISSIONING THE UNIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 Hydraulic controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Installing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Machine preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Re-installing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 Removing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

FORMS AND DECLARATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1 Delivery report - Dealer Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3 Delivery report - Owner Copy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Definition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

International symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Machine orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Note to the Owner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Product Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-6 1-3 1-5 1-1 1-4

GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Install bucket or attachment (EURO style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 Install bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Operating the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Operation with H.D. bale grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Operation with grapple fork attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12 Remove bucket or attachment (EURO Style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 Remove bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Soft-ride loader suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

GENERAL INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Lubrication points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Recommended lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10 Torque - Minimum Tightening Torques for Normal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Torque - Standard torque data for hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Lubrication points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6 Recommended lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10 Torque - Minimum Tightening Torques for Normal Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 Torque - Standard torque data for hydraulics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Check list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-12 Hydraulic controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 Installing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6 Machine preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Re-installing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10 Removing the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Foreword - Ecology and the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-11 Personal safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3 Safety Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6 Safety rules - Personal safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Safety rules and signal word definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 Loader Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

SYMPTOM(S) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 Basic instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 HITCH AND WORKING TOOL - Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 Basic instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 HITCH AND WORKING TOOL - Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

WORKING OPERATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Install bucket or attachment (EURO style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11 Install bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 Operating the loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Operation with H.D. bale grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 Operation with grapple fork attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12 Remove bucket or attachment (EURO Style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9 Remove bucket or attachment (SSL style) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6 Soft-ride loader suspension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Dealer’s stamp

CNH America LLC reserves the right to make improvements in design and changes in specifications at any time without notice and without incurring any obligation to install them on units previously sold.

Specifications, descriptions, and illustrative material herein are as accurate as known at time of publication, but are subject to change without notice.

Availability of some models and equipment builds varies according to the country in which the equipment is being used. For exact information about any particular product, please consult your Case IH dealer.

Printed in U.S.A. Copyright © 2011 CNH America LLC. All Rights Reserved.

Case IH is a registered trademark of CNH America LLC. Racine Wisconsin 53404 U.S.A.
