1002-39

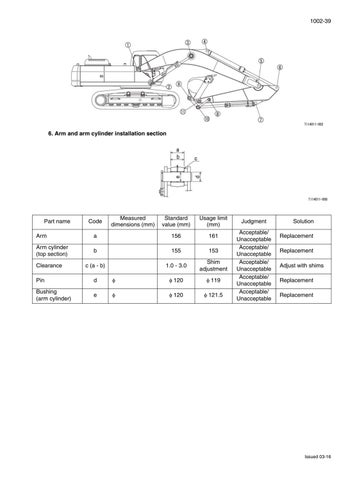

6. Arm and arm cylinder installation section
Part name
Code
Measured dimensions (mm)
Standard value (mm)
Usage limit (mm)
Arm
a
156
161
Arm cylinder (top section)
b
155
153
c (a - b)
1.0 - 3.0
Shim adjustment
Clearance Pin
d
120
119
Bushing (arm cylinder)
e
120
121.5
Judgment Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable
Solution Replacement Replacement Adjust with shims Replacement Replacement
Issued 03-16
