DIVIDED WEIGHT (STANDARD SPECIFICATIONS

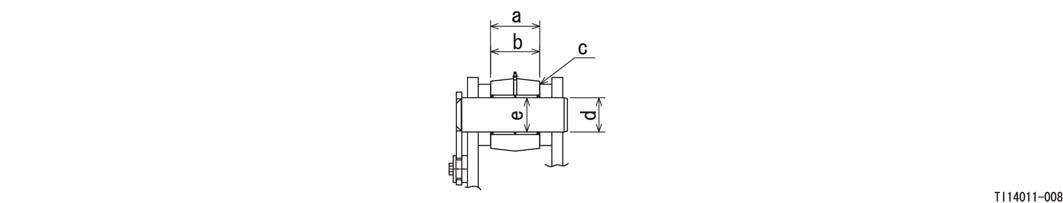

6. Arm and arm cylinder installation section

Part name Code Measured dimensions (mm) Standard value (mm)

Usage limit (mm) Judgment Solution Arm a 156 161 Acceptable/ Unacceptable Replacement Arm cylinder (top section) b 155 153 Acceptable/ Unacceptable Replacement Clearance c (a - b) 1.0 - 3.0 Shim adjustment Acceptable/ Unacceptable Adjust with shims Pin d  120 119 Acceptable/ Unacceptable Replacement Bushing (arm cylinder) e  120 121.5 Acceptable/ Unacceptable Replacement
