1002-35

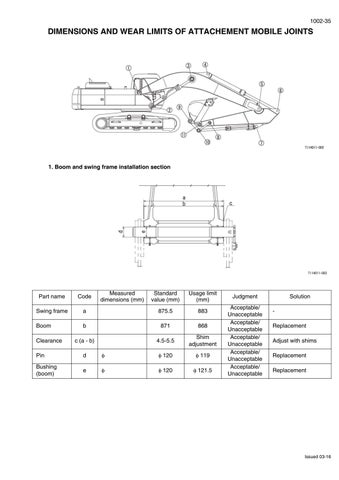

DIMENSIONS AND WEAR LIMITS OF ATTACHEMENT MOBILE JOINTS
1. Boom and swing frame installation section
Standard value (mm)
Usage limit (mm)
a
875.5
883
b
871
868
c (a - b)
4.5-5.5
Shim adjustment
Part name
Code
Swing frame Boom Clearance
Measured dimensions (mm)
Pin
d
120
119
Bushing (boom)
e
120
121.5
Judgment Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable Acceptable/ Unacceptable
Solution Replacement Adjust with shims Replacement Replacement
Issued 03-16
