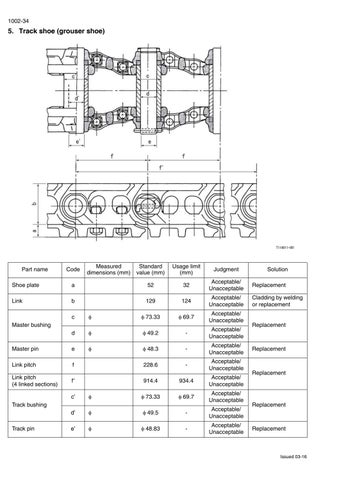

5. Track shoe (grouser shoe)
Part name
Code
Measured dimensions (mm)
Standard value (mm)
Usage limit (mm)
Judgment
Solution
Shoe plate
a
52
32
Acceptable/ Unacceptable
Replacement
Link
b
129
124
Acceptable/ Unacceptable
Cladding by welding or replacement
c
73.33
69.7
Acceptable/ Unacceptable
d
49.2
-
Acceptable/ Unacceptable
Master pin
e
48.3
-
Acceptable/ Unacceptable
Link pitch
f
228.6
-
Acceptable/ Unacceptable
Link pitch (4 linked sections)
f’
914.4
934.4
Acceptable/ Unacceptable
Master bushing
c’
73.33
69.7
Acceptable/ Unacceptable
d’
49.5
-
Acceptable/ Unacceptable
e’
48.83
-
Acceptable/ Unacceptable
Track bushing
Track pin
Replacement
Replacement
Replacement
Replacement
Replacement
