PARKING THE MACHINE

3

2

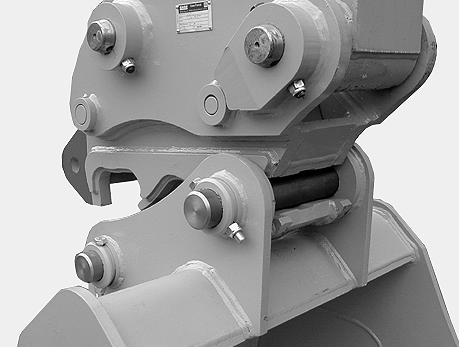

CD00F031 4. Operate the dipper control lever so as to bring the quick coupler hook (2) around the tool pin (3).

CD00F036 5. Operate the bucket control lever so that the pin (3) is completely engaged in the latching hook (2).

CD00F033 6. Raise the dipper and operate the bucket control to extend the bucket cylinder rod completely. 7. Place the switch (1) in the locked position. The audible alarm device will cease functionning. See “Quick coupler locking and unlocking control switch” in the “Controls/Instruments/Accessories” Section.

CP00G001 8. Maintain the pressure in the bucket cylinder to allow the latching hook to close. Raise the attachment so you can see the bucket pin. TRIM THIS EDGE

107
