FUEL TANK FILLER PUMP
TOWING HOLES
WARNING: This is a delicate maneuvrer which is always carried out at the risk of the user. The manufacturer’s warranty does not apply to any incidents or accidents which may occur during towing.
WARNING: The operation must be carried out very slowly, over a short distance and only if it is really unavoidable.

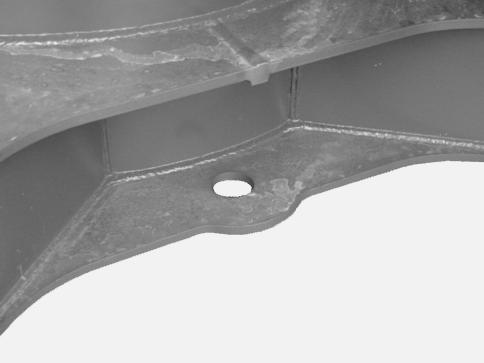

CD00E069 The towing holes, located at the front and the rear of the undercarriage, are intended for moving heavy objects of up to 10 tonnes maximum.
Make sure that the shackles, chains and tackle are in perfect condition and strong enough to move the load. IMPORTANT: The load should always be kept in line with the undercarriage.
ROTATING BEACON (not supplied) CABLE

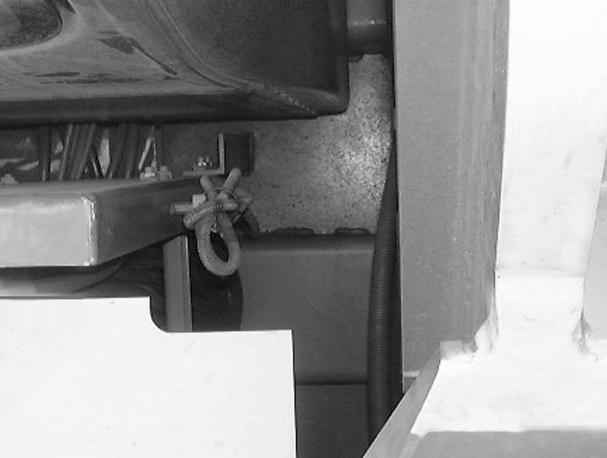

This cable is located behind the righ-hand rear cab upright and can be used for connecting a 24 V rotating beacon (not supplied).
CD01D028 TRIM THIS EDGE
