JOB SITE AND ROAD OPERATION..................................................... 134

STEP 3

PH07600 Release the machine's brakes using the parking and working brake control.

STEP 4 STEP 5

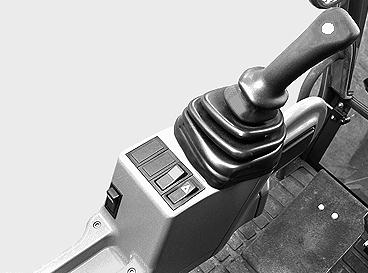

PH07520 Move the travel control lever to the desired position.

STEP 6

PH07533 Make sure the front axle locking switches are in unlocked position (indicator lamp comes on on instrument panel).

PH07532 Push the travel control pedal down. NOTE: Control the travel speed by means of the travel control lever. IMPORTANT: Wait for the machine to come to a complete halt before changing the direction of travel (forward/reverse).

WARNING: It is essential that all travel is undertaken with the front axle unlocked.

143
