ENGINE TROUBLESHOOTING
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
INSPECTING AND SERVICING THE QUICK COUPLER (optional) Recommended weekly checks
Check the assembly hook for wear on the contact face with the pin which can increase the pin passage dimension (maximum wear 2 mm). If wear is considerable, consult your CASE Dealer. Check that the safety shaft is not damaged and that it is securely in place. Replace it if necessary.
Incorrect quick coupler operation
IMPORTANT: Make sure that the attachment is fully lowered to the ground, stop the engine and remove the starter switch key before carrying out any of the following checks.
If the quick coupler does not operate correctly, check the following: -Check that no pin is broken, bent or lost. -Check that the cylinder is not damaged or bent. -Check that there is no leak, etc. at any hydraulic hose. After carrying out these checks, consult your CASE Dealer.
Any modification of the quick coupler without prior authorization can cause serious injury. Do not undertake any modifications without authorization from your CASE Dealer. WARNING: There is a risk of serious injury if maintenance or repairs are not performed correctly. If you do not understand the maintenance procedures, consult your CASE Dealer.
IMPORTANT: If your quick coupler is used in particularly harsh conditions (dusty or corrosive environment, etc...) reduce the service intervals accordingly.
192
TRIM THIS EDGE LEFT PAGE
WELDING ON THE MACHINE
Whenever carrying out a welding operation on the undercarriage or upperstructure carriage as authorized by the manufacturer and in accordance with his instructions, disconnect the batteries, disconnect the alternator B+ and D+ terminal wires and connect the welding apparatus earth cable to the component on which the welding operation is to be performed. Never connect the welding apparatus to the undercarriage when welding on the upperstructure (or viceversa). Never connect the welding apparatus earth to a component of the hydraulic system. WARNING: Any unauthorized modifications made to this machine can cause serious injury. Do not undertake any modifications without first consulting your CASE Dealer.

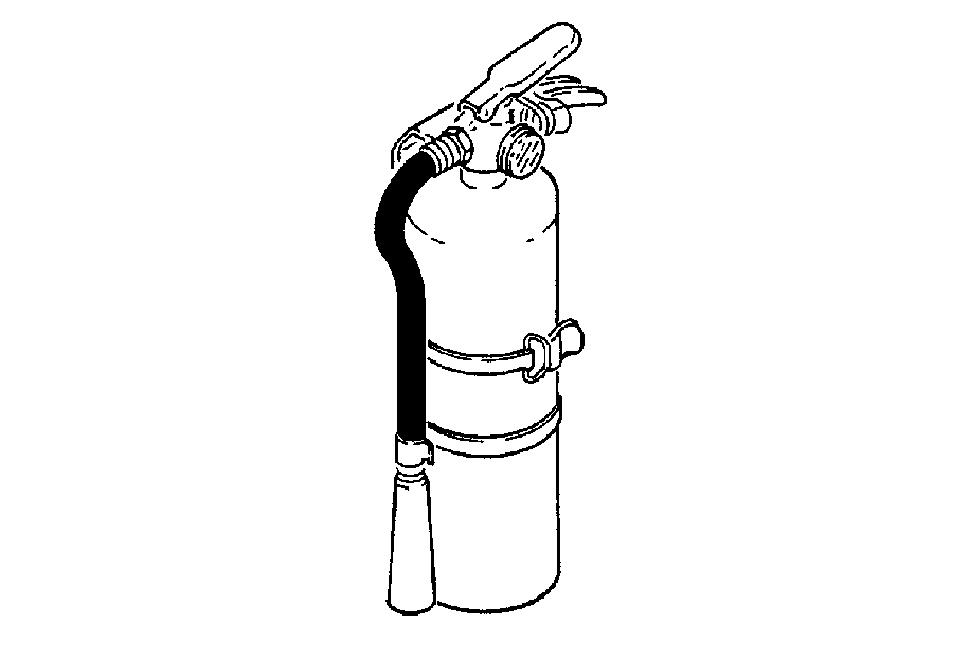

FIRE EXTINGUISHER (not supplied)

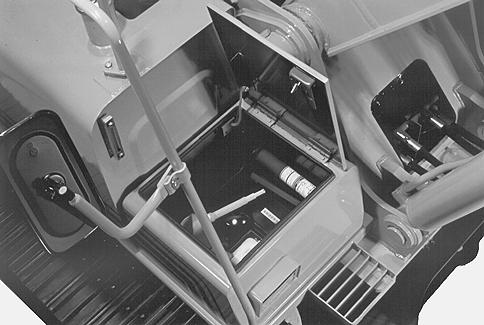

CS98M573 CP99B003 It is strongly recommended to have a fire extinguisher available and to keep it in the front storage box.
Service specifications
Every month : Inspect the extinguisher and check it is not damaged. Every six months : Have the chemical removed and have the fire extinguisher refilled by an approved organization. Every year : Have the fire extinguisher inspected by an approved organization.
193
