OPERATING THE BACKHOE BUCKET

Template Date: 1994_04_29Template Name: OM_1_col

Alt+ to display template informationAlt= to hide template information

TRIM THIS EDGE Stabilize the load a few centimeters above the ground to make sure it is perfectly balanced before trying to move it. All movements must be sure and smooth. Moving quickly does not mean moving roughly. When traveling with a load, make sure you do the following : -Place the upperstructure in line with the undercarriage. -Bring the load as close as possible to the undercarriage and the ground. -Be sure all travel is undertaken in slow speed only.

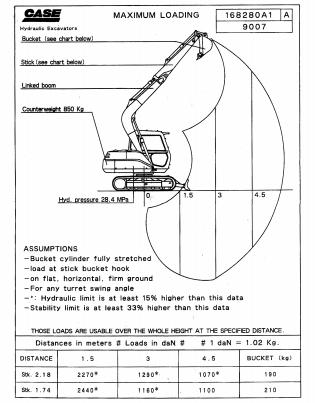

LOAD HANDLING CHART

CS99J507 The load handling chart shows the various permitted loads which can be lifted at the various reaches depending on the attachment installed on the machine. See “Maximum loads” in the “Specifications” Section.

The machine must be on flat, hard, level ground. The loads are given in daN (1 daN = 1.02kg), for a machine without tool, with the bucket cylinder rod completely retracted, at 360° upperstructure swing, with a safety factor : - of 33% on stability, - of 15% on the hydraulic limit,

The load fixing point is the eye on the bucket connecting rod. See “Load handling eye” in the “Controls/Instruments/Accessories” Section.

The reach is given from the swing axis of the machine and the height is taken from the load fixing point. NOTE : The loads given are valid for the total working range height at the reach point indicated.
