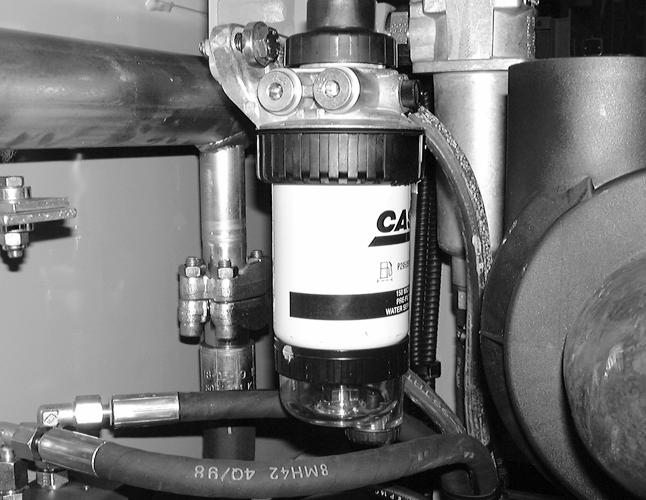

Fuel pre-filter with sediment bowl

Precleaner sediment removal

1

Filter element replacement

IMPORTANT: The filter element should only be replaced when the fuel tank is nearly empty, to prevent too much fuel from flowing out.

STEP 1

2

CD99J008 Place a receptacle of a suitable capacity under the precleaner. Loosen the bleed screw (1) and unscrew the drain tap (2) a few turns to allow the dirty fuel to flow out, then close the tap. Retighten the bleed screw.

NOTE: A coin can be used to loosen and tighten the bleed screw.

CD99J008 Clean the area around the precleaner head. Place a receptacle of a suitable capacity under the precleaner and remove the filter element by turning the knurled bushing. TRIM THIS EDGE
