ENGINE ALTERNATOR BELT AND FAN Service specifications

Visual check................................................................Every 10 hours or every day Check drive system.....................................................................Every 1000 hours Check belt tension......................................................................Every 1000 hours

Tools required

-One 13 mm wrench for hexagonal head screws -One 15 mm wrench for hexagonal head screws STEP 1 STEP 3

CD99G042 PE06831

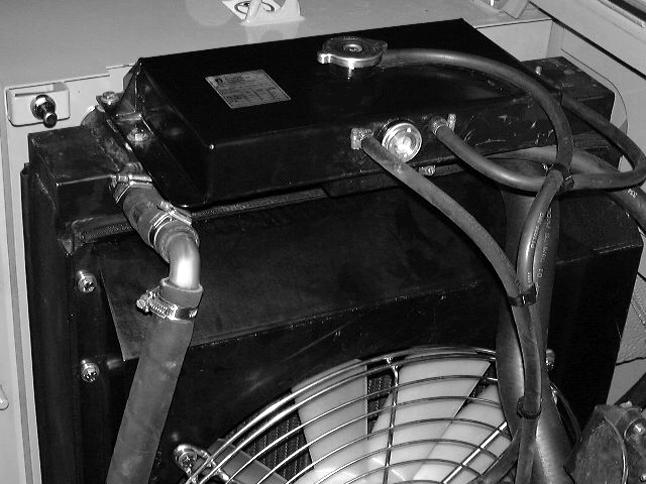

Remove the fan guard.

STEP 2

Check that the fan is in proper working order (the hub should turn freely without excessive play).

STEP 4

Check the condition of the belt. Replace it if it is worn or damaged. Install the belt.

PE06828 Loosen the tension roller and remove the belt. Check that the tension roller and pulley are in proper working order (the pulley should move freely).

286
