TOWING THE MACHINE
STEP 5 STEP 8
PH07911
PH00305 Remove the four cab mounting screws. NOTE: To access the screws at the front of the cab, the floor cover must be raised.
STEP 6
Raise the cab carefully until it is completely removed from the machine.
STEP 7
Lower the cab to the ground and support it with wooden blocks.
PH07824 Remove the lifting equipment and install the two plastic plugs.
Installation
Tools required
-One 10 mm wrench for hexagonal head screws -One 22 mm wrench for hexagonal head screws -Suitable lifting equipment
STEP 1

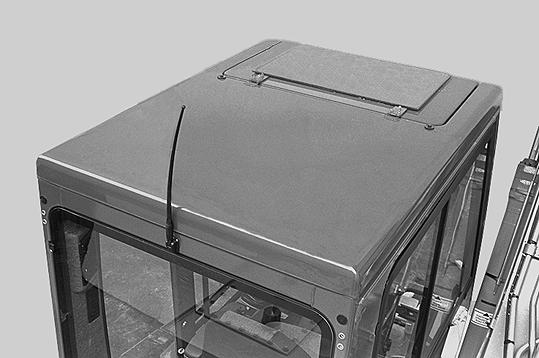

PH07824 Remove the two plastic plugs from the cab roof and install suitable lifting equipment.
143
TRIM THIS EDGE RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
STEP 2
Raise the cab carefully and position it correctly on the cab floor. IMPORTANT: Make sure that the seal located at the back of the cab is correctly in place.
STEP 3 STEP 4

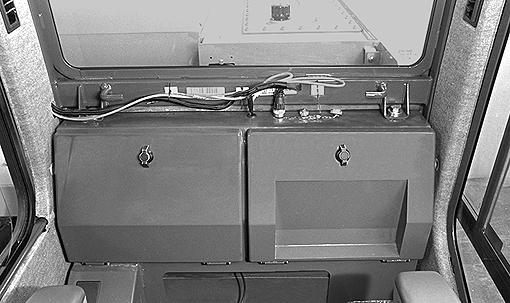

PH07911 PH07911 Reconnect the electrical power point to its base after removing the protective cap. Reconnect the windshield washer hose. Reconnect the radio aerial (if fitted).
STEP 5

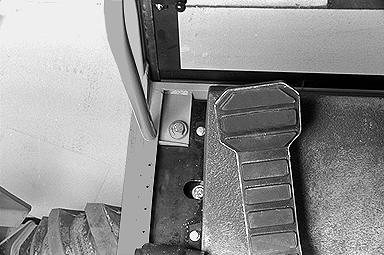

PH00305 Install and tighten the four cab mounting screws to a torque of 120 Nm and reposition the floor cover correctly at the front of the operator’s compartment. Install the trim.

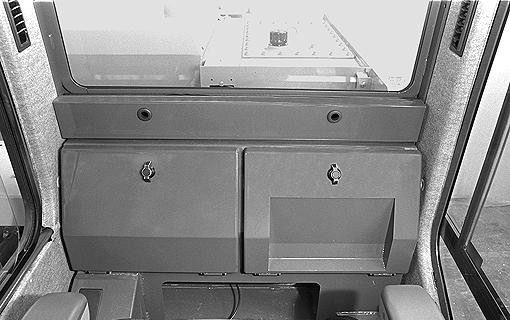

PH07909
144
TRIM THIS EDGE LEFT PAGE
STEP 6
PH07824 Remove the lifting equipment and install the two plastic plugs on the cab roof.
TRIM THIS EDGE
145
