OPERATOR’S SEAT
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
Operator’s compartment fan (optional)
Pilot system cancellation control switch (specific to certain countries)
CP95N001 Located on the rear right-hand side of the operator’s seat, the fan is controlled by a three-position switch (low, off, high) located on the bracket. To use the fan, the electric cable must be inserted into the cigarette lighter socket.
Articulated or adjustable boom control (iffitted)
PH07604B This control switch is located on the lefthand control arm and is used when driving on the road. When this control switch is operated, it is impossible to operate the stabilizers, the dozer blade (if fitted) or the attachment, and the indicator lamp on the instrument panel comes on.
PH07521 Located on the top of the right-hand control lever, this push-button is used to control the articulated boom or the adjustable boom (whichever is installed). Press the right of the button to open the articulated boom or to extend the mobile component of the adjustable boom. Press the left of the button to close the articulated boom or to retract the mobile component of the adjustable boom.
80
TRIM THIS EDGE LEFT PAGE
Air conditioning controls (optional)
Only for 788 Series
The air conditioning controls are located on the rear right-hand side of the operator’s seat.
CD98D030 This control is used to select the desired blower speed. Position “0”: Off Position “1”: 1st speed Position “2”: 2nd speed Position “3”: 3rd speed
CD98D030 The air vents control the direction of air flow.
IMPORTANT: When using the air conditioning, the air vents must be in the open position.
CD98D030 This control is used to adjust the temperature. Turn the button to obtain the desired temperature. IMPORTANT: When using the air conditioning, all cab windows, the windshield and the cab door must be closed.

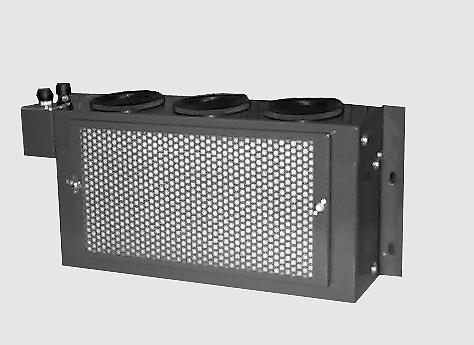

CD98D024 To access the dust filter, remove the two wing nuts and then remove the front panel. NOTE: To ensure proper functioning and full effectiveness of the air conditioning system, it must be used at least once a week, even if only for a short time. For maintenance of the air conditioning system components, see “Air conditioning” in the “Maintenance/Adjustments” Section.
81
TRIM THIS EDGE RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
Electric travel control (optional)
TRIM THIS EDGE
CS98M613 This control is located on top of the righthand control lever and is used to select direction of travel. See “Electric travel” in the “Operating Instructions” Section.
82
