TRIM THIS EDGE To remove the side panels, remove the retaining screws. IMPORTANT: Do not operate the machine if the side panels have been removed.

WARNING: Before travelling, make sure the access panels are fastened in place.

788 Series

CD99G028

RIGHT-HAND SIDE DOOR

788 Compact Series

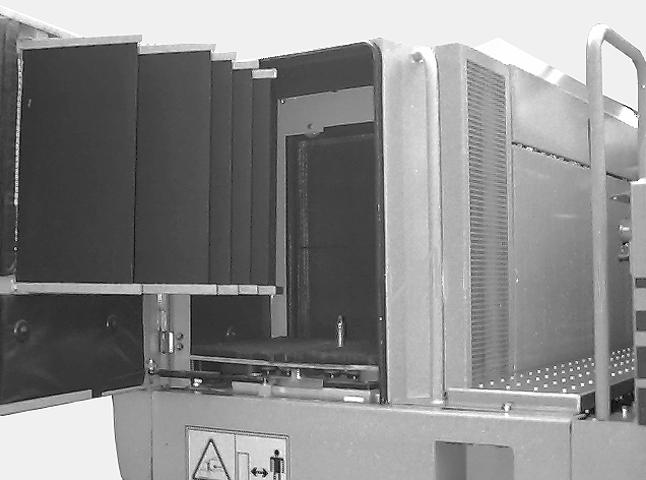

CD98J001 The right-hand door provides access to the walkway, the radiator, the oil cooler and the batteries.

CD96C038 The right-hand door provides access to the upperstructure, the oil cooler and the batteries. To hold the door open, remove the strut from its housing and install it in the hole provided. When closing, place the strut back in its housing.

WARNING: Never leave tools or other items inside the air intake compartment.

WARNING: Before travelling, make sure the side door is securely latched.

NOTE: Use the starter switch key to lock the side door.

100

TRIM THIS EDGE LEFT PAGE

788 Series ELECTRICAL SOCKET 788 Compact Series

CD99G030

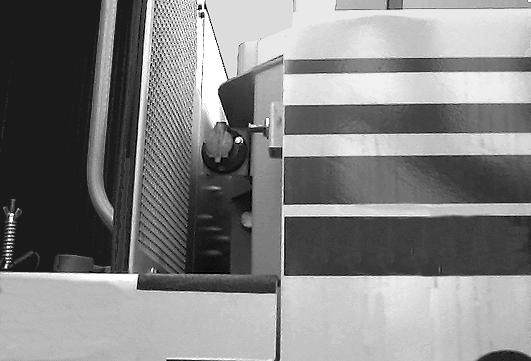

CD96C040 Located on the fuel tank, on the walkway side, the electrical socket (24volts, 15amps) can be used during service operations to connect an inspection lamp or any other 24 volt electrical appliance.
