BEFORE OPERATING THE MACHINE

ROTARY BEACON (specific to certain countries)

The rotary beacon must be installed for road travel. See “Road travel” in the “Job Site and Road Operation” Section.

STEP 1 STEP 3

PG02700 Remove the protective cap from the end of the tube located at the top of the cab.

STEP 2

PG02702

Tighten the wingnut. The rotary beacon is turned on and off by the switch on the instrument panel. IMPORTANT: The rotary beacon must be on when travelling. IMPORTANT: When removing the rotary beacon, make sure to put the cap back on the end of the tube. NOTE: To replace the bulb see “Replacing a bulb” in the “Electrical System” Section.

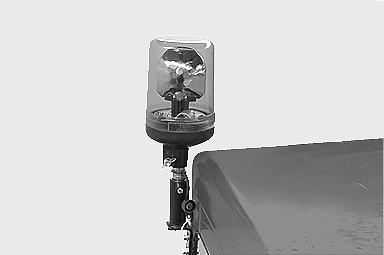

PG02702 Place the rotary beacon on the end of the tube. TRIM THIS EDGE

107
