SLEEVES FOR THREADED PINS
STEP 5 STEP 7

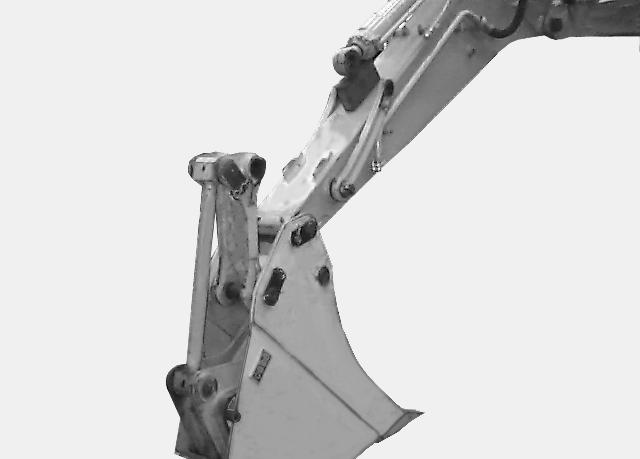

CD98D034 Start the engine and retract the bucket cylinder.
STEP 6

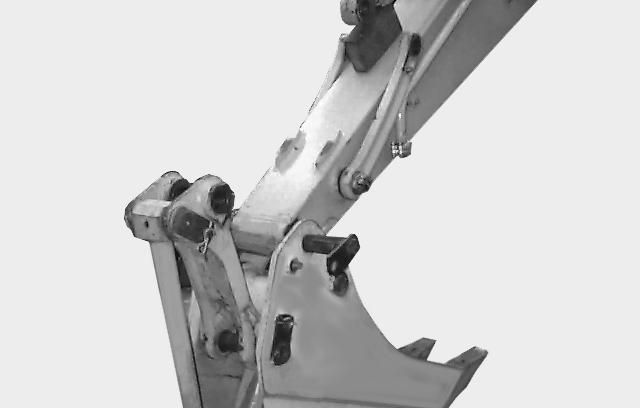

CD98D033 Using the screwdriver, remove the split pin from the bucket/dipper linkage pin. Then remove the bucket/dipper linkage pin.
STEP 8
CD98D034 Raise the attachment so that the bucket stabilizes. Rest the bucket on the ground. Stop the engine and remove the starter switch key.
CD98D032 Start the engine. Operate the attachment controls so as to disengage the dipper from the bucket.
WARNING: The tube installed to block the bucket ejector must never be removed when the bucket is in storage.
IMPORTANT: The ejector must be blocked whenever the bucket is transported or handled.
