PRE-STARTING PROCEDURE (CONT’D)

Seat Adjustment

Figure OI-64

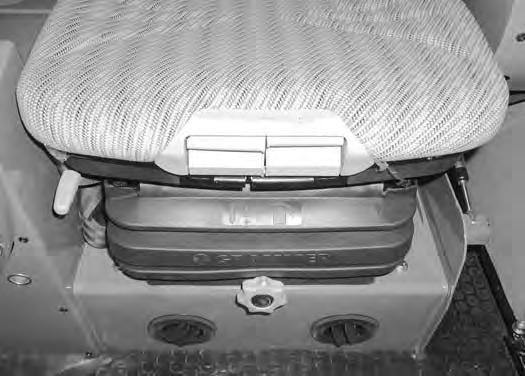

Pull up on the lever (Item 1) [Figure OI-64] to adjust the seat forward or backward.

Pull up on the lever (Item 2) [Figure OI-64] to adjust the bottom of the seat forward or backward.

Pull up on the lever (Item 3) [Figure OI-64] to adjust the incline of the seat bottom.

Turn the adjustment knob (Item 4) until the operators weight is shown in the window (Item 5) [Figure OI-64]. The seat is adjustable from 110 lb. (50 kg) to 285 lb. (130 Kg).

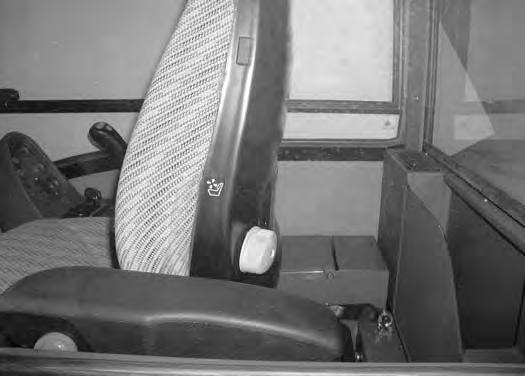

Turn the adjustment knob (Item 1) [Figure OI-66] to adjust the lumbar support in the seat back.

Pull up on the lever (Item 1) [Figure OI-65] to change the incline of the seat back.

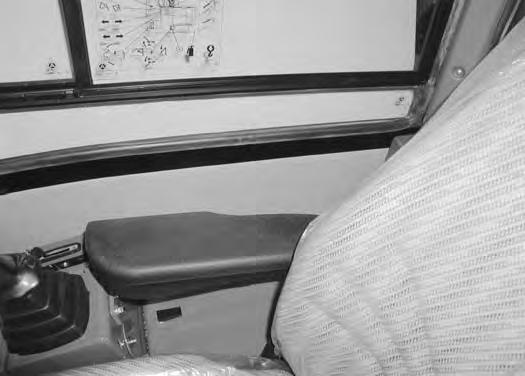

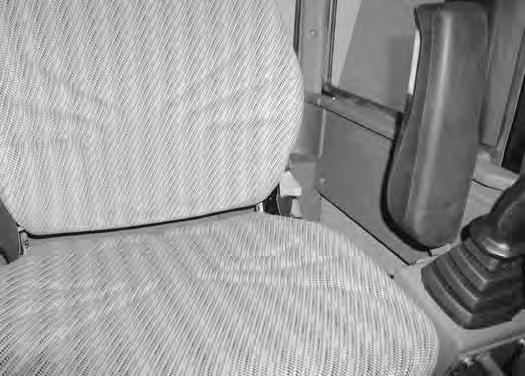

Raise the arm rest (Item 1) [Figure OI-67]

NOTE: The right arm rest is shown. The procedure is the same for the left arm rest.

PRE-STARTING PROCEDURE (CONT’D)

Seat Adjustment (Cont’d)

Seat Belt Adjustment
