PRE-STARTING PROCEDURE

Operation & Maintenance Manual And Operator’s Handbook Locations

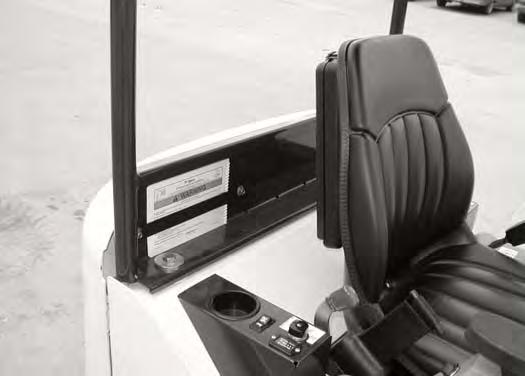

Read and understand the Operation & Maintenance Manual that is stored in the container (Item 1) [Figure OI48] (located on the back of the operator seat) and the Operator’s Handbook (Item 1) [Figure OI-49] or [Figure OI-50] (located at the right rear corner of the canopy or right rear side of the cab) before operating.

PRE-STARTING PROCEDURE (CONT’D)

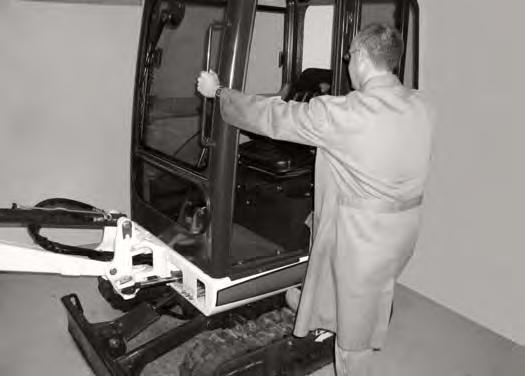

Entering The Excavator

Figure OI-51

Canopy Models

Cab Models

Warning

Instructions are necessary before operating or servicing machine. Read and understand the Operation & Maintenance Manual, Operator’s Handbook and signs (decals) on machine. Follow warnings and instructions in the manuals when making repairs, adjustments or servicing. Check for correct function after adjustments, repairs or service. Untrained operators and failure to follow instructions can cause injury or death.

W-2003-0903

Seat Adjustment

Figure OI-53

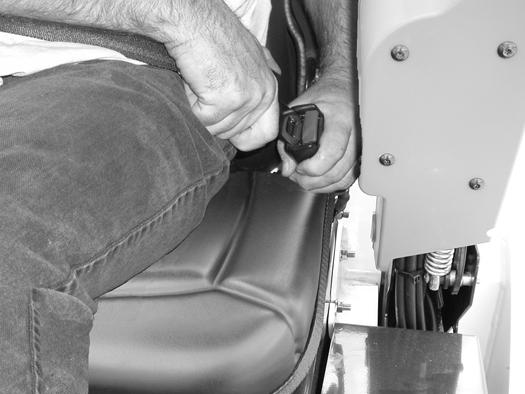

Seat Belt Adjustment

Figure OI-54
