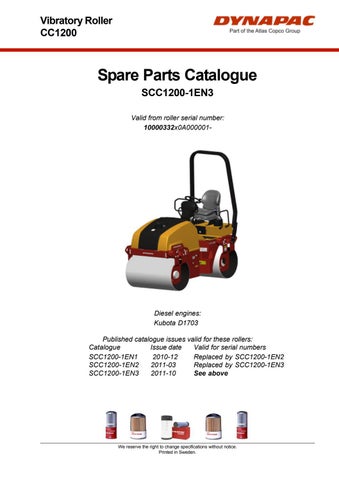

Atlas Copco Dynapac CC1200 Vibratory Roller Spare Parts Catalogue SCC1200-1EN3 - PDF DOWNLOAD

Vibratory Roller CC1200

Spare Parts Catalogue SCC1200-1EN3 Valid from roller serial number: 10000332x0A000001-

Diesel engines: Kubota D1703 Published catalogue issues valid for these rollers: Catalogue Issue date Valid for serial numbers SCC1200-1EN1 2010-12 Replaced by SCC1200-1EN2 SCC1200-1EN2 2011-03 Replaced by SCC1200-1EN3 SCC1200-1EN3 2011-10 See above SCC624HF-2EN1

2010-02

10000324x0A000001 -

We reserve the right to change specifications without notice.

Printed in Sweden.

II

RESERVDELSBESTÄLLNING

ORDERING SPARE PARTS

Följande uppgifter ska lämnas vid beställning av reservdelar för att undvika leveransfel: 1. Maskintyp.

2. Vältens serienummer.

3. Antal av önskad reservdel.

4. Reserdelens artikelnummer.

5. Reservdelens benämning.

6. Måttuppgifter vid beställning av metervara.

To avoid errors in delivery, please give the following information when ordering spare parts: 1. Type of machine.

2. Roller serial number.

3. Quantity required.

4. Part number.

5. Parts denomination.

6. Dimensions when ordering per length.

ERSATZTEILBESTELLUNG

ORDINI DI RICAMBI

Zur Vermeidung von Fehllieferungen sind bei der Bestellung von Ersatzteilen folgende Angaben zu machen: 1. Maschinentyp.

2. Herstellungsnummer.

3. Bestellmenge. (Quantity) 4. Ersatzteilnummer. (Part Nº) 5. Ersatzteilbenennung. (Denomination) 6. Massangaben bei Bestellung von Meterware.

Per evitare errori nelle consegne di ricambi, Vi preghiamo di comunicarci le seguenti informazioni al momento dell 'ordinazione: 1. Tipo di macchina.

2. Numero di serie della macchina.

3. Quantità dei pezzi desiderati. (Quantity) 4. Numero di codice del pezzo. (Part Nº) 5. Descrizione del pezzo di ricambio. (Denomination) 6. Misura, in caso di ordine per metro.

PEDIDO DE RECAMBIOS

COMMANDE DE PIECES DE RECHANGE

Para evitar errores en las entregas, deberán indicarse los siguientes datos al hacer un pedido de recambios: 1. Tipo de máquina.

2. Número de serie.

3. Cantidad de piezas deseadas. (Quantity) 4. Número de artículo de la pieza de recambio. (Part Nº) 5. Denominación de la pieza. (Denomination) 6. Indíquese la medida al solicitar un artículo que se expide por metros.

Les indications suivantes doivent être fournies lors de la commande de piéces de rechange, afin d'éviter toute erreur de livraison: 1. Type de machine.

2. Numéro de série.

3. Quantité désirée de pièce de rechange. (Quantity) 4. Numéro de la piéce de rechange. (Part Nº) 5. Dénomination de la piéce de rechange. (Denomination) 6. Longueur en cas de commande au mètre.

YOUR AGENT/DEALER:

III

The text pages is structured as the picture on the right.

Text pages

1. This is the remarks for specific items and the descriptions of the remarks is at the bottom of the parts list.

2. Parts indicated by a dot and moved to the right are included when buying the assembled unit above.

3. Spare parts Class code for a specific part.

"A" = 3 or more units/year, "B" = 2 or more units/year, "C" = 1 or more units/year, "D" = at least 1 unit/year.

PARTS INFO

SERVICE INFO

GROUP

Changes PAGE

Notes

NOTES

IV

Notes

V

PÄRMETIKETT

BINDER LABEL

För att undvika fel vid reservdelsbeställning finns här nedan två etiketter som passar i fickorna på pärmarnas ryggar. På dessa kan man se från vilket vältnummer av aktuell maskin reservdelskatalogen gäller. Gör så här: 1. Tag denna sida ur pärmen.

2. Klipp ut etiketten till VÄNSTER (1) och sätt in den i fickan på DENNA pärmens rygg.

3. Finns det en etikett till HÖGER (2), kan denna användas på pärmen för FÖREGÅENDE utgåva av denna katalog.

4. Kasta detta papper.

To avoid errors when ordering spare parts use the labels below to identify the catalogues on the back of the binder. The label contain the serial number range for which the catalogue is valid. Do like this: 1. Remove this page from the binder.

2. Cut out the LEFT label (1) and put it on THIS binders back.

3. If there is a label to the RIGHT (2), it can be used on thebinder for PRECEDING issue of this catalogue.

4. Throw away this paper.

KATALOG-BESCHRIFTUNG

ETICHETTAPOSTASULRACCOGLITORE

Zur Vermeidung von Fehlen bei der Ersatzteilbestellung benutzen Sie bitte die unteren Beschriftungen, um die Kataloge auf der Rückseite zu kennzeichen. Auf der Beschriftung ist angegaben, für welche Maschinennummern der jeweilige Katalog gültig ist.

Ablauf: 1. Nehmen Sie dieses Blatt aus dem Katalog.

2. Schneiden Sie die LINKE Beschriftung (1) aus. Schieben Sie die Beschriftung in die tasche auf DEM Katalogrücke.

3. Sollte die Beschriftung unten RECHTS (2) mitgeliefert werden, kennzeichen Sie damit bitte die ÄLTERE Ausführung dieses Kataloges.

4. Den Rest dieses Blattes bitte vernichten.

Per evitare errori quando ordinate pezzi di ricambio, usate le etichette in calce che servono ad identificare i cataloghi sul retro del raccoglitore. L'etichetta indica il numero di matricola delle maccine prese in considerazione nel catalogo.

1. Rimuovete questa pagina dal raccoglitore.

2. Ritagliate l'etichetta posta a SINISTRA (1) e ponetela sul retro DEL raccoglitore.

3. Se trovate anche un'etichetta sulla DESTRA (2), ritagliatela e ponetela sul raccoglitore relativo alla PRECEDENTE edizione del catalogo.

4. Distruggete questo foglio.

ETIQUETA PARA LA CARPETA

ETIQUETAGE DU CATALOGUE

Para evitar errores al pedir repuestos utilicen las etiquetas abajo descritas para identificar los catálogos en la parte trasera de la carpeta. En la etiqueta se ven los números de referencia de la serie para la cual es válido el catálogo.

Instrucciones: 1. Quitar esta página de la carpeta.

2. Corta la etiqueta IZQUIERDA (1) y ponerla est ESTA carpeta en la parte trasera.

3. Si hay una etiqueta en la parte DERECHA (2) se puede utilizar en la carpeta para el catálogo que PRECEDE a esta.

4. Tirar esta hoja.

Afin d'éviter des erreurs lors de commandes de pièces de rechange, nous vous conseillons d'apposer les marquages ci-dessous à l'arrière du classeur, pour identifier les catalogues. Ce marquage indique les numéros de série pour lesquels le catalogue est adapté. Il convient de procéder de la façon suivante: 1. Retirez cette page du classeur.

2. Découpez l'étiquette de GAUCHE (1), et apposez-la à l'arrière de CE catalogue.

3. Si il y a une étiquette à DROITE (2), vous pourrez l'apposer sur le classeur de l'edition PRECEDENTE du catalogue.

4. Détruire cetta feuille.

1 .

CC1200 Catalogue SCC1200-1EN3 Valid from serial number: *10000332x0A000001-*

Dynapac Compaction Equipment AB

TABLE OF CONTENTS

Page

CC1200 S/N 10000332x0A000001 Service kits

2 4

4812156265 Service kit 50h

6

4812156288 Service kit 250 / 750 h

8

4812156266 Service kit 500h

10

4812156267 Service kit 1000 h

12

Repair kits

14

4700938908 Eccentric shaft kit

16

4700938892 Drum rotation kit

18

4700938914 Scraper kit (12 mm)

20

4700938885 Shock absorber kit, drum

22

4700938575 Steering hitch kit

24

Frame

26

Frame, front Steering hitch

28 30

Frame, rear Steering hitch

32 30

Scrapers, STD

34

Scrapers, spring loaded (option)

36

Sprinkler system

38

Towing device (option)

42

Drum

44

Engine room

46

Engine module 4812110881 Diesel engine, Kubota D1703

48 50

Exhaust system

52

Fan

54

Air filter

56

Expansion tank

58

Water cooler

60

Engine hood Up to 00A008121

62

4812115506 Engine hood, cpl From 00A008122 Up to 00A008239 Engine hood From 00A008240

64 62

4812115506 Engine hood, cpl From 00A008241

64

Casing Up to 00A008121

66

Casing From 00A008122 Up to 00A008239

68

Casing From 00A008240

66

Casing From 00A008241

68

TC 1

Dynapac Compaction Equipment AB

TABLE OF CONTENTS

Page

Fuel system

70

Cooler hoses

72

Air hoses

74

Fuel hoses

76

Hydraulic system

78

Propulsion system 4700390742 Hydraulic motor, propulsion, drum

80 84

Vibration system

86

Steering system 4700374603 Steering cylinder

90 92

Brake system

94

Flow divider (option)

96

Vibration shut-off Front drum (option)

98

Electrical equipment

100

Horn module

102

Battery module

104

Battery disconnector

106

Cable harness

108

Working lights Working lights front Working light rear Working light (option) rear Casing rear Cover plate rear

110 112 114 116 118 120

Rotating beacon for ROPS (option)

122

Rotating beacon for ROPS ignition controlled (option)

124

4812115525 Rotating beacon, w/o ROPS (option)

126

Driving lights Front RH (option) Driving lights Front Driving lights Rear (option) 4812112472 Cable harness

128 130 132 134

Driving lights Front LH (option) Driving lights Front Driving lights Rear (option) 4812112472 Cable harness

136 138 132 134

Driving lights Rear (option)

132

Direction indicator (option)

140

Backup alarm (option)

142

Sprinkler Wheels (option)

144

Drivers platform

146

Platform module Platform mount

148 150

TC 2

Dynapac Compaction Equipment AB

TABLE OF CONTENTS

Page

Instrument panel module

152

Steering wheel

154

Control module

156

Standard ECU-module

158

Forward-Reverse control module 4812113676 Forward-reverse control

160 162

Forward-reverse control left (option) 4812113676 Forward-reverse control

164 162

Cover plate, Dual F&R-control left side

166

Throttle control cpl

168

Throttle control cpl, Dual frequency (option)

170

Arm rests, seat belt, laterally adjusting

172

Step (option)

174

Driver seat without armrests (option)

176

Driver seat, Luxury without armrests (option)

178

Seat belt module 3"

180

Seat belt module 2"

182

Rear view mirror (option)

184

ROPS, foldable (option)

186

Rops (option)

188

Canopy (option)

190

Decals

192

Decals

194

Optional equipment

196

Fire extinguisher

198

Tool equipment

200

SMV-sign and Licence plate

202

Brake release, propulsion motor Poclain

204

Brake release, high torque drum drive

206

High torque drum drive " Short" 4700380594 Hydraulic motor, propulsion, drum

208 210

Vibration shut-off Front drum (option)

98

TC 3

Dynapac Compaction Equipment AB CC1200 S/N 10000332x0A000001 -

2

SCC1200-1EN3

Dynapac Compaction Equipment AB CC1200 S/N 10000332x0A000001 Item Part No

10 20 30 50 60 70 80 91

SCC1200-1EN3

Rem Qty Description 1 1 1 2 1 1 1 1 1 1

Code

Service kits ( Page 4 ) Repair kits ( Page 14 ) Frame ( Page 26 ) Drum ( Page 44 ) Engine room ( Page 46 ) Hydraulic system ( Page 78 ) Electrical equipment ( Page 100 ) Drivers platform ( Page 146 ) Decals ( Page 192 ) Optional equipment ( Page 196 )

3

Dynapac Compaction Equipment AB Service kits

4

SCC1200-1EN3

Dynapac Compaction Equipment AB Service kits Item Part No 1 2 3 4

4812156265 4812156288 4812156266 4812156267

SCC1200-1EN3

Rem Qty Description 1 1 1 1

Code A

Service kit 50h ( Page 6 ) Service kit 250 / 750 h ( Page 8 ) Service kit 500h ( Page 10 ) Service kit 1000 h ( Page 12 )

A A

5

Dynapac Compaction Equipment AB 4812156265 Service kit 50h

6

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812156265 Service kit 50h Item Part No 2 3 4 5

4812156259 4812156263 4812156264 4812113328

SCC1200-1EN3

Rem Qty Description 1 1 1 1

Code A A A A

Engine oil filter element Fuel filter element Pre Fuel filter element Hydraulic oil filter element

7

Dynapac Compaction Equipment AB 4812156288 Service kit 250 / 750 h

8

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812156288 Service kit 250 / 750 h Item Part No 2

4812156259

SCC1200-1EN3

Rem Qty Description 1

Code A

Engine oil filter element

9

Dynapac Compaction Equipment AB 4812156266 Service kit 500h

10

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812156266 Service kit 500h Item Part No 2 3 4 5

4812156259 4812156263 4812156264 4812156260

SCC1200-1EN3

Rem Qty Description 1 1 1 1

Engine oil filter element Fuel filter element Pre Fuel filter element V-belt

Code A A A A

11

Dynapac Compaction Equipment AB 4812156267 Service kit 1000 h

12

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812156267 Service kit 1000 h Item Part No 2 3 4 5 6 7 8 9 10

4812156259 4812156263 4812156264 4812156260 4812113328 4700939802 4700939803 4700357138 4812156261

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1 1 1

Engine oil filter element Fuel filter element Pre Fuel filter element V-belt Hydraulic oil filter element Air filter element Main Air filter element Safety Ventilating filter Valve cover gasket

Code A A A A A A A A A

13

Dynapac Compaction Equipment AB Repair kits

14

SCC1200-1EN3

Dynapac Compaction Equipment AB Repair kits Item Part No 1 2 3 4 5

4700938908 4700938892 4700938914 4700938885 4700938575

SCC1200-1EN3

Rem Qty Description 2 2 2 1

Eccentric shaft kit ( Page 16 ) Drum rotation kit ( Page 18 ) Scraper kit (12 mm) ( Page 20 ) Shock absorber kit, drum ( Page 22 ) Steering hitch kit ( Page 24 )

Code D C B A D

15

Dynapac Compaction Equipment AB 4700938908 Eccentric shaft kit

16

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700938908 Eccentric shaft kit Item Part No 1 2 3 4

4700938908 4700160132 4700163049 4700923951 4700904258

SCC1200-1EN3

Rem Qty Description 1 1 2 2

Eccentric shaft kit ( Page 16 ) O-ring 124, 50x3, 00 Sealing O-ring Spherical roller bearing

Code D B B C D

17

Dynapac Compaction Equipment AB 4700938892 Drum rotation kit

18

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700938892 Drum rotation kit Item Part No 1 2 3

4700938892 4700160132 4700111018 4700163049

SCC1200-1EN3

Rem Qty Description 1 1 1

Drum rotation kit ( Page 18 ) O-ring 124, 50x3, 00 Ball bearing Sealing

Code C B D B

19

Dynapac Compaction Equipment AB 4700938914 Scraper kit (12 mm)

20

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700938914 Scraper kit (12 mm) Item Part No 1

4700938914 4700385675

SCC1200-1EN3

Rem Qty Description 4

Scraper kit (12 mm) ( Page 20 ) Scraper

Code B A

21

Dynapac Compaction Equipment AB 4700938885 Shock absorber kit, drum

22

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700938885 Shock absorber kit, drum Item Part No 1 2 3

4700938885 4700345215 4700357222 4812156170

SCC1200-1EN3

Rem Qty Description 8 4 1

Shock absorber kit, drum ( Page 22 ) Shock absorber Shim T=1 mm Instructions

Code A A D

23

Dynapac Compaction Equipment AB 4700938575 Steering hitch kit

24

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700938575 Steering hitch kit Item Part No 1 2 3 4 5 6 7 8 9 10 11 13 14 A)

Rem Qty Description

4700938575 4700902063 4700902062 4700902061 4700926214 4700167044 A 4700160112 4700892179 4700357418 4700347153 4700347154 4700347155 4700938534

1 1 2 1 2 1 1 2 2 2 2 1 1

Steering hitch kit ( Page 24 ) Bushing Bushing Bushing Grease fitting V-ring O-ring O-ring Sealing Shim T=0,2 mm Shim T=0,4 mm Shim T=0,8 mm Lube grease Workshop manual W1048***

Code D D D D C B C D B C C C A

For improved function this replaces earlier used 4700160032

SCC1200-1EN3

25

Dynapac Compaction Equipment AB Frame

26

SCC1200-1EN3

Dynapac Compaction Equipment AB Frame Item Part No 2 3 4 5 6 7

SCC1200-1EN3

Rem Qty Description 1 1 2 2 1 1

Code

Frame, front ( Page 28 ) Frame, rear ( Page 32 ) Scrapers, STD ( Page 34 ) Scrapers, spring loaded (option) ( Page 36 ) Sprinkler system ( Page 38 ) Towing device (option) ( Page 42 )

27

Dynapac Compaction Equipment AB Frame, front

28

SCC1200-1EN3

Dynapac Compaction Equipment AB Frame, front Item Part No 1 3 4 5 9 11 13 16 17 18 19 21 33 34 35 36 37 38 39 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57

4812112248 4812112446 4812112447 4700902100 4700923247 4700379179 4700904232 4700904230 4700904229 4812110288 4700902520 4700500100 4812113079 4812113080 4812111890 4812111891 4812113654 4812113532 4700357487 4700357489 4700902171 4700902172 4700500016 4700600004 4700615076 4700349880 4700500019 4700349879 4812113924 4700902101 4700393540 4812113018 4700586018

SCC1200-1EN3

Rem Qty Description 1 1 1 1 4 12 6 16 16 16 12 2 2 1 1 2 1 1 2 1 1 1 2 2 4 2 2 1 14 1 2 4 4 4 4

Steering hitch ( Page 30 ) Frame, front Fork Fork Screw Screw M16x160 Holder Washer Steel plain washer Steel plain washer 8,4x16x1,5 Screw Screw Screw Bracket Bracket Rubber cloth Rubber cloth Rubber cloth Rubber cloth Steering hitch lock . Shaft . Hair pin . Clamp . Cover plate . Screw M6x55 8.8 A2K . Washer . Washer 7,0x25x1,5 O-ring Hexagon head screw M8x16H 8,8 Cover Spacer block Screw Threaded plate Shock absorber Hexagon lock nut

Code C C C B C C C C C C D D D D D D D D D D C C C C C D D C D A C

29

Dynapac Compaction Equipment AB Steering hitch

30

SCC1200-1EN3

Dynapac Compaction Equipment AB Steering hitch Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 A)

Rem Qty Description

4700358976 4700358978 4700357031 4700357038 4700357039 4700902063 4700902062 4700902061 4700902060 4700902059 4700600008 4700926214 4700167044 A 4700500028 4700892179 4700357418 4700347153 4700347154 4700347155 4700902576

1 1 2 1 2 1 1 2 1 6 14 2 2 8 1 2 N N N 8 8 2

Bearing housing Hitch shaft Bracket Bracket Shaft Bushing Bushing Bushing Lock nut Screw Washer Grease fitting V-ring Screw O-ring Sealing Shim T=0,2 mm Shim T=0,4 mm Shim T=0,8 mm Screw Washer Cover

Code D D D D C D D D C C C C B C D B C C C

For improved function this replaces earlier used 4700160032

SCC1200-1EN3

31

Dynapac Compaction Equipment AB Frame, rear

32

SCC1200-1EN3

Dynapac Compaction Equipment AB Frame, rear Item Part No 1 2 4 5 6 7 10 11 13 16 17 19 40 41 42 43

4812112250 4812112446 4812112447 4700357222 4700357221 4700927396 4700500094 4700379179 4700904232 4700904230 4812110288 4700357459 4812113924 4700902101 4700393540

SCC1200-1EN3

Rem Qty Description 1 1 1 1 N N 4 12 6 16 12 12 6 2 4 4

Steering hitch ( Page 30 ) Frame, rear Fork Fork Shim T=1 mm Shim T=3 mm Screw Screw M16x090 Holder Washer Steel plain washer Screw Rubber cloth Spacer block Screw Threaded plate

Code C C D D C B C C C D D C D

33

Dynapac Compaction Equipment AB Scrapers, STD

34

SCC1200-1EN3

Dynapac Compaction Equipment AB Scrapers, STD Item Part No 1 2 3 5 6 10 11 18 39 40 41 42 43 44 45 46 47 48 A) B) D)

Rem Qty Description

4700376624 4700358588 A 4700358589 B 4700385675 4700500046 4700586019 4700791963 4700500056 4700904231 4700385672 4700385674 4700904703 4700384493 4700904342 4700904424 4700389148 4700377795 4812110229 D

4 2 2 4 4 10 18 10 42 2 2 4 4 10 8 2 2 4

Scraper bracket Scraper bracket Scraper bracket Scraper Screw M12x025H Lock nut Lock nut M12 Screw Washer 13x24x2 300 HV Scraper bracket Scraper bracket Washer Spacer sleeve Screw M12x45 Screw M12x55 Sprinkler pipe/bracket Scraper bracket Screw M12x50

Code D D D A C C C C B B B B

C D C

Front lower Rear lower Used together with alternative "B" in drawing

SCC1200-1EN3

35

Dynapac Compaction Equipment AB Scrapers, spring loaded (option)

36

SCC1200-1EN3

Dynapac Compaction Equipment AB Scrapers, spring loaded (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 A) C) D)

Rem Qty Description

4700389999 D D 4700385613 D 4700358876 4700904231 4700500133 4700586019 4700904229 4700500047 4700791182 D 4700902287 4700389998 D D,C D 4700358876 4700904230 4700380255 4700586018 4700904228 4700500015 4700586002 4700791082 4700570006 4700384050 4700385675 4700385674 4700389148 4700904231 4700904703 4700500046 4700500056 4700500049 A 4700904342 4700901330 4700904424 4700586019 4700791963 4700385628 4700384493 4700377795

4 1 1 1 1 4 1 1 2 1 1 1 1 4 1 1 1 1 2 1 1 3 1 1 1 1 2 4 2 2 36 10 4 12 2 10 4 4 10 18 2 2 2

Scraper bracket . Bracket . Bracket . Hook . Spring . Washer 13x24x2 300 HV . Screw . Lock nut . Steel plain washer 8,4x16x1,5 . Hexagon head screw . Lock nut M8 . Stud . Nut Scraper bracket . Bracket . Bracket . Stop . Spring . Steel plain washer . Screw . Hexagon lock nut . Washer 6,4x12x1,5 . Screw M6X30 8.8 . Lock nut M6 -8 . Screw . Nut Scraper bracket Scraper Scraper bracket Sprinkler pipe/bracket Washer 13x24x2 300 HV Washer Screw M12x025H Screw Screw Screw M12x45 Screw M12x50 Screw M12x55 Lock nut Lock nut M12 Spacer Spacer sleeve Scraper bracket

Code B

D D C C C C C

C B

D C D C C C C C B B A B C C B C C D C C C B D

For CC1100/1200 only.

Mounting hole to be used for item 37 depending on model Not sold separately

SCC1200-1EN3

37

Dynapac Compaction Equipment AB Sprinkler system

38

SCC1200-1EN3

Dynapac Compaction Equipment AB Sprinkler system Item Part No 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 18 20 21 22 24 26 28 29 30 31 33 34 35 36 37 38 41 42 43 44 51 52 54 56 57 58 59 60 61 62 70 71 72 73 74 A) B) C) D) E) H)

4812113822 4812111325 4700791959 4700791949 4700791568 4700379009 4700357395 4700926911 4812113066 4812113067 4700500053 4700904229 4700901431 4700923734 4812111330 4700901432 4700923735 4700313002 4700903478 4700500028 4812112074 4700500190 4700358846 4812112074 4700287713 4812112074 4812111968 4700359003 4700937053 4811000168 4700392229 4700392230 4700160219 4700392232 4700392227 4700904640 4700792779 4812112074 4700924544 4700925599 4812112831 4700160313 4812111331 4700379753 4812112451 4700904557 4812113575 4700791974 4700233215 4700392011

Rem Qty Description

A

B D E C

H

1 1 1 1 1 1 1 1XL 1 1 8 6 1 2 1 1 2 16 1XL 4 1XL 2 1 1XL 1 1XL 1 1 1 1 1 2 2 2 1 6 1 1XL 2 1 1 1 1 4 1 4 1 2 2 4

Water pump Water strainer, cpl . O-ring . Filter element . Gasket . Valve Holder plate Rubber strip Bracket Bracket Screw M8x20H 8.8 Steel plain washer 8,4x16x1,5 Hose connection Hose connection Hose connection swivel Hose connection Hose connection Hose clamp 13-20 mm Absorbent Screw Plastic hose Screw Strainer Plastic hose Solenoid valve Plastic hose Sprinkler tank . Cap . Plug, cpl . . Cap . . Plane gasket . . Grommet . . O-ring . . Nut . . Swivel nut Washer 8,4x22x3 Swivel nut Plastic hose Hose connection Valve Ball valve O-ring 70 Reducer nipple Gasket Hose connection Steel plain washer Heat protection Plug threaded Ball valve Spraying nozzle, cpl

Code C B C A

D D D D C C C B C C D C

A B D C D C D C

C

C C D

C C D C A

L = 0,43 m L = 1,00 m L = 1,80 m L = 0,22 m L = 0,21 m L = 0,15 m

SCC1200-1EN3

39

Dynapac Compaction Equipment AB Sprinkler system

40

SCC1200-1EN3

Dynapac Compaction Equipment AB Sprinkler system Item Part No 75 76 77 83 84 86 87 88 90 91 92 93 94 95 96 97 98 J) K) L) M)

4700392509 4700392510 4700392508 4700791977 4700901191 4812112074 4812112074 4700500020 4812112994 4812113781 4700313041 4700791182 4700480852 4700500022 4700904640 4700393542 4700792600

Rem Qty Description

J K L

M

4 4 4 2 1 1 1 2 1 1 2 2 1 2 8 1 1

. Retainer, nozzle, strainer, yellow 0.8 . Gasket . Housing Hose connection Protective hose Plastic hose Plastic hose Screw M8-1,25x22 8,8 Bracket Rubber strip Cable ties Lock nut M8 O-ring 70 Screw M8x30H 8.8 A2K Washer 8,4x22x3 Hose connection swivel O-ring 70

Code D B D B C

D D D B

C C C

L = 0,34 m L = 2,10 m L = 1,40 m Not shown in illustration

SCC1200-1EN3

41

Dynapac Compaction Equipment AB Towing device (option)

42

SCC1200-1EN3

Dynapac Compaction Equipment AB Towing device (option) Item Part No 1 2 3 4 5 6

4812115567 4812115419 4700904703 4700500195 4700586019 4700904367

SCC1200-1EN3

Rem Qty Description 1 1 16 8 8 1

Towing device Plate Washer Screw Lock nut Decal "SAFETY"

Code B C C

43

Dynapac Compaction Equipment AB Drum

44

SCC1200-1EN3

Dynapac Compaction Equipment AB Drum Item Part No 1 2 3 4 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 22 23 24 25 26 27 28 29 33 34 A) B)

Rem Qty Description

4700357058 4700343744 4700162017 4700500029 4700379179 B 4700346505 4700345215 4700343490 4700904230 4700111018 4700349202 A 4700391929 4700903154 4700160132 4700358666 4700923951 4700163049 4700904258 4700350029 4700357060 4700358587 4700357020 4700357055 4700358689 4700500044 4700904228 4812110639 4700903287 4812110620 4812110673

1 1 1 18 16 1 8 1 70 1 1 1 1 1 1 2 1 2 1 1 1 1 1 1 2 2 20 7 32 20

Drum Magnetic plug Seal ring Hexagon head screw Holder Mounting plate Shock absorber Air breather Steel plain washer Ball bearing Coupling . Rubber cross Retaining ring O-ring 124, 50x3, 00 Adapter O-ring Sealing Spherical roller bearing Key Eccentric shaft Bearing housing Bearing housing Drive disc Spacer ring Screw M6x8 Washer 6,4x12x1,5 Hexagon socket head cap screw M10x030H 8.8 Plug Hexagon head screw M10x30H 8.8 A3K Spacer

Code D C B C B D A D C D D D B C C B D D D D D D C C C C C C

CPL Replaces earlier used Lock nut 4700586018; each holder has two nuts

SCC1200-1EN3

45

Dynapac Compaction Equipment AB Engine room

46

SCC1200-1EN3

Dynapac Compaction Equipment AB Engine room Item Part No 1 2 3 4 5 6 9 4812115506 4812115506 10

11 12 13 14

SCC1200-1EN3

Rem Qty Description Engine module ( Page 48 ) Exhaust system ( Page 52 ) Fan ( Page 54 ) Air filter ( Page 56 ) Expansion tank ( Page 58 ) Water cooler ( Page 60 ) Engine hood Up to 00A008121 ( Page 62 ) Engine hood, cpl From 00A008122 Up to 00A008239 ( Page 64 ) Engine hood From 00A008240 ( Page 62 ) Engine hood, cpl From 00A008241 ( Page 64 ) Casing Up to 00A008121 ( Page 66 ) Casing From 00A008122 Up to 00A008239 ( Page 68 ) Casing From 00A008240 ( Page 66 ) Casing From 00A008241 ( Page 68 ) Fuel system ( Page 70 ) Cooler hoses ( Page 72 ) Air hoses ( Page 74 ) Fuel hoses ( Page 76 )

Code C

D

D

47

Dynapac Compaction Equipment AB Engine module

48

SCC1200-1EN3

Dynapac Compaction Equipment AB Engine module Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 39 40 41 42 43 44 45 48

4812110881 4812112390 4812112391 4812113780 4812111868 4812111865 4812111866 4812111863 4812111867 4812111899 4812111883 4812111880 4812113235 4812113233 4812113566 4812113468 4700202028 A 4700500021 4812111900 4812113980 4700904231 4700500019 4700904229 4812113022 4700904703 4812113044 4700904557 4811000285 4700500046 4812156263 4700904230 4700330333 4812111905 4700330081 4700230515 4700330383 4700500053 4700900568 4700904044 4812114177 4700921116 4700792119 4700902287 4700904233

A)

L = 0.575 m

SCC1200-1EN3

1 1 1 1 1 1 1 1 1 1 1 1 2 1 1 1 1 2 1 2 2 4 9 14 14 1 1 8 6 1 8 2 1 1 1 1 2 2 6 1 1 2 4 2

Diesel engine, Kubota D1703 ( Page 50 ) Clutch Bracket Shim Shim Bracket Shim Bracket Shim Bracket Bracket Bracket Spacer sleeve Bracket Bracket Belt guard Edge trim Screw M8-1,25x25 8.8 Bracket Screw Washer 13x24x2 300 HV Hexagon head screw M8x16H 8,8 Steel plain washer 8,4x16x1,5 Screw Washer Screw Steel plain washer Screw Screw M12x025H Fuel filter element Steel plain washer Copper washer Engine oil drain hose Screw Connector Cap hydraulic Screw M8x20H 8.8 Screw Lock washer Bracket Clamp Screw Nut Washer 21x36x3

Code D C C D C D C D D D D D D D C D C C C C C B C C C C A C D D C C C C C D C C C

49

Dynapac Compaction Equipment AB 4812110881 Diesel engine, Kubota D1703

50

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812110881 Diesel engine, Kubota D1703 Item Part No 2 4 5 6 7 8 9 10 11 12 13 14 15 16

4812156355 4812156357 4812156358 4812156359 4812156360 4812156362 4812156363 4812156259 4812156264 4812156263 4812156260 4812156364 4812156261 4812156356 4812156389

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Starter Oil dip stick Oil cap . O-ring Pulley, V-belt Alternator, Fan Pulley, alternator Engine oil filter element Pre Fuel filter element Fuel filter element V-belt Alternator Valve cover gasket Piston ring set Fuel pump

Code

A A A A A

51

Dynapac Compaction Equipment AB Exhaust system

52

SCC1200-1EN3

Dynapac Compaction Equipment AB Exhaust system Item Part No 1 2 3 4 5 6 7 8

4812112019 4700904229 4811000389 4700904557 4700508096 4812113228 4812112021 4700904475

SCC1200-1EN3

Rem Qty Description 1 6 2 2 2 1 1 2

Muffler Steel plain washer 8,4x16x1,5 Screw Steel plain washer Screw End pipe Flexible pipe Clamp

Code D C C C C D D

53

Dynapac Compaction Equipment AB Fan

54

SCC1200-1EN3

Dynapac Compaction Equipment AB Fan Item Part No 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20 21 22 A) C)

Rem Qty Description

4812113691 4812110543 4812113472 4812112029 4700904229 4700500100 4812113473 4700904734 4700500020 4700288129 A 4700202028 C 4700904231 4700350009 4700500021 4700508079 4700904044 4700921119 4700904230 4700900486 4700904556 4700923862

1 1 1 1 5 2 1 4 4 1 1 1 1 3 1 2 1 1 1 4 4

Fan hub Fan Fan shroud Fan protection Steel plain washer 8,4x16x1,5 Screw Fan ring Steel plain washer Screw M8-1,25x22 8,8 Edge trim Edge trim Washer 13x24x2 300 HV Flat key Screw M8-1,25x25 8.8 Screw M12-1,75x35H 8,8 Lock washer Pipe clamp Steel plain washer Screw Washer 8,4x16x3,0 Screw

Code C C C C C C C D D D C C C C C C C C C

L = 1,80 m L = 0,49 m

SCC1200-1EN3

55

Dynapac Compaction Equipment AB Air filter

56

SCC1200-1EN3

Dynapac Compaction Equipment AB Air filter Item Part No 1 2 3 4 5 6 7 8 9 10

4700904556 4700508048 4700499497 4700386951 4700939802 4700939803 4700939804 4700939805 4700939806 4700939807

SCC1200-1EN3

Rem Qty Description 2 2 1 1 1 1 1 1 1 1

Washer 8,4x16x3,0 Hexagon socket head cap screw Indicator Air filter . Air filter element Main . Air filter element Safety . Dust cap . Vacuator cap . Plastic mounting band . O-ring

Code C C B C A A D B D C

57

Dynapac Compaction Equipment AB Expansion tank

58

SCC1200-1EN3

Dynapac Compaction Equipment AB Expansion tank Item Part No 1 2 3 4 5 6 7 8 9 10

4812111870 4700386893 4700903714 4700387428 4700904228 4700500040 4700904228 4700500015 4812114733 4700603001

SCC1200-1EN3

Rem Qty Description 1 1 1 2 2 2 4 4 1 4

Bracket Expansion reservoir Cap Plate Washer 6,4x12x1,5 Screw M6-1x20 8,8 Washer 6,4x12x1,5 Screw M6X30 8.8 Plate Washer

Code D C D C C C C C

59

Dynapac Compaction Equipment AB Water cooler

60

SCC1200-1EN3

Dynapac Compaction Equipment AB Water cooler Item Part No 1 2 3 4 5

4812113471 4700904640 4700500100

SCC1200-1EN3

Rem Qty Description 1 3 3 1 1

Water cooler Washer 8,4x22x3 Screw Hose connection Drain valve

Code D C C

61

Dynapac Compaction Equipment AB Engine hood

62

SCC1200-1EN3

Dynapac Compaction Equipment AB Engine hood Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 A)

Rem Qty Description

4812112484 4812113598 4812113626 4812113627 4700387948 4700902166 A 4700388846 4700500115 4700500013 4700500053 4811000425 4700586003 4700923976 4700904228 4700904698 4700904229 4700377061 4700791666 4700904556 4812114152 4812114153 4700902286 4700923270

1 2 1 1 1 1 2 2 8 2 4 6 4 11 4 6 1 3 4 1 1 2 2

Engine hood Hinge Hinge Hinge Handle Edge trim Latch Screw M8-1,25x90 8.8 Screw M6-1x16 8,8 Screw M8x20H 8.8 Screw M4x16 10,9 A2'K Lock nut M8 Nut Washer 6,4x12x1,5 Washer 4,3x8x0,8 Steel plain washer 8,4x16x1,5 Lock plate Blind rivet Washer 8,4x16x3,0 Gas spring Right Gas spring Left Hexagon lock nut with flange Protective plug

Code D D D D D D D C C C C C C C C C D C C C C C

L = 0,50 m

SCC1200-1EN3

63

Dynapac Compaction Equipment AB 4812115506 Engine hood, cpl

64

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812115506 Engine hood, cpl Item Part No 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 A)

Rem Qty Description

4812115506 4812113598 4812113626 4812113627 4700387948 4700902166 A 4700388846 4700500115 4700500013 4700500053 4811000425 4700586003 4700923976 4700904228 4811000488 4700904229 4700377061 4700791666 4700904556 4812114152 4812114153 4700902286 4700923270 4811000489 4812114961

1 2 1 1 1 1 2 2 12 2 4 2 4 15 4 6 1 3 4 1 1 2 2 4 1

Engine hood, cpl ( Page 64 ) . Hinge . Hinge . Hinge . Handle . Edge trim . Latch . Screw M8-1,25x90 8.8 . Screw M6-1x16 8,8 . Screw M8x20H 8.8 . Screw M4x16 10,9 A2'K . Lock nut M8 . Nut . Washer 6,4x12x1,5 . Ball stud . Steel plain washer 8,4x16x1,5 . Lock plate . Blind rivet . Washer 8,4x16x3,0 . Gas spring Right . Gas spring Left . Hexagon lock nut with flange . Protective plug . Coupling . Cover

Code D D D D D D C C C C C C C C D C C C C C

L = 0,50 m

SCC1200-1EN3

65

Dynapac Compaction Equipment AB Casing

66

SCC1200-1EN3

Dynapac Compaction Equipment AB Casing Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10

A

A)

4812113226 4700928441 4700500030 4700388852 4700923976 4811000426 4700791666 4700904228 4700904698

1 6 6 6 1 4 4 2 2 4

Casing, cpl . Shock absorber . Washer . Screw M10x035H 8.8 A3K . Lock plate . Nut . Screw M4x20 10.9 A2K . Blind rivet . Washer 6,4x12x1,5 . Washer 4,3x8x0,8

Code A C C D C C C C

Replaced as spare part by new version (p/n 4812115560)

SCC1200-1EN3

67

Dynapac Compaction Equipment AB Casing

68

SCC1200-1EN3

Dynapac Compaction Equipment AB Casing Item Part No 1 2 3 4 5 6 7 8 9 10 11

4700388852 4700923976 4811000426 4700791666 4700904228 4700904698 4811000488 4700500013 4811000489 4812114962

SCC1200-1EN3

Rem Qty Description 1 1 4 4 2 6 4 4 4 4 1

Casing ( Page 68 ) . Lock plate . Nut . Screw M4x20 10.9 A2K . Blind rivet . Washer 6,4x12x1,5 . Washer 4,3x8x0,8 . Ball stud . Screw M6-1x16 8,8 . Coupling . Cover

Code D C C C C C

69

Dynapac Compaction Equipment AB Fuel system

70

SCC1200-1EN3

Dynapac Compaction Equipment AB Fuel system Item Part No 1 2 3 4 5 6

4812113207 4700394253 4700945753 4700387552 4700357466 4700904640 4700500053

SCC1200-1EN3

Rem Qty Description 1 1 1 1 2 2 2

Fuel tank Fuel cap . Key 2PCS "921" Level gauge Holder plate Washer 8,4x22x3 Screw M8x20H 8.8

Code D D D D C C

71

Dynapac Compaction Equipment AB Cooler hoses

72

SCC1200-1EN3

Dynapac Compaction Equipment AB Cooler hoses Item Part No 1 3 5 6 7 8

4812113697 4812113694 4700313008 4700313004 4700313108 4812111882

SCC1200-1EN3

Rem Qty Description 1 1 4 1 3 1

Cooler hose Cooler hose Hose clamp Hose clamp Hose clamp Cooler hose

Code D D D D D

73

Dynapac Compaction Equipment AB Air hoses

74

SCC1200-1EN3

Dynapac Compaction Equipment AB Air hoses Item Part No 1 2 3 4 5

4812111877 4812113136 4812111876 4700313023 4700313010

SCC1200-1EN3

Rem Qty Description 1 1 1 3 2

Air inlet hose Air hose Gasket Hose clamp Hose clamp

Code D D C C

75

Dynapac Compaction Equipment AB Fuel hoses

76

SCC1200-1EN3

Dynapac Compaction Equipment AB Fuel hoses Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10 11 12 13

A B C D E F

A) B) C) D) E) F)

4700904984 4700904984 4700791422 4700904984 4700904984 4700904984 4700791774 4700313075 4700313108 4700921104 4700355869 4700904229 4700500022

1 1 1 1 1 1 1 2 10 1 1 1 1

Fuel hose Fuel hose Hose Fuel hose Fuel hose Fuel hose Hose connection Hose clamp Hose clamp Clamp Spacer sleeve Steel plain washer 8,4x16x1,5 Screw M8x30H 8.8 A2K

Code C C D C C C C D D C D C C

L = 0,20 m L = 0.97 m L = 0.62 m L = 0.80 m L = 0.30 m L = 0.60 m

SCC1200-1EN3

77

Dynapac Compaction Equipment AB Hydraulic system

78

SCC1200-1EN3

Dynapac Compaction Equipment AB Hydraulic system Item Part No 10 20 40 80 91 92

SCC1200-1EN3

Rem Qty Description

Code

Propulsion system ( Page 80 ) Vibration system ( Page 86 ) Steering system ( Page 90 ) Brake system ( Page 94 ) Flow divider (option) ( Page 96 ) Vibration shut-off Front drum (option) ( Page 98 )

79

Dynapac Compaction Equipment AB Propulsion system

80

SCC1200-1EN3

Dynapac Compaction Equipment AB Propulsion system Item Part No 1 2 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 A) B) C) D) F)

4700372352 4700390742 4700482998 4700334134 4700482830 4700500037 4700904703 4811000084 4700482452 4700373402 4700234218 4700813444 4700334135 4700483118 4700334156 4700901156 4700903925 4700334238 4700334235 4812113327

Rem Qty Description

B F

C D

4700904637 4700500269 4700904231 4700482553 4700371313 4700371314 4700904229 4700500020 4812110281 4700357113 4700313102 4700508096 4700586003 4700904230 4700500068 4700902379 A 4700357111 4700357112 4700355869 4700586018 4700902233 4700927637 4700921022 4700334155 4700924731 4812110490 4700232070

1 1 3 4 1 2 2 2 1 2 1 1 1 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 2 20 20 1 2 2 11 4 1 2 N 10 1 4 2 1XL 2 2 2 4 2 1 1 1 2 2 3

Hydraulic pump, propulsion Hydraulic motor, propulsion, drum ( Page 84 ) Hydraulic hose Connector Hydraulic hose Screw Washer Hydraulic hose Hydraulic hose Flange Tee-connector Elbow 90, O-ring Tee-connector Hydraulic hose Adapter Connector Connector Elbow 90 o-ring Elbow 90 Hydraulic oil filter . Cover . Insert . Sealing . O-ring . O-ring . O-ring . Filter element . Plug Washer Screw Washer 13x24x2 300 HV Hydraulic hose Hose clamp Hose clamp Steel plain washer 8,4x16x1,5 Screw M8-1,25x22 8,8 Junction block Spacer sleeve Cable ties Screw Lock nut M8 Steel plain washer Screw M08x65 Edge trim Rubber cloth Cover plate Spacer sleeve Hexagon lock nut Threaded stud Hexagon socket countersunk screw Hose clamp Elbow 90 Connector Holder Plug

Code C C D C C B C C D C C C C C C C D A

C C C C D D C D C D C C C C D D D C C D C C C C D

L=0,185 m L = 1,18 m L = 1,80 m L = 1,25 m L = 1,70 m

SCC1200-1EN3

81

Dynapac Compaction Equipment AB Propulsion system

82

SCC1200-1EN3

Dynapac Compaction Equipment AB Propulsion system Item Part No 59 60 61 62 63 64 66 67 68 71 79 80 81

4700892446 4700921099 4700813443 4700901157 4700330383 4700230400 4700483164 4700483069 4700390742 4700500053 4700334197 4700904640 4812113889

SCC1200-1EN3

Rem Qty Description 1 1 2 2 2 1 1 1 1 1 2 2 1

Plug Clamp O-ring Measuring nipple Cap hydraulic Cap Hydraulic hose Hydraulic hose Hydraulic motor, propulsion, drum ( Page 84 ) Screw M8x20H 8.8 Elbow 90 Washer 8,4x22x3 Control arm

Code C C C D C C C C C C

83

Dynapac Compaction Equipment AB 4700390742 Hydraulic motor, propulsion, drum

84

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700390742 Hydraulic motor, propulsion, drum Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

4700390742 4700950414

4700950293

4812156165 4812156164

4700950416 4700950415

4812156755 4700950226

4812155168

SCC1200-1EN3

Rem Qty Description 1 1 2 1 1 1 1 1 1 12 1 1 1 1 1 1 1 1 1 1 1 1 1 8 1 1 1 1 1 1 1 1

Hydraulic motor, propulsion, drum ( Page 84 ) . Seal kit . . O-ring . . O-ring . . Seal kit . . Seal . . O-ring . . Seal . . O-ring . Screw . Distributor . Bearing support . Bearing . Bearing . Shim kit . Supporting plate . Snap ring . Seal kit . Brake disc kit . Seal kit . Shaft . Screw . Bonded seal . Screw . Brake piston . Spring washer . Snap ring . End cap kit . Set of studs . Shaft . Plug . Brake housing

Code C D

C

B B

D D

C

D

85

Dynapac Compaction Equipment AB Vibration system

86

SCC1200-1EN3

Dynapac Compaction Equipment AB Vibration system Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 43 44 46 48 49 90 91 92 93 94 96 97 99 A) B) C) H) K)

4812112054 4700927459 4700334135 4700334238 4700234390 4700334524 D433830401 4700910161 4700386134 4700901692 4700480124 4700482306 4700334121 4700923371 4811000383 4700500078 4700500019 4700904556 4700232122 4700989151 4700334235 4700373478 4700357139 4700357138 4700313008 4700904230 4700902287 4700358486 4700500067 4812113333 4700160016 4700234341 4811000372 4700902295 4700234481 4700160031 4700508029 4700904557 4700371313 4700371314 4700904229 4700902379 4700902379 4700313102 4700379458 4700904901 4700391270 4700903431 4700482242 4811000382 4700483155 4700483157 4700483162 4700482525 4700334238

Rem Qty Description

H

A B C K

1 1 2 5 1 1 1 1 1 1 2 1 1 1 1 2 2 8 1 1 1 1 1 1 2 2 2 1 4 1 1 1 1XL 2 1 2 2 2 1 1 9 1XL 1XL N 1 2XL 2 1 1 1 1 1 1 1 2

Hydraulic pump, vibration Adapter Tee-connector Elbow 90 o-ring Connector Connector Connector Measuring nipple Hydraulic hose Screw Washer Hydraulic hose Straight connector Adapter Hydraulic hose Screw Hexagon head screw M8x16H 8,8 Washer 8,4x16x3,0 Plug 3/4NPTF Oil level glass Elbow 90 Rubber hose Connector Ventilating filter Hose clamp Steel plain washer Nut Rubber strip Screw M8-1,25x55 8,8 Flange O-ring Elbow 45 Hydraulic hose Clamp Connector O-ring Screw M10-1,5x30H 8,8 Steel plain washer Hose clamp Hose clamp Steel plain washer 8,4x16x1,5 Edge trim Edge trim Cable ties Gasket Tape Hydraulic motor . Seal kit Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Hydraulic hose Elbow 90 o-ring

Code C C C C C C C C C C D C C C C D C C D C D D C A D C C D C D C C C D C C C C D D C

D D C D C C C C C D C

L = 1,80 m L = 1,05 m L = 1,20 m L = 0,26 m L = 1,80 m

SCC1200-1EN3

87

Dynapac Compaction Equipment AB Vibration system

88

SCC1200-1EN3

Dynapac Compaction Equipment AB Vibration system Item Part No 100 101 102 104 106 107 110 111 112

4700234481 4700371313 4700371314 4700500053 4700508029 4700603018 4700357543 4700921119 4700500053

SCC1200-1EN3

Rem Qty Description 1 1 1 5 2 2 1 1 1

Connector Hose clamp Hose clamp Screw M8x20H 8.8 Screw M10-1,5x30H 8,8 Washer 10x18x4 Valve Pipe clamp Screw M8x20H 8.8

Code C D D C C C D C C

89

Dynapac Compaction Equipment AB Steering system

90

SCC1200-1EN3

Dynapac Compaction Equipment AB Steering system Item Part No 1 2 3 4 5 6 13 17 19 20 21 22 23 A) B)

Rem Qty Description

4700374603 4700791398 4700483765 A 4811000428 B 4700630019 4700313102 4812112109 4700791405 4700600016 4700791401 4700791414 4700791847 4700923405

1 3 2 2 4 2 1 1 4 2 1 1 1

Steering cylinder ( Page 92 ) Elbow 90, O-ring Hydraulic hose Hydraulic hose Cotter pin Cable ties Steering valve Straight o-ring connector Washer 26x45x4 Elbow 90, O-ring with swivel T-connection, O-ring with swivel Straight connector Measuring nipple

Code D D C C C C C B C C C C

L = 1,99 m L = 1,96 m

SCC1200-1EN3

91

Dynapac Compaction Equipment AB 4700374603 Steering cylinder

92

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700374603 Steering cylinder Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

A

A)

4700909760

4700160025

4700909766 4700909765 4700909764 4700926214 4700238272 4700151012 4700635061 4700909761 4700909759 4700902576

1 1 1 1 1 2 1 1 1 1 2 1 1 1 1 1 1 1 2 2 2 4 2 1 2

Steering cylinder . Seal kit . . Scraper ring . . Retaining ring . . O-ring . . Guide ring . . Lock ring . . Sealing . . O-ring . . Sealing . . Back-up ring . . O-ring . . Sealing . . Guide ring . . Nut . Guide . Cylinder tube . Piston block . Grease fitting . Slide bearing . Retaining ring . Hair clip . Shaft . Piston rod . Cover

Code D

C

C B C B

CPL

SCC1200-1EN3

93

Dynapac Compaction Equipment AB Brake system

94

SCC1200-1EN3

Dynapac Compaction Equipment AB Brake system Item Part No 1 2 4 5 6 7 8 10 11 15 16 A) B) C)

Rem Qty Description

4700334463 4700234888 4700234233 4700483420 A 4700483404 B 4700313102 4700230400 4700234233 4700482483 C

1 1 1 1 1 N 1 1 1 1 2

Connector Tee-connector Adapter Hydraulic hose Hydraulic hose Cable ties Cap Adapter Hydraulic hose Hydraulic pump, propulsion Hydraulic motor, propulsion

Code B D C C C D C C

L = 1,18 m L = 1,60 m L = 1,25 m

SCC1200-1EN3

95

Dynapac Compaction Equipment AB Flow divider (option)

96

SCC1200-1EN3

Dynapac Compaction Equipment AB Flow divider (option) Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 24 25

4812113326 4700533016 4700600002 4700923976 4700355981 4812112470 4812112566 4700358003 4700903141 4700903142 4700903144 4700903143 4700500034 4700904230 4700482773 4700334235 4700332038 4700162004 4700923407 4700482208 4700482214 A 4700904175 4700355869

A)

L = 2,8 m

SCC1200-1EN3

1 2 2 2 1 1 1 1 2 2 2 1 2 2 1 1 2 2 2 1 1 1 2 N

Contact Screw Washer Nut Decal Cable harness Cable harness Flow divider . Valve . Coil . Check valve . Valve Screw M10-1,5x100 8,8 Steel plain washer Hydraulic hose Elbow 90 Plug Sealing Adapter Hydraulic hose Hydraulic hose Connector Spacer sleeve Hydraulic details

Code D D D C D D D C D D D D D C D D D B D D D D

97

Dynapac Compaction Equipment AB Vibration shut-off Front drum (option)

98

SCC1200-1EN3

Dynapac Compaction Equipment AB Vibration shut-off Front drum (option) Item Part No 1 2 3 4 6 7 8 9 10 13 17 A)

Rem Qty Description

4700357934 4700813500 4700334165 4700923406 4700334116 4700334135 4700334197 4700482898 A 4700357543 4811000347 4700483585

1 1 1 1 1 3 2 1 2 1 1

Solenoid valve Elbow 45, O-ring Adapter Connector Straight o-ring connector Tee-connector Elbow 90 Hydraulic hose Valve Switch Vibration shut-off Hydraulic hose

Code C C C C C C C C D B C

L = 1,70 m

SCC1200-1EN3

99

Dynapac Compaction Equipment AB Electrical equipment

100

SCC1200-1EN3

Dynapac Compaction Equipment AB Electrical equipment Item Part No 1 2 3 4 5 6 4812115525 9 10 11 12 13

SCC1200-1EN3

Rem Qty Description Horn module ( Page 102 ) Battery module ( Page 104 ) Battery disconnector ( Page 106 ) Cable harness ( Page 108 ) Working lights ( Page 110 ) Rotating beacon for ROPS (option) ( Page 122 ) Rotating beacon for ROPS ignition controlled (option) ( Page 124 ) Rotating beacon, w/o ROPS (option) ( Page 126 ) Driving lights Front RH (option) ( Page 128 ) Driving lights Front LH (option) ( Page 136 ) Driving lights Rear (option) ( Page 132 ) Direction indicator (option) ( Page 140 ) Backup alarm (option) ( Page 142 ) Sprinkler Wheels (option) ( Page 144 )

Code D B C

D

101

Dynapac Compaction Equipment AB Horn module

102

SCC1200-1EN3

Dynapac Compaction Equipment AB Horn module Item Part No 1 2 3 4

4700999027 4700586003 4700904229 4700500020

SCC1200-1EN3

Rem Qty Description 1 1 1 1

Horn Lock nut M8 Steel plain washer 8,4x16x1,5 Screw M8-1,25x22 8,8

Code C C C D

103

Dynapac Compaction Equipment AB Battery module

104

SCC1200-1EN3

Dynapac Compaction Equipment AB Battery module Item Part No 1 2 3 4 5

4700792311 4812114557 4812113557 4700904230 4811000440

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1

Battery Rubber cloth Holder Steel plain washer Screw

Code D C C

105

Dynapac Compaction Equipment AB Battery disconnector

106

SCC1200-1EN3

Dynapac Compaction Equipment AB Battery disconnector Item Part No 1 2 3 4 5 6 7 8

4812112016 4700391115 4700357567 4812110560 4700903732 4700586003 4700902520 4700902560

SCC1200-1EN3

Rem Qty Description 1 2 1 1 2 2 2 1

Bracket Spacer sleeve Battery switch, cpl Power socket 12V Screw Lock nut M8 Screw Handle

Code D D D C C D

107

Dynapac Compaction Equipment AB Cable harness

108

SCC1200-1EN3

Dynapac Compaction Equipment AB Cable harness Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

4812112467 4812112466 4700960796 4700357562 4811000320 4811000321 4811000323 4811000322 4700791739 4811000128 4700389840 4700791723 4700903956 4700904281 4700500006 4700586001 4700903741 4700901227 4700901225 4700901228 4700792441

SCC1200-1EN3

Rem Qty Description 1 1 4 3 1 1 1 1 1 1 1 1 3 6 3 3 1 2 1 2 3

Cable harness Cable harness Connector black, MPM 182 09 ND Relay holder Battery cable (+) Battery cable (-) Connection cable Connection cable Emergency stop Decal Connector w. Fixing collar N/C Connector N/C Relay Washer 5,3x10x1 300HV Screw M5x16 Lock nut Fuse 20A Yellow Medium Fuse 10A Fuse 5A Fuse 15A Cable tie with holder

Code C C C D C C C C B D C B A C C C A A A A C

109

Dynapac Compaction Equipment AB Working lights

110

SCC1200-1EN3

Dynapac Compaction Equipment AB Working lights Item Part No 1 2 3 4 5

4700791587

SCC1200-1EN3

Rem Qty Description 2 1 1 2 1 1

Working lights front ( Page 112 ) Working light rear ( Page 114 ) Working light (option) rear ( Page 116 ) Casing rear ( Page 118 ) Switch, working light Cover plate rear ( Page 120 )

Code B B

B

111

Dynapac Compaction Equipment AB Working lights front

112

SCC1200-1EN3

Dynapac Compaction Equipment AB Working lights front Item Part No 1 2 3 4 5 6 7

4812113531 4700902227 4700901369 4700904229 4700904956 4700791957 4700791754

SCC1200-1EN3

Rem Qty Description 1 1 1 4 4 1 1

Bracket Work light Bulb 55w H3 Steel plain washer 8,4x16x1,5 Screw Reflector, white Blind rivet

Code D B B C B

113

Dynapac Compaction Equipment AB Working light rear

114

SCC1200-1EN3

Dynapac Compaction Equipment AB Working light rear Item Part No 1 2 3

4812110216 4700904230 4700586018

SCC1200-1EN3

Rem Qty Description 1 1 1

Work lamp Steel plain washer Hexagon lock nut

Code C C C

115

Dynapac Compaction Equipment AB Working light (option) rear

116

SCC1200-1EN3

Dynapac Compaction Equipment AB Working light (option) rear Item Part No 1 2 3 4 5 6

4812110216 4700391115 4700500096 4700904229 4700928441 4700573005

SCC1200-1EN3

Rem Qty Description 1 1 1 2 1 1

Work lamp Spacer sleeve Screw Steel plain washer 8,4x16x1,5 Washer Nut M10X1,5

Code C

C C

117

Dynapac Compaction Equipment AB Casing rear

118

SCC1200-1EN3

Dynapac Compaction Equipment AB Casing rear Item Part No 1 2 3

4812111950 4700904956 4700904229

SCC1200-1EN3

Rem Qty Description 1 4 4

Cover plate Screw Steel plain washer 8,4x16x1,5

Code D C

119

Dynapac Compaction Equipment AB Cover plate rear

120

SCC1200-1EN3

Dynapac Compaction Equipment AB Cover plate rear Item Part No 1 2 3

4812114872 4700904956 4700904229

SCC1200-1EN3

Rem Qty Description 1 4 4

Cover plate Screw Steel plain washer 8,4x16x1,5

Code C

121

Dynapac Compaction Equipment AB Rotating beacon for ROPS (option)

122

SCC1200-1EN3

Dynapac Compaction Equipment AB Rotating beacon for ROPS (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11 12

4700389577 4700389561 4700791981 4700791980 4700985012 4700791585 4812113077 4700921072 4700500143 4700904229 4700586003 4700313041

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1 1 2 4 2 N

Rotating beacon 12V Bracket Connector plug Rubber protection Bulb Switch, rotating beacon Wiring harness Clamp Screw Steel plain washer 8,4x16x1,5 Lock nut M8 Cable ties

Code B D C D B B D

C C B

123

Dynapac Compaction Equipment AB Rotating beacon for ROPS ignition controlled (option)

124

SCC1200-1EN3

Dynapac Compaction Equipment AB Rotating beacon for ROPS ignition controlled (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11 12

4700389577 4700389561 4700791981 4700791980 4700985012 4811000077 4812113077 4700921072 4700500143 4700904229 4700586003 4700313041

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1 1 2 4 2 N

Rotating beacon 12V Bracket Connector plug Rubber protection Bulb Connection cable Wiring harness Clamp Screw Steel plain washer 8,4x16x1,5 Lock nut M8 Cable ties

Code B D C D B C D

C C B

125

Dynapac Compaction Equipment AB 4812115525 Rotating beacon, w/o ROPS (option)

126

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812115525 Rotating beacon, w/o ROPS (option) Item Part No 1 2 3 4 5 6 7 8 9 10

4700389577 4700357663 4700499162 4700357679 4700500028 4700586018 4700904230 4812113077 4700791585 4700313041

SCC1200-1EN3

Rem Qty Description 1 1 2 1 2 2 2 1 1 N

Rotating beacon Lamp holder Hand knob Lamp holder Screw Hexagon lock nut Steel plain washer Wiring harness Switch, rotating beacon Cable ties

Code 12V

B D D D C C C D B B

127

Dynapac Compaction Equipment AB Driving lights Front RH (option)

128

SCC1200-1EN3

Dynapac Compaction Equipment AB Driving lights Front RH (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13

4812112472 4812112468 4700791584 4700792413 4700791583 4700904989 4700903956 4700901225 4700901227 4700791916 4700313041

SCC1200-1EN3

Rem Qty Description 2 2 1 1 1 1 1 1 1 2 1 2 N

Driving lights Front ( Page 130 ) Driving lights Rear (option) ( Page 132 ) Cable harness ( Page 134 ) Cable harness Switch, hazard flashers Switch, drive direction Switch, driving light Flash relay Option Relay Fuse 5A Fuse 10A Screw Cable ties

Code D C C B B B A A A A C B

129

Dynapac Compaction Equipment AB Driving lights Front

130

SCC1200-1EN3

Dynapac Compaction Equipment AB Driving lights Front Item Part No 1 2 3 4 5 6 7

4812111951 4700791951 4700791953 4700904229 4700904956 4700900790 4700985012

SCC1200-1EN3

Rem Qty Description 1 1 1 4 4 1 1

Light bracket Headlight Direction indicator Steel plain washer 8,4x16x1,5 Screw Bulb 60/55w H4 Bulb

Code B B C B B

131

Dynapac Compaction Equipment AB Driving lights Rear (option)

132

SCC1200-1EN3

Dynapac Compaction Equipment AB Driving lights Rear (option) Item Part No 1 2 3 6 7

4812111952 4700791954 4700791955 4700904229 4700904956

SCC1200-1EN3

Rem Qty Description 1 1 1 4 4

Bracket Direction indicator Brake/position light Steel plain washer 8,4x16x1,5 Screw

Code D B D C

133

Dynapac Compaction Equipment AB 4812112472 Cable harness

134

SCC1200-1EN3

Item Part No

Rem Qty Description

Dynapac Compaction Equipment CodeAB

4812112472 Cable harness

SCC1200-1EN3

135

Dynapac Compaction Equipment AB Driving lights Front LH (option)

136

SCC1200-1EN3

Dynapac Compaction Equipment AB Driving lights Front LH (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13

4812112472 4812112468 4700791584 4700792413 4700791583 4700904989 4700903956 4700901225 4700901227 4700791916 4700313041

SCC1200-1EN3

Rem Qty Description 2 2 1 1 1 1 1 1 1 2 1 2 N

Driving lights Front ( Page 138 ) Driving lights Rear (option) ( Page 132 ) Cable harness ( Page 134 ) Cable harness Switch, hazard flashers Switch, drive direction Switch, driving light Flash relay Option Relay Fuse 5A Fuse 10A Screw Cable ties

Code D C C B B B A A A A C B

137

Dynapac Compaction Equipment AB Driving lights Front

138

SCC1200-1EN3

Dynapac Compaction Equipment AB Driving lights Front Item Part No 1 2 3 4 5 6 7

4812111951 4700792059 4700791953 4700904229 4700904956 4700900790 4700985012

SCC1200-1EN3

Rem Qty Description 1 1 1 4 4 1 1

Light bracket Headlight Direction indicator Steel plain washer 8,4x16x1,5 Screw Bulb 60/55w H4 Bulb

Code B B C B B

139

Dynapac Compaction Equipment AB Direction indicator (option)

140

SCC1200-1EN3

Dynapac Compaction Equipment AB Direction indicator (option) Item Part No 1 2 3 4 5 6 7

4700791704 4700388382 4700904889 4700791643 4700903810 4700960079 4700313041

SCC1200-1EN3

Rem Qty Description 2 2 2 4 4 4 N

Side direction light Holder side light Bulb Screw Cable tie holder Connector Cable ties

Code D D D C D B

141

Dynapac Compaction Equipment AB Backup alarm (option)

142

SCC1200-1EN3

Dynapac Compaction Equipment AB Backup alarm (option) Item Part No 1 2 3 4 5 6

4700396768 4700792098 4700904228 4700500012 4700904229 4700500019

SCC1200-1EN3

Rem Qty Description 1 1 2 2 2 2

Bracket Back-up alarm Washer 6,4x12x1,5 Screw M6x12 Steel plain washer 8,4x16x1,5 Hexagon head screw M8x16H 8,8

Code D C C C C

143

Dynapac Compaction Equipment AB Sprinkler Wheels (option)

144

SCC1200-1EN3

Dynapac Compaction Equipment AB Sprinkler Wheels (option) Item Part No 1 2 3

4811000346 4812112471 4700313041

SCC1200-1EN3

Rem Qty Description 1 1 N

Switch Sprinkler Cable harness Cable ties

Code C B

145

Dynapac Compaction Equipment AB Drivers platform

146

SCC1200-1EN3

Dynapac Compaction Equipment AB Drivers platform Item Part No 1 2 3 4 5 6 8 9 11 12 13 14 15 16 17 18 19

SCC1200-1EN3

Rem Qty Description Platform module ( Page 148 ) Instrument panel module ( Page 152 ) Steering wheel ( Page 154 ) Control module ( Page 156 ) Standard ECU-module ( Page 158 ) Forward-Reverse control module ( Page 160 ) Forward-reverse control left (option) ( Page 164 ) Cover plate, Dual F&R-control left side ( Page 166 ) Throttle control cpl ( Page 168 ) Throttle control cpl, Dual frequency (option) ( Page 170 ) Arm rests, seat belt, laterally adjusting ( Page 172 ) Step (option) ( Page 174 ) Driver seat without armrests (option) ( Page 176 ) Driver seat, Luxury without armrests (option) ( Page 178 ) Seat belt module 3" ( Page 180 ) Seat belt module 2" ( Page 182 ) Rear view mirror (option) ( Page 184 ) ROPS, foldable (option) ( Page 186 ) Rops (option) ( Page 188 ) Canopy (option) ( Page 190 )

Code D C C

B

147

Dynapac Compaction Equipment AB Platform module

148

SCC1200-1EN3

Dynapac Compaction Equipment AB Platform module Item Part No 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 17 18 19 20

4700904231 4700500117 4700902797 4700902892 4700358232 4700586019 4700904703 4700904229 4700500019 4700923844 4700903192 4700926215 4700902919 4700904225 4700387226 4700357604 4700357605 4700500505

SCC1200-1EN3

Rem Qty Description 1 4 4 4 4 4 2 2 16 16 1 2 4 2 1 1 1 2 2

Platform mount ( Page 150 ) Washer 13x24x2 300 HV Screw M12x80H 8,8 Shock absorber Washer Washer Lock nut Washer Steel plain washer 8,4x16x1,5 Hexagon head screw M8x16H 8,8 Plug Grommet Protective plug Plug Plug Column cover Protection Protection Screw M8x20 8.8

Code C C A C C B C C D C

C D D C

149

Dynapac Compaction Equipment AB Platform mount

150

SCC1200-1EN3

Dynapac Compaction Equipment AB Platform mount Item Part No 1 2 3 4 5 6 7 8 9 10 11 A) B)

Rem Qty Description

4812111164 4812113106 4812113107 4812112091 4812112532 4700904556 4700500505 4700791343 4700791333 4700902379 A 4700902166 B

1 1 1 1 1 4 4 4 4 1 1

Platform Hand rail Right Hand rail Left Steering column Hand rail Front Washer 8,4x16x3,0 Screw M8x20 8.8 Screw Screw Edge trim Edge trim

Code

C C C D

L = 0,15 m L = 0,18 m

SCC1200-1EN3

151

Dynapac Compaction Equipment AB Instrument panel module

152

SCC1200-1EN3

Dynapac Compaction Equipment AB Instrument panel module Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 A)

Rem Qty Description

4700387720 4700391784 4700387227 4700387545 4700904281 4700903658 4700357855 4700513017 4700500007 4700791476 4700395394 4700791579 4700791580 4700791578 4700791582 4700791588 4700792320 4700792083 4700903459 4700358881 4700904230 4700500030 4700388737 A 4700377139 A 4812115918

1 1 1 1 4 3 2 2 1 1 1 1 1 1 1 7 4 1 1 1 4 4 1 1 1

Control panel holder Control panel Control panel cover Latch Washer 5,3x10x1 300HV Screw M5x10 Bushing Screw M6x30H 10,9 Screw M5-0,8x22H 8,8 Nut M5 -8 Control panel Switch, sprinkler Switch, vibration Switch, horn Switch, parking brake Panel plug Plug Plug Decal "SAFETY" Pad lock Steel plain washer Screw M10x035H 8.8 A3K Potentiometer Decal Decal "Starting instruction"

Code D D C D C C C C C C D B B B B C D D D D C C B D

Option on CC1100 and CC1200

SCC1200-1EN3

153

Dynapac Compaction Equipment AB Steering wheel

154

SCC1200-1EN3

Dynapac Compaction Equipment AB Steering wheel Item Part No 1 2 3 4 5 6 7 A)

Rem Qty Description

4700372964 4700902123 A 4700928830 4700355869 4700904230 4700500048 4700500031

1 1 1 2 4 2 2

Steering wheel, cpl Steering column Rubber washer Spacer sleeve Steel plain washer Screw M10-1,5x20 8,8 Screw M10x040 8.8

Code D C D D C C C

Cap/Nut supplied with steering wheel/column only.

SCC1200-1EN3

155

Dynapac Compaction Equipment AB Control module

156

SCC1200-1EN3

Dynapac Compaction Equipment AB Control module Item Part No 1 2 3 4 5 6 11 12 13 14 15 16 17 18 19 20 21 22 23 A)

Rem Qty Description

4700387683 4700238158 4700385599 4700791185 4700792091 4700791211 4700901767 4700500075 4700570004 4700586002 4700904228 4700202042 A 4700903969 4700903741 4700901227 4700901228 4700901225 4700904281 4700791970

1 1 1 1 1 2 4 1 1 1 1 N 4 1 2 2 1 4 4

Distribution control plate Ignition switch Buzzer Fuse box Fuse holder Contact bridge Screw ST3,5x9,5 Black Screw M6-1,0x25 8.8 Nut M6X1,00 -8 A2K Lock nut M6 -8 Washer 6,4x12x1,5 Rubber strip Screw ST4,8x19 Black Fuse 20A Yellow Medium Fuse 10A Fuse 15A Fuse 5A Washer 5,3x10x1 300HV Speed nut

Code D B B C C C C C C C A A A A C D

L = 0,07 m

SCC1200-1EN3

157

Dynapac Compaction Equipment AB Standard ECU-module

158

SCC1200-1EN3

Dynapac Compaction Equipment AB Standard ECU-module Item Part No 1 2 3 4 5 6 7 8 9 10

4700388447 4812114386 4700791775 4700904556 4700586003 4700383705 4700357643 4700791226 4700903425 4700500505

SCC1200-1EN3

Rem Qty Description 1 1 2 2 2 1 1 4 1 2

Cover Control unit, ECU Bolt Washer 8,4x16x3,0 Lock nut M8 Instruction book holder Wire Screw Decal "SAFETY MANUAL" Screw M8x20 8.8

Code D C C C C D D C D C

159

Dynapac Compaction Equipment AB Forward-Reverse control module

160

SCC1200-1EN3

Dynapac Compaction Equipment AB Forward-Reverse control module Item Part No 1 2 3 4 5 6 7 8 A)

Rem Qty Description

4812113676 4812111128 4700904229 4700508092 4700500180 4812113523 4700904044 4812156577 A

1 1 5 3 2 2 2 1

Forward-reverse control ( Page 162 ) Casing Steel plain washer 8,4x16x1,5 Screw Screw Spacer sleeve Lock washer Cable

Code C C C C D C

L = 2,80 m

SCC1200-1EN3

161

Dynapac Compaction Equipment AB 4812113676 Forward-reverse control

162

SCC1200-1EN3

Dynapac Compaction Equipment AB 4812113676 Forward-reverse control Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42

4812156558 4812156559 4812156560 4812156561 4812156562

4812156563 4812156564 4812156565 4812156566 4812156567

4812156568 4812156490 4812156569 4812156570 4812156571 4812156572

4812156573 4812156574

4812156575 4812156576

SCC1200-1EN3

Rem Qty Description 1 1 1 2 1 2 2 1 1 1 1 1 2 1 4 1 1 1 1 1 1 1 1 2 2 2 2 2 1 2 1 4 1 1

Code

Handle top Handle Push button switch Protection plug Sleeve (knob) Nut M5 Screw M5 Central shaft . Gear Bushing Sphere Spring Screw M5 Spring house Lock nut M3 Lock nut M6 Spacer Potentiometer with cable . Gear . Internal spacer . Shaft . External spacer Screw M6 Screw M3 Screw M3 Lock nut M12 Sealing Washer Bracket Lock nut M5 Bushing Screw M5 Lever Bellow

163

Dynapac Compaction Equipment AB Forward-reverse control left (option)

164

SCC1200-1EN3

Dynapac Compaction Equipment AB Forward-reverse control left (option) Item Part No 2 3 4 5 6 7 8 9 10 12 13 14 15 16

4812111128 4812113523 4700904229 4700500180 4700904044 4700500053 4812112014 4812112013 4812113676 4700508048 4700791926 4700904230 4700500031 4700586018

SCC1200-1EN3

Rem Qty Description 1 1 6 2 2 2 1 1 1 2 1 4 2 2

Casing Spacer sleeve Steel plain washer 8,4x16x1,5 Screw Lock washer Screw M8x20H 8.8 Connecting link Bracket Forward-reverse control ( Page 162 ) Hexagon socket head cap screw Y-bearing unit Steel plain washer Screw M10x040 8.8 Hexagon lock nut

Code D C C C C C D C C D C C C

165

Dynapac Compaction Equipment AB Cover plate, Dual F&R-control left side

166

SCC1200-1EN3

Dynapac Compaction Equipment AB Cover plate, Dual F&R-control left side Item Part No 1 2 3

4812113987 4700904229 4700791333

SCC1200-1EN3

Rem Qty Description 1 4 4

Cover plate Steel plain washer 8,4x16x1,5 Screw

Code D C C

167

Dynapac Compaction Equipment AB Throttle control cpl

168

SCC1200-1EN3

Dynapac Compaction Equipment AB Throttle control cpl Item Part No 1

2 3 4 A)

Rem Qty Description

4812113165 4700389177 4700382349 4700396215 4700904228 4700500061 4812113164 A

1 1 1 1 1 2 2 1

Throttle control . Snap plate . Bellows . Connection . Control Washer 6,4x12x1,5 Screw M6-1X35 8,8 . Cable harness

Code B D D D C C

L = 2,23 m

SCC1200-1EN3

169

Dynapac Compaction Equipment AB Throttle control cpl, Dual frequency (option)

170

SCC1200-1EN3

Dynapac Compaction Equipment AB Throttle control cpl, Dual frequency (option) Item Part No 1

2 3 A)

Rem Qty Description

4812113166 4812113164 A 4812113937 4700382349 4700396215 4700904228 4700500061

1 1 1 1 1 1 2 2

Throttle control . Cable harness . Snap plate . Bellows . Connection . Control Washer 6,4x12x1,5 Screw M6-1X35 8,8

Code B

D D C C

L = 2,23 m

SCC1200-1EN3

171

Dynapac Compaction Equipment AB Arm rests, seat belt, laterally adjusting

172

SCC1200-1EN3

Dynapac Compaction Equipment AB Arm rests, seat belt, laterally adjusting Item Part No

Rem Qty Description

1 2 3 4 5 6 7 13

A B

4700909536 4700909535 4700508092 4700500020 4700904229 4700586003 4700377518 4700377677 4700379637

14 15 16 A) B) F) G)

F G

1 1 10 4 6 4 1 1 1 2 2 2

Sliding rail Right Sliding rail Left Screw Screw M8-1,25x22 8,8 Steel plain washer 8,4x16x1,5 Lock nut M8 Drivers seat, cpl Seat belt 2" Seat belt 3" . Screw . Nut . Protection cap

Code D D C D C C D B B

Rear Front CPL Option, 3 "

SCC1200-1EN3

173

Dynapac Compaction Equipment AB Step (option)

174

SCC1200-1EN3

Dynapac Compaction Equipment AB Step (option) Item Part No 1 2 3 4 5

4700374132 4700374133 4700500021 4700904229 4700603009

SCC1200-1EN3

Rem Qty Description 1 1 4 4 4

Step Step Screw M8-1,25x25 8.8 Steel plain washer 8,4x16x1,5 Washer

Code D D C C C

175

Dynapac Compaction Equipment AB Driver seat without armrests (option)

176

SCC1200-1EN3

Dynapac Compaction Equipment AB Driver seat without armrests (option) Item Part No 1 2 3 4 5 6 7 8 9 10 11

4700377518 4700379636 4700904229 4700586003 4812112669 4700904229 4700500020 4700348331 4700904218 4700904281 4700533070 4700586001

SCC1200-1EN3

Rem Qty Description 1 1 4 4 1 4 4 1 1 1 1 1

Drivers seat, cpl . Seat switch Steel plain washer 8,4x16x1,5 Lock nut M8 Seat frame Steel plain washer 8,4x16x1,5 Screw M8-1,25x22 8,8 Seat cover Holder Washer 5,3x10x1 300HV Screw Lock nut

Code D B C C D C D D C C D C

177

Dynapac Compaction Equipment AB Driver seat, Luxury without armrests (option)

178

SCC1200-1EN3

Dynapac Compaction Equipment AB Driver seat, Luxury without armrests (option) Item Part No 1 2 3 4 5 6 7 8 9

4812114975 4700382237 4700909535 4700909536 4812115001 4700904556 4700508005 4700508092 4700386075

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 10 10 4 1

Driver seat (without armrests) Bracket Sliding rail Left Sliding rail Right Cable harness Washer 8,4x16x3,0 Screw Screw Seat protection

Code D D D C C D

179

Dynapac Compaction Equipment AB Seat belt module 3"

180

SCC1200-1EN3

Dynapac Compaction Equipment AB Seat belt module 3" Item Part No 1

4700379637

SCC1200-1EN3

Rem Qty Description 1

Seat belt 3"

Code B

181

Dynapac Compaction Equipment AB Seat belt module 2"

182

SCC1200-1EN3

Dynapac Compaction Equipment AB Seat belt module 2" Item Part No 1

4700377677

SCC1200-1EN3

Rem Qty Description 1

Seat belt 2"

Code B

183

Dynapac Compaction Equipment AB Rear view mirror (option)

184

SCC1200-1EN3

Dynapac Compaction Equipment AB Rear view mirror (option) Item Part No 1 1-A 1-B 1-C 1-D 1-E 1-F 1-G 2 3 4 5 6 8 9

4700393204 4700359661 4700500023 4700904229 4700904203 4700900519 4700393206 4700903722 4700500079 4700904228 4700923859 4700902496 4812110283 4700791453 4700791454

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 2 1 1 4 4 1 1 1 1 1

Rear mirror . Arm . Screw M8-1,25x40 8,8 . Steel plain washer 8,4x16x1,5 . Nut protection . Plug . Edge trim . Mirror glass Screw M6-1x50 8,8 Washer 6,4x12x1,5 Cover plate Clamp Bracket Pipe clamp block Cover plate

Code C D C C D D D C C C D D

185

Dynapac Compaction Equipment AB ROPS, foldable (option)

186

SCC1200-1EN3

Dynapac Compaction Equipment AB ROPS, foldable (option) Item Part No 1 2 3 4 6 A) B)

Rem Qty Description A,B

4700900986 4700902203 4700791396 4700903634

1 4 3 8 6

Rops Plug Plug Plug Screw

Code D C C

Not sold separately due to safety regulations Only available as a complete ROPS kit; please check the machine SN, and contact Dynapac for valid PN

SCC1200-1EN3

187

Dynapac Compaction Equipment AB Rops (option)

188

SCC1200-1EN3

Dynapac Compaction Equipment AB Rops (option) Item Part No 1 2 7 8 12 A) B)

Rem Qty Description A,B

4700903634 4700900986 4700902203 4700791396

1 6 4 5 8

Rops Screw Plug Plug Plug

Code D C C

Not sold separately due to safety regulations Only available as a complete ROPS kit; please check the machine SN, and contact Dynapac for valid PN

SCC1200-1EN3

189

Dynapac Compaction Equipment AB Canopy (option)

190

SCC1200-1EN3

Dynapac Compaction Equipment AB Canopy (option) Item Part No

Rem Qty Description

1 2 3 4 5 6 7 8 9 10

1 A B

11 12 13 14 15 16 17 18 19 1) 2) A) B)

4700358801 4700358802 4700500030 4700600008 4700586018 4700500195 4700358789 4700358790 4700500111 4700500133 4700586019 4700586019 4700904231 4700904231 4700516042 4700904229 4700500021 4700904094 4700358782 4700358783 4700500071

A B

2 2

2

1 1 4 6 2 2 1 1 2 2 6 4 12 8 4 4 4 1 1 1 4

Rops Frame Frame Screw M10x035H 8.8 A3K Washer Hexagon lock nut Screw Frame Frame Screw M12x55 8,8 Screw Lock nut Lock nut Washer 13x24x2 300 HV Washer 13x24x2 300 HV Stop screw Steel plain washer 8,4x16x1,5 Screw M8-1,25x25 8.8 Decal "DYNAPAC" L=670 mm Canopy Frame Screw M12-1,75x75 8,8

Code D D C C C C D D C C C C C C C C C D D C

Rops, see section " Rops " Canopy for rops Right Left

SCC1200-1EN3

191

Dynapac Compaction Equipment AB Decals

192

SCC1200-1EN3

Dynapac Compaction Equipment AB Decals Item Part No 1

SCC1200-1EN3

Rem Qty Description

Code

Decals ( Page 194 )

193

Dynapac Compaction Equipment AB Decals

194

SCC1200-1EN3

Dynapac Compaction Equipment AB Decals Item Part No 1 3 7 8 10 11 12 14 20 26 27 28 33 34 35 36 37 38 40 41 42 43 44 45 46 A) B) C)

Rem Qty Description

4700903459 A 4700903425 4700904870 4700357587 4700904097 4700904262 4700991657 4700903422 B 4700991658 4811000354 4700903423 C 4700903424 4700272372 4700908229 4700382751 4700904835 4700377742 4700377744 4700377743 4700791274 4812112741 4811000128 4812112740 4700791642 4700272373 4812115918

1 1 2 2 4 4 1 2 1 2 2 2 1 2 4 1 2 2 2 1 1 1 1 1 1 1

Decal "SAFETY" Decal "SAFETY MANUAL" Lifting sign Decal "LIFT POINT" Decal "DYNAPAC" L=290 mm, White Decal "DYNAPAC" L=290 mm, Red Decal "WATER" Decal "SAFETY" Decal "FUEL" Decal "MODEL CODE" CC1200, white Decal "SAFETY" Decal "HOT SURFACE" Decal "HYDRAULIC OIL" Safety decal Decal "TIE DOWN POINT" Decal "BATTERY POWER" Reflector, red Reflector, yellow Reflector, white Decal "Sound power level" 104 dB Decal Red, right side Decal Decal Red, left side Decal "WARNING" Use of starting fluid prohib.

Decal "HYDRAULIC OIL" Decal "Starting instruction"

Code D D D D

D D D D D D D D D D D D D D D D D D D

Read instruction manual Hazardous area Engine fan

SCC1200-1EN3

195

Dynapac Compaction Equipment AB Optional equipment

196

SCC1200-1EN3

Dynapac Compaction Equipment AB Optional equipment Item Part No 7 10 65 68 69 70 71

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1

Code

Fire extinguisher ( Page 198 ) Tool equipment ( Page 200 ) SMV-sign and Licence plate ( Page 202 ) Brake release, propulsion motor Poclain ( Page 204 ) Brake release, high torque drum drive ( Page 206 ) High torque drum drive " Short" ( Page 208 ) Vibration shut-off Front drum (option) ( Page 98 )

197

Dynapac Compaction Equipment AB Fire extinguisher

198

SCC1200-1EN3

Dynapac Compaction Equipment AB Fire extinguisher Item Part No 1 2 3 4

4700378857 4700378858 4700792185

SCC1200-1EN3

Rem Qty Description 1 1 2 2

Fire extinguisher Holder Strap Screw M6x16

Code C C

199

Dynapac Compaction Equipment AB Tool equipment

200

SCC1200-1EN3

Dynapac Compaction Equipment AB Tool equipment Item Part No 1 2 3 4

5 10

4700485019 4700902610 4700311016 4700792137 4700792138 4700792139 4700792140 4700792141 4700277992

SCC1200-1EN3

Rem Qty Description 1 1 1 1 1 1 1 1 1

Screw driver Belt pliers Grease gun Open end spanner 10 mm Open end spanner 13 mm Open end spanner 16 mm Open end spanner 18 mm Wrench 250 mm Tool bag

Code D D D D D D D D

201

Dynapac Compaction Equipment AB SMV-sign and Licence plate

202

SCC1200-1EN3

Dynapac Compaction Equipment AB SMV-sign and Licence plate Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14

4700355797 4700929455 4700985013 4700394301 4700535008 4700476019 4700601001 4700500080 4700355704 4700904281 4700586001 4700904228 4700586002 4812114665

SCC1200-1EN3

Rem Qty Description 1 1 1 2 2 1 4 4 4 4 4 2 2 1

Licence plate holder Licence plate light Bulb 12V,5W Spacer sleeve Screw M5x20 SMV-sign Washer Screw Spacer sleeve Washer 5,3x10x1 300HV Lock nut Washer 6,4x12x1,5 Lock nut M6 -8 Cable harness

Code D B C D C C C C C C

203

Dynapac Compaction Equipment AB Brake release, propulsion motor Poclain

204

SCC1200-1EN3

Dynapac Compaction Equipment AB Brake release, propulsion motor Poclain Item Part No 1 2 3 4 5

4700392070 4700357892 4700792550 4700928849 4700904213

SCC1200-1EN3

Rem Qty Description 1 2 2 2 4

Brake release kit . Stirrup . Screw M12x100 10.9 . Nut M12-1,75 . Washer

Code D C C C

205

Dynapac Compaction Equipment AB Brake release, high torque drum drive

206

SCC1200-1EN3

Dynapac Compaction Equipment AB Brake release, high torque drum drive Item Part No 2 3 4 5

4700357892 4700792550 4700928849 4700904213

SCC1200-1EN3

Rem Qty Description 1 1 1 2

. Stirrup . Screw M12x100 10.9 . Nut M12-1,75 . Washer

Code D C C C

207

Dynapac Compaction Equipment AB High torque drum drive " Short"

208

SCC1200-1EN3

Dynapac Compaction Equipment AB High torque drum drive " Short" Item Part No 1 2 3 4 5 6 7 8 9 10

4812113950 4700380594 4700586019 4700500056 4700904231 4700357222 4700357221 4700904232 4700500094

SCC1200-1EN3

Rem Qty Description 1 1 10 10 14 2 2 6 6 N

Fork Hydraulic motor, propulsion, drum ( Page 210 ) Lock nut Screw Washer 13x24x2 300 HV Shim T=1 mm Shim T=3 mm Washer Screw M16x090 Hydraulic details

Code C C C C D D C

209

Dynapac Compaction Equipment AB 4700380594 Hydraulic motor, propulsion, drum

210

SCC1200-1EN3

Dynapac Compaction Equipment AB 4700380594 Hydraulic motor, propulsion, drum Item Part No 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 A) B)

Rem Qty Description

A 4700908788 4700937875 4700902387 4700902388 4700902389 4700902390 4700902391 4700902392 4700937876 4700903453 4700937091 4700937092 4700937877 4700937878 4700937879 4700937880 4700902397 4700902398 4700902399 A 4700937881 4700937882 4700908791 4700908792 4700908328 A 4700903295 4700908800 B 4700902410 4700902411 4700902412 4700902413 4700902416 4700908794 4700903450 4700937089 4700903324

4700902800 4700903455 4700937812 4700903327 4700937090

1 1 1 1 1 1 1 5 5 1 8 8 2 2 1 1 1 1 9 1 10 1 1 1 1 1 1 N N 12 8 1 1 8 1 1 1 1 1 1 1 1 1 1 1 1

Hydraulic motor . Shaft . Housing . Washer T=2,0 mm . Split ring . Bearing . Bearing . Wheel stud . Wheel nut . Cylinder block . Roller . Piston . Circlip . Retaining ring . Piston cam . Housing . Distributor ring . Pin . Spring . Plug . Screw . Brake housing . Shaft . Piston . End cover . Plug . Disc kit . Shim T=0,1 mm . Shim T=0,3 mm . Screw . Screw . Spring . Nylon buch . Washer . Seal kit . . Shaft seal . . Sealing . . Sealing . . Sealing . . O-ring . . O-ring . . Gasket . . Quad ring . . Sealing . . O-ring . . Face seal

Code D D C D D D D D D D C D C C D D C D D C D C C D D C C C C D D C D

C D D D

CPL 15+13 pcs

SCC1200-1EN3

211

SCC1200-1EN3

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number Ball bearing 4700111018 Retaining 4700151012 ring O-ring 4700160016 O-ring 4700160025 O-ring 4700160031 O-ring 4700160112 O-ring 4700160132 O-ring 4700160219 O-ring 70 4700160313 Sealing 4700162004 Seal ring 4700162017 Sealing 4700163049 V-ring 4700167044 Edge trim 4700202028 Rubber strip 4700202042 Cap 4700230400 Connector4700230515 Plug 4700232070 Plug 4700232122 Ball valve 4700233215 Tee-connector 4700234218 Adapter 4700234233 Elbow 45 4700234341 Connector4700234390 Connector4700234481 Tee-connector 4700234888 Ignition switch 4700238158 Slide bearing 4700238272 Decal "HYDRAULIC 4700272372 OIL" Decal "HYDRAULIC 4700272373 OIL" Tool bag 4700277992 Solenoid valve 4700287713 Edge trim 4700288129 Grease gun 4700311016 Hose clamp 4700313002 Hose clamp 4700313004 Hose clamp 4700313008 Hose clamp 4700313010 Hose clamp 4700313023 Cable ties 4700313041 Hose clamp 4700313075 Cable ties 4700313102 Hose clamp 4700313108 Screw 4700330081 Copper washer 4700330333 Cap hydraulic 4700330383 Plug 4700332038 Straight o-ring 4700334116 connector Straight connector 4700334121 Connector4700334134 Tee-connector 4700334135 Elbow 90 4700334155 Adapter 4700334156 Adapter 4700334165 Elbow 90 4700334197 Elbow 90 4700334235 Elbow 90 o-ring 4700334238 Connector4700334463 Connector4700334524 Air breather 4700343490 Magnetic plug 4700343744

Page 19,45 93 87 93 87 25 17,19,45 39 39 97 45 17,19,45 25,31 49,55 157 83,95 49 81 87 39 81 95 87 87 87 95 157 93 195 195 201 39 55 201 39 73 73,87 75 75 41,123,125,127 129,137,141,145 77 81,87,91,95 73,77 49 49 49,83 97 99 87 81 81,87,99 81 81 99 83,99 81,87,97 81,87 95 87 45 45

Part Number Shock absorber 4700345215 Mounting plate 4700346505 Shim 4700347153 Shim 4700347154 Shim 4700347155 Seat cover4700348331 Coupling 4700349202 Cover 4700349879 O-ring 4700349880 Flat key 4700350009 Key 4700350029 Spacer sleeve 4700355704 Licence plate 4700355797 holder Spacer sleeve 4700355869 Decal 4700355981 Bearing housing 4700357020 Bracket 4700357031 Bracket 4700357038 Shaft 4700357039 Drive disc 4700357055 Drum 4700357058 Eccentric shaft 4700357060 Rubber cloth 4700357111 Cover plate 4700357112 Spacer sleeve 4700357113 Ventilating4700357138 filter Connector4700357139 Shim 4700357221 Shim 4700357222 Holder plate 4700357395 Sealing 4700357418 Rubber cloth 4700357459 Holder plate 4700357466 Shaft 4700357487 Hair pin 4700357489 Valve 4700357543 Relay holder 4700357562 Battery switch, 4700357567 cpl Decal "LIFT 4700357587 POINT" Protection4700357604 Protection4700357605 Wire 4700357643 Lamp holder 4700357663 Lamp holder 4700357679 Bushing 4700357855 Stirrup 4700357892 Solenoid valve 4700357934 Flow divider 4700358003 Washer 4700358232 Rubber strip 4700358486 Bearing housing 4700358587 Scraper bracket 4700358588 Scraper bracket 4700358589 Adapter 4700358666 Spacer ring 4700358689 Canopy 4700358782 Frame 4700358783 Frame 4700358789 Frame 4700358790 Frame 4700358801 Frame 4700358802 Strainer 4700358846

Page 23,45 45 25,31 25,31 25,31 177 45 29 29 55 45 203 203 77,81,97,155 97 45 31 31 31 45 45 45 81 81 81 13,87 87 33,209 23,33,209 39 25,31 33 71 29 29 89,99 109 107 195 149 149 159 127 127 153 205,207 99 97 149 87 45 35 35 45 45 191 191 191 191 191 191 39

Part Number

Page

Spring 4700358876 37 Pad lock 4700358881 153 Bearing housing 4700358976 31 Hitch shaft4700358978 31 Cap 4700359003 39 Arm 4700359661 185 Hose clamp 4700371313 81,87,89 Hose clamp 4700371314 81,87,89 Hydraulic pump, 4700372352 propulsion 81 Steering wheel, 4700372964 cpl 155 Flange 4700373402 81 Rubber hose 4700373478 87 Step 4700374132 175 Step 4700374133 175 Steering cylinder 4700374603 91,93 Scraper bracket 4700376624 35 Lock plate4700377061 63,65 Decal 4700377139 153 Drivers seat, 4700377518 cpl 173,177 Seat belt 4700377677 173,183 Reflector, 4700377742 red 195 Reflector, 4700377743 white 195 Reflector, 4700377744 yellow 195 Scraper bracket 4700377795 35,37 Holder 4700378857 199 Strap 4700378858 199 Valve 4700379009 39 Holder 4700379179 29,33,45 Gasket 4700379458 87 Seat switch 4700379636 177 Seat belt 4700379637 173,181 Gasket 4700379753 39 Screw 4700380255 37 Hydraulic motor, 4700380594 propulsion, drum 209,211 Bracket 4700382237 179 Bellows 4700382349 169,171 Decal "TIE4700382751 DOWN POINT" 195 Instruction4700383705 book holder 159 Scraper bracket 4700384050 37 Spacer sleeve 4700384493 35,37 Buzzer 4700385599 157 Hook 4700385613 37 Spacer 4700385628 37 Scraper bracket 4700385672 35 Scraper bracket 4700385674 35,37 Scraper 4700385675 21,35,37 Seat protection 4700386075 179 Hydraulic hose 4700386134 87 Expansion4700386893 reservoir 59 Air filter 4700386951 57 Column cover 4700387226 149 Control panel 4700387227 cover 153 Plate 4700387428 59 Latch 4700387545 153 Level gauge 4700387552 71 Distribution4700387683 control plate 157 Control panel 4700387720 holder 153 Handle 4700387948 63,65 Holder side 4700388382 light 141 Cover 4700388447 159 Potentiometer 4700388737 153 Latch 4700388846 63,65

NI 1

SCC1200-1EN3

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Lock plate4700388852 67,69 Sprinkler pipe/bracket 4700389148 35,37 Snap plate4700389177 169 Bracket 4700389561 123,125 Rotating beacon 4700389577 123,125,127 Connector4700389840 w. Fixing collar 109 Scraper bracket 4700389998 37 Scraper bracket 4700389999 37 Hydraulic motor, 4700390742 propulsion, drum 81,83,85 Spacer sleeve 4700391115 107,117 Hydraulic motor 4700391270 87 Control panel 4700391784 153 Rubber cross 4700391929 45 Spraying nozzle, 4700392011 cpl 39 Brake release 4700392070 kit 205 Swivel nut4700392227 39 Plane gasket 4700392229 39 Grommet 4700392230 39 Nut 4700392232 39 Housing 4700392508 41 Retainer, nozzle, 4700392509 strainer, yellow39 Gasket 4700392510 41 Rear mirror 4700393204 185 Edge trim 4700393206 185 Threaded 4700393540 plate 29,33 Hose connection 4700393542 swivel 41 Fuel cap 4700394253 71 Spacer sleeve 4700394301 203 Control panel 4700395394 153 Control 4700396215 169,171 Bracket 4700396768 143 SMV-sign 4700476019 203 Washer 4700480124 87 O-ring 70 4700480852 41 Hydraulic hose 4700482208 97 Hydraulic hose 4700482214 97 Hydraulic hose 4700482242 87 Hydraulic hose 4700482306 87 Hydraulic hose 4700482452 81 Hydraulic hose 4700482483 95 Hydraulic hose 4700482525 87 Hydraulic hose 4700482553 81 Hydraulic hose 4700482773 97 Hydraulic hose 4700482830 81 Hydraulic hose 4700482898 99 Hydraulic hose 4700482998 81 Hydraulic hose 4700483069 83 Hydraulic hose 4700483118 81 Hydraulic hose 4700483155 87 Hydraulic hose 4700483157 87 Hydraulic hose 4700483162 87 Hydraulic hose 4700483164 83 Hydraulic hose 4700483404 95 Hydraulic hose 4700483420 95 Hydraulic hose 4700483585 99 Hydraulic hose 4700483765 91 Screw driver 4700485019 201 Hand knob4700499162 127 Indicator 4700499497 57 Screw 4700500006 109 Screw 4700500007 153 NI 2 Screw 4700500012 143

Part Number Screw 4700500013 Screw 4700500015 Screw 4700500016 Hexagon head 4700500019 screw Screw 4700500020

Page

63,65,69 37,59 29 29,49,87,143,149 41,55,81,103,173 177 Screw 4700500021 49,55,175,191 Screw 4700500022 41,77 Screw 4700500023 185 Screw 4700500028 31,39,127 Hexagon head 4700500029 screw 45 Screw 4700500030 67,153,191 Screw 4700500031 155,165 Screw 4700500034 97 Screw 4700500037 81 Screw 4700500040 59 Screw 4700500044 45 Screw 4700500046 35,37,49 Hexagon head 4700500047 screw 37 Screw 4700500048 155 Screw 4700500049 37 Screw 4700500053 39,49,63,65,71 83,89,165 Screw 4700500056 35,37,209 Screw 4700500061 169,171 Screw 4700500067 87 Screw 4700500068 81 Screw 4700500071 191 Screw 4700500075 157 Screw 4700500078 87 Screw 4700500079 185 Screw 4700500080 203 Screw 4700500094 33,209 Screw 4700500096 117 Screw 4700500100 29,55,61 Screw 4700500111 191 Screw 4700500115 63,65 Screw 4700500117 149 Screw 4700500133 37,191 Screw 4700500143 123,125 Screw 4700500180 161,165 Screw 4700500190 39 Screw 4700500195 43,191 Screw 4700500269 81 Screw 4700500505 149,151,159 Screw 4700508005 179 Screw 4700508029 87,89 Hexagon socket 4700508048 head cap screw57,165 Screw 4700508079 55 Screw 4700508092 161,173,179 Screw 4700508096 53,81 Screw 4700513017 153 Stop screw4700516042 191 Screw 4700533016 97 Screw 4700533070 177 Screw 4700535008 203 Nut 4700570004 157 Nut 4700570006 37 Nut 4700573005 117 Lock nut 4700586001 109,177,203 Lock nut 4700586002 37,157,203 Lock nut 4700586003 63,65,81,103,107

Part Number Lock nut 4700586003

Page

123,125,159,173 177 Hexagon lock 4700586018 nut 29,37,81,115,127 165,191 Lock nut 4700586019 35,37,43,149,191 209 Washer 4700600002 97 Washer 4700600004 29 Washer 4700600008 31,191 Washer 4700600016 91 Washer 4700601001 203 Washer 4700603001 59 Washer 4700603009 175 Washer 4700603018 89 Washer 4700615076 29 Cotter pin 4700630019 91 Hair clip 4700635061 93 Screw 4700791082 37 Lock nut 4700791182 37,41 Fuse box 4700791185 157 Contact bridge 4700791211 157 Screw 4700791226 159 Decal "Sound 4700791274 power level" 195 Screw 4700791333 151,167 Screw 4700791343 151 Plug 4700791396 187,189 Elbow 90, 4700791398 O-ring 91 Elbow 90, 4700791401 O-ring with swivel 91 Straight o-ring 4700791405 connector 91 T-connection, 4700791414 O-ring with swivel91 Hose 4700791422 77 Pipe clamp4700791453 block 185 Cover plate 4700791454 185 Nut 4700791476 153 Gasket 4700791568 39 Switch, horn 4700791578 153 Switch, sprinkler 4700791579 153 Switch, vibration 4700791580 153 Switch, parking 4700791582 brake 153 Switch, driving 4700791583 light 129,137 Switch, hazard 4700791584 flashers 129,137 Switch, rotating 4700791585 beacon 123,127 Switch, working 4700791587 light 111 Panel plug4700791588 153 Decal "WARNING" 4700791642 195 Screw 4700791643 141 Blind rivet 4700791666 63,65,67,69 Side direction 4700791704 light 141 Connector4700791723 109 Emergency 4700791739 stop 109 Blind rivet 4700791754 113 Hose connection 4700791774 77 Bolt 4700791775 159 Straight connector 4700791847 91 Screw 4700791916 129,137 Y-bearing 4700791926 unit 165 Filter element 4700791949 39 Headlight 4700791951 131 Direction indicator 4700791953 131,139 Direction indicator 4700791954 133 Brake/position 4700791955 light 133 Reflector, 4700791957 white 113

SCC1200-1EN3

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number O-ring 4700791959 Lock nut 4700791963 Speed nut4700791970 Plug threaded 4700791974 Hose connection 4700791977 Rubber protection 4700791980 Connector4700791981 plug Headlight 4700792059 Plug 4700792083 Fuse holder 4700792091 Back-up alarm 4700792098 Screw 4700792119 Open end 4700792137 spanner Open end 4700792138 spanner Open end 4700792139 spanner Open end 4700792140 spanner Wrench 4700792141 Screw 4700792185 Battery 4700792311 Plug 4700792320 Switch, drive 4700792413 direction Cable tie with 4700792441 holder Screw 4700792550 O-ring 4700792600 Swivel nut4700792779 O-ring 4700813443 Elbow 90, 4700813444 O-ring Elbow 45, 4700813500 O-ring O-ring 4700892179 Plug 4700892446 Screw 4700900486 Plug 4700900519 Screw 4700900568 Bulb 4700900790 Plug 4700900986 Connector4700901156 Measuring4700901157 nipple Protective 4700901191 hose Fuse 4700901225 Fuse 4700901227 Fuse 4700901228 Screw 4700901330 Bulb 4700901369 Hose connection 4700901431 Hose connection 4700901432 Screw 4700901692 Screw 4700901767 Screw 4700902059 Lock nut 4700902060 Bushing 4700902061 Bushing 4700902062 Bushing 4700902063 Screw 4700902100 Screw 4700902101 Steering column 4700902123 Edge trim 4700902166 Clamp 4700902171 Cover plate 4700902172 Plug 4700902203 Work light 4700902227 Threaded 4700902233 stud Hexagon lock 4700902286 nut with flange

Page 39 35,37 157 39 41 123,125 123,125 139 153 157 143 49 201 201 201 201 201 199 105 153 129,137 109 205,207 41 39 83 81 99 25,31 81 55 185 49 131,139 187,189 81 83 41 109,129,137,157 109,129,137,157 109,157 37 113 39 39 87 157 31 31 25,31 25,31 25,31 29 29,33 155 63,65,151 29 29 187,189 113 81 63,65

Part Number Nut 4700902287 Clamp 4700902295 Edge trim 4700902379 Washer 4700902387 Split ring 4700902388 Bearing 4700902389 Bearing 4700902390 Wheel stud4700902391 Wheel nut4700902392 Pin 4700902397 Spring 4700902398 Plug 4700902399 Shim 4700902410 Shim 4700902411 Screw 4700902412 Screw 4700902413 Spring 4700902416 Clamp 4700902496 Screw 4700902520 Handle 4700902560 Cover 4700902576 Belt pliers 4700902610 Shock absorber 4700902797 Gasket 4700902800 Washer 4700902892 Plug 4700902919 Valve 4700903141 Coil 4700903142 Valve 4700903143 Check valve 4700903144 Retaining 4700903154 ring Grommet 4700903192 Plug 4700903287 Plug 4700903295 Shaft seal 4700903324 O-ring 4700903327 Decal "SAFETY" 4700903422 Decal "SAFETY" 4700903423 Decal "HOT 4700903424 SURFACE" Decal "SAFETY 4700903425 MANUAL" Seal kit 4700903431 Washer 4700903450 Roller 4700903453 Quad ring 4700903455 Decal "SAFETY" 4700903459 Absorbent4700903478 Screw 4700903634 Screw 4700903658 Cap 4700903714 Mirror glass 4700903722 Screw 4700903732 Fuse 4700903741 Cable tie holder 4700903810 Connector4700903925 Relay 4700903956 Screw 4700903969 Lock washer 4700904044 Decal "DYNAPAC" 4700904094 Decal "DYNAPAC" 4700904097 Connector4700904175 Nut protection 4700904203 Washer 4700904213

Page 37,49,87 87 81,87,151 211 211 211 211 211 211 211 211 211 211 211 211 211 211 185 29,107 107 31,93 201 149 211 149 149 97 97 97 97 45 149 45 211 211 211 195 195 195 159,195 87 211 211 211 153,195 39 187,189 153 59 185 107 109,157 141 81 109,129,137 157 49,55,161,165 191 195 97 185 205,207

Holder Plug Washer

Part Number

Page

4700904218 4700904225 4700904228

177 149 37,45,59,63,65 67,69,143,157 169,171,185,203 29,37,39,49,53 55,63,65,77,81 87,103,113,117 119,121,123,125 131,133,139,143 149,161,165,167 173,175,177,185 191 29,33,37,45,49 55,81,87,97,105 115,127,153,155 165 35,37,49,55,81 149,191,209 29,33,209 49 17,45 195 109,153,157,177 203 35,37 43 35,37 53 55,57,63,65,87 151,159,179 39,49,53,87 81 39,41,61,71,83 63,67,69 35,37,43,49,81 149 55 195 195 141 87 113,119,121,131 133,135,139 77 129,137 195 211 211 211 211 211 211 173,179 173,179 93 93 93 93 93 93 87

Steel plain4700904229 washer

Steel plain4700904230 washer

Washer

4700904231

Washer 4700904232 Washer 4700904233 Spherical roller 4700904258 bearing Decal "DYNAPAC" 4700904262 Washer 4700904281 Screw 4700904342 Decal "SAFETY" 4700904367 Screw 4700904424 Clamp 4700904475 Washer 4700904556 Steel plain4700904557 washer Washer 4700904637 Washer 4700904640 Washer 4700904698 Washer 4700904703 Steel plain4700904734 washer Decal "BATTERY 4700904835 POWER" Lifting sign4700904870 Bulb 4700904889 Tape 4700904901 Screw 4700904956 Fuel hose 4700904984 Flash relay4700904989 Safety decal 4700908229 End cover4700908328 Shaft 4700908788 Shaft 4700908791 Piston 4700908792 Nylon buch 4700908794 Disc kit 4700908800 Sliding rail4700909535 Sliding rail4700909536 Piston rod4700909759 Seal kit 4700909760 Shaft 4700909761 Piston block 4700909764 Cylinder tube 4700909765 Guide 4700909766 Measuring4700910161 nipple

NI 3

SCC1200-1EN3

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number

Page

Hose clamp 4700921022 81 Clamp 4700921072 123,125 Clamp 4700921099 83 Clamp 4700921104 77 Clamp 4700921116 49 Pipe clamp4700921119 55,89 Screw 4700923247 29 Protective 4700923270 plug 63,65 Adapter 4700923371 87 Measuring4700923405 nipple 91 Connector4700923406 99 Adapter 4700923407 97 Hose connection 4700923734 39 Hose connection 4700923735 39 Plug 4700923844 149 Cover plate 4700923859 185 Screw 4700923862 55 O-ring 4700923951 17,45 Nut 4700923976 63,65,67,69,97 Hose connection 4700924544 39 Connector4700924731 81 Valve 4700925599 39 Grease fitting 4700926214 25,31,93 Protective 4700926215 plug 149 Rubber strip 4700926911 39 Screw 4700927396 33 Adapter 4700927459 87 Hexagon socket 4700927637 countersunk screw 81 Washer 4700928441 67,117 Rubber washer 4700928830 155 Nut 4700928849 205,207 Licence plate 4700929455 light 203 Plug, cpl 4700937053 39 Seal kit 4700937089 211 Face seal 4700937090 211 Piston 4700937091 211 Circlip 4700937092 211 Sealing 4700937812 211 Housing 4700937875 211 Cylinder block 4700937876 211 Retaining 4700937877 ring 211 Piston cam4700937878 211 Housing 4700937879 211 Distributor4700937880 ring 211 Screw 4700937881 211 Brake housing 4700937882 211 Lube grease 4700938534 25 Steering hitch 4700938575 kit 15,25 Shock absorber 4700938885 kit, drum 15,23 Drum rotation 4700938892 kit 15,19 Eccentric shaft 4700938908 kit 15,17 Scraper kit4700938914 15,21 Air filter element 4700939802 13,57 Air filter element 4700939803 13,57 Dust cap 4700939804 57 Vacuator cap 4700939805 57 Plastic mounting 4700939806 band 57 O-ring 4700939807 57 Key 4700945753 71 End cap kit4700950226 85 O-ring 4700950293 85 NI 4 Seal kit 4700950414 85

Part Number

Page

Brake disc4700950415 kit 85 Seal kit 4700950416 85 Connector4700960079 141 Connector4700960796 109 Bulb 4700985012 123,125,131,139 Bulb 4700985013 203 Oil level glass 4700989151 87 Decal "WATER" 4700991657 195 Decal "FUEL" 4700991658 195 Horn 4700999027 103 Connection 4811000077 cable 125 Hydraulic hose 4811000084 81 Decal 4811000128 109,195 Cap 4811000168 39 Screw 4811000285 49 Battery cable 4811000320 109 Battery cable 4811000321 109 Connection 4811000322 cable 109 Connection 4811000323 cable 109 Switch 4811000346 145 Switch 4811000347 99 Decal "MODEL 4811000354 CODE" 195 Hydraulic hose 4811000372 87 Hydraulic hose 4811000382 87 Hydraulic hose 4811000383 87 Screw 4811000389 53 Screw 4811000425 63,65 Screw 4811000426 67,69 Hydraulic hose 4811000428 91 Screw 4811000440 105 Ball stud 4811000488 65,69 Coupling 4811000489 65,69 Work lamp4812110216 115,117 Screw 4812110229 35 Junction block 4812110281 81 Bracket 4812110283 185 Screw 4812110288 29,33 Holder 4812110490 81 Fan 4812110543 55 Power socket 4812110560 107 Hexagon head 4812110620 screw 45 Hexagon socket 4812110639 head cap screw45 Spacer 4812110673 45 Diesel engine, 4812110881 Kubota D1703 49,51 Casing 4812111128 161,165 Platform 4812111164 151 Water strainer, 4812111325 cpl 39 Hose connection 4812111330 swivel 39 Reducer nipple 4812111331 39 Bracket 4812111863 49 Bracket 4812111865 49 Shim 4812111866 49 Shim 4812111867 49 Shim 4812111868 49 Bracket 4812111870 59 Gasket 4812111876 75 Air inlet hose 4812111877 75 Bracket 4812111880 49 Cooler hose 4812111882 73 Bracket 4812111883 49 Rubber cloth 4812111890 29 Rubber cloth 4812111891 29

Part Number Bracket 4812111899 Bracket 4812111900 Engine oil 4812111905 drain hose Cover plate 4812111950 Light bracket 4812111951 Bracket 4812111952 Sprinkler tank 4812111968 Bracket 4812112013 Connecting 4812112014 link Bracket 4812112016 Muffler 4812112019 Flexible pipe 4812112021 Fan protection 4812112029 Hydraulic pump, 4812112054 vibration Plastic hose 4812112074 Steering column 4812112091 Steering valve 4812112109 Frame, front 4812112248 Frame, rear 4812112250 Clutch 4812112390 Bracket 4812112391 Fork 4812112446 Fork 4812112447 Hose connection 4812112451 Cable harness 4812112466 Cable harness 4812112467 Cable harness 4812112468 Cable harness 4812112470 Cable harness 4812112471 Cable harness 4812112472 Engine hood 4812112484 Hand rail 4812112532 Cable harness 4812112566 Seat frame4812112669 Decal 4812112740 Decal 4812112741 Ball valve 4812112831 Bracket 4812112994 Shock absorber 4812113018 Screw 4812113022 Screw 4812113044 Bracket 4812113066 Bracket 4812113067 Wiring harness 4812113077 Bracket 4812113079 Bracket 4812113080 Hand rail 4812113106 Hand rail 4812113107 Air hose 4812113136 Cable harness 4812113164 Throttle control 4812113165 Throttle control 4812113166 Fuel tank 4812113207 Shock absorber 4812113226 End pipe 4812113228 Bracket 4812113233 Spacer sleeve 4812113235 Contact 4812113326 Hydraulic oil 4812113327 filter Hydraulic oil 4812113328 filter element Flange 4812113333 Belt guard4812113468

Page 49 49 49 119 131,139 133 39 165 165 107 53 53 55 87 39,41 151 91 29 33 49 49 29,33 29,33 39 109 109 129,137 97 145 129,135,137 63 151 97 177 195 195 39 41 29 49 49 39 39 123,125,127 29 29 151 151 75 169,171 169 171 71 67 53 49 49 97 81 7,13 87 49

SCC1200-1EN3

Dynapac Compaction Equipment AB

NUMERICAL INDEX Part Number Water cooler 4812113471 Fan shroud 4812113472 Fan ring 4812113473 Spacer sleeve 4812113523 Bracket 4812113531 Rubber cloth 4812113532 Holder 4812113557 Bracket 4812113566 Heat protection 4812113575 Hinge 4812113598 Hinge 4812113626 Hinge 4812113627 Rubber cloth 4812113654 Forward-reverse 4812113676 control Fan hub 4812113691 Cooler hose 4812113694 Cooler hose 4812113697 Shim 4812113780 Rubber strip 4812113781 Water pump 4812113822 Control arm 4812113889 Spacer block 4812113924 Snap plate4812113937 Fork 4812113950 Screw 4812113980 Cover plate 4812113987 Gas spring4812114152 Gas spring4812114153 Bracket 4812114177 Control unit, 4812114386 ECU Rubber cloth 4812114557 Cable harness 4812114665 Plate 4812114733 Cover plate 4812114872 Cover 4812114961 Cover 4812114962 Driver seat4812114975 Cable harness 4812115001 Plate 4812115419 Engine hood, 4812115506 cpl Rotating beacon, 4812115525 w/o ROPS Towing device 4812115567 Decal "Starting 4812115918 instruction" Brake housing 4812155168 Bearing 4812156164 Bearing 4812156165 Instructions 4812156170 Engine oil 4812156259 filter element V-belt 4812156260 Valve cover 4812156261 gasket Fuel filter element 4812156263 Pre Fuel filter 4812156264 element Service kit4812156265 Service kit4812156266 Service kit4812156267 Service kit4812156288 Starter 4812156355 Piston ring4812156356 set Oil dip stick 4812156357 Oil cap 4812156358 O-ring 4812156359 Pulley, V-belt 4812156360

Page 61 55 55 161,165 113 29 105 49 39 63,65 63,65 63,65 29 161,163,165 55 73 73 49 41 39 83 29,33 171 209 49 167 63,65 63,65 49 159 105 203 59 121 65 69 179 179 43 47,65 101,127 43 153,195 85 85 85 23 7,9,11,13,51 11,13,51 13,51 7,11,13,49,51 7,11,13,51 5,7 5,11 5,13 5,9 51 51 51 51 51 51

Part Number Alternator,4812156362 Fan Pulley, alternator 4812156363 Alternator 4812156364 Fuel pump4812156389 Potentiometer 4812156490 with cable Handle top4812156558 Handle 4812156559 Push button 4812156560 switch Protection4812156561 plug Sleeve (knob) 4812156562 Central shaft 4812156563 Gear 4812156564 Sphere 4812156565 Spring 4812156566 Spring house 4812156567 Spacer 4812156568 Gear 4812156569 Internal spacer 4812156570 Shaft 4812156571 External spacer 4812156572 Sealing 4812156573 Bracket 4812156574 Lever 4812156575 Bellow 4812156576 Cable 4812156577 Brake piston 4812156755 ConnectorD433830401

Page

Part Number

Page

51 51 51 51 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 161 85 87

NI 5
