Removing the Mainboard

1. See “Removing the Upper Cover” on page 67. 2. See “Removing the Modem Module” on page 79. 3. Remove the single securing screw.

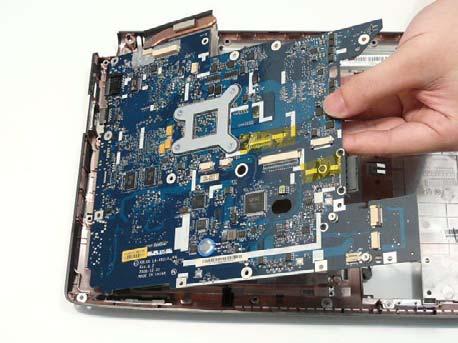

4. Lift the mainboard right side first to remove it from the Lower Cover.

Step

Size

Mainboard M2.5*3 1

Quantity Screw Type
