Bottom View

Next Article
LS-4921P Function Board

LS-4921P Function Board

Item Description Item Description

JP8 Keyboard Connector JHDMI1 HDMI Connector JP9 Fun/B Connector JREAD1 Card Reader Connector JP11 Camera Connector JMDC1 MDC Connector JP12 Speaker Connector Bottom View

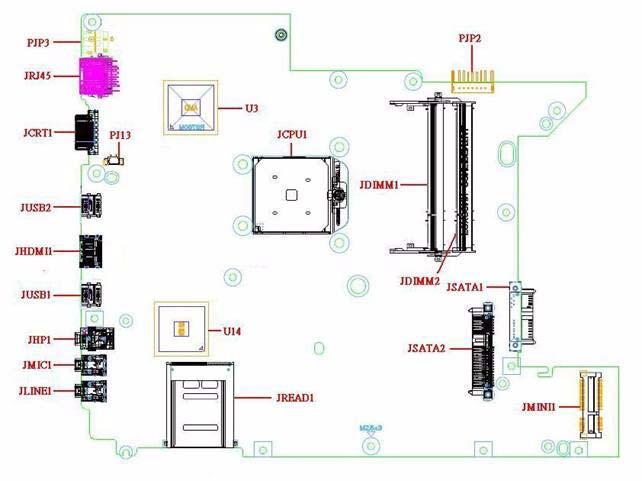

VGA UMA

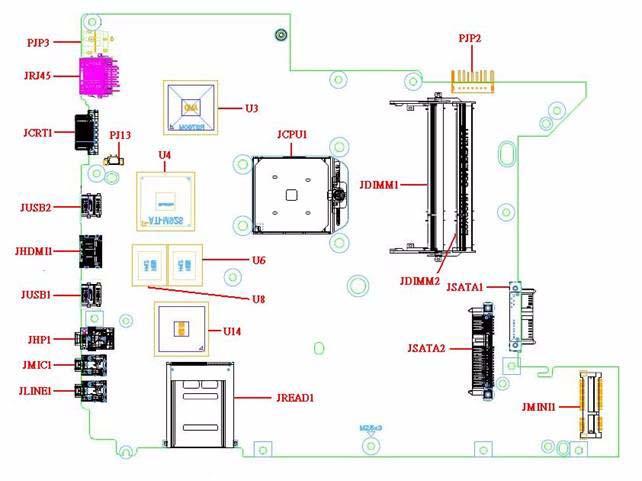

Discrete VGA

Item Description Item Description JHP1 Head-Phone Jack SW2 Touch pad (left) Button JMIC1 MIC-In Jack SW3 Touch pad (right) Button
