Top View

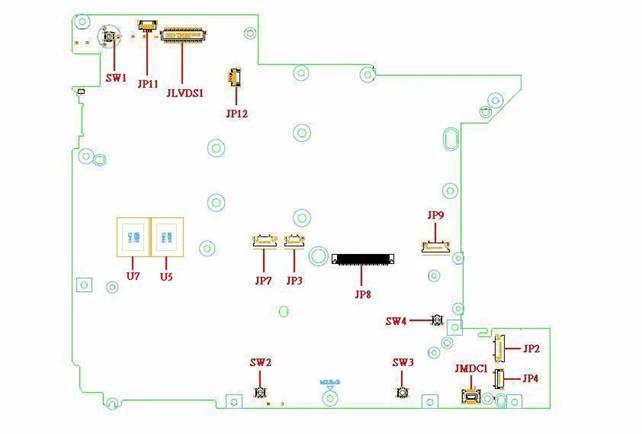

Jumper and Connector Locations

Top View

VGA UMA

Discrete VGA

Item Description Item Description

PJP2 Battery Connector JP13 Fan Connector PJP3 AC-IN Connector JLVDS1 LCD Connector JP2 USB/B Connector JRJ45 RJ45 Connector JP3 FP/B Connector JCRT1 CRT Connector JP4 Bluetooth Connector JUSB1 USB Connector JP7 Touch Pad Connector JUSB2 USB Connector
