LS-4921P Function Board

Item Description Item Description

JPLINE1 Line-In Jack SW4 Touch Pad Lock Button JSATA1 ODD Connector U3 North Bridge JSATA2 HDD Connector U4 GPU JMINI1 Wireless Card Connector U5 VRAM JDIMM2 MemoryDIMM2 Connector U6 VRAM JDIMM1 MemoryDIMM1 Connector U7 VRAM JCPU1 CPU Socket U8 VRAM SW1 ON/OFF Button U14 South Bridge

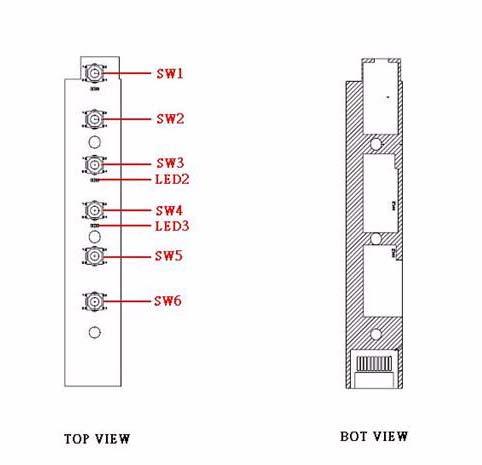

Item Description

LED2 ON/OFF LED LED3 Media LED SW1 Programming Button SW2 Back Up Button SW3 Bluetooth Button SW4 Wireless Button SW5 Volume Up Button SW6 Volume Down Button
