Chapter 5

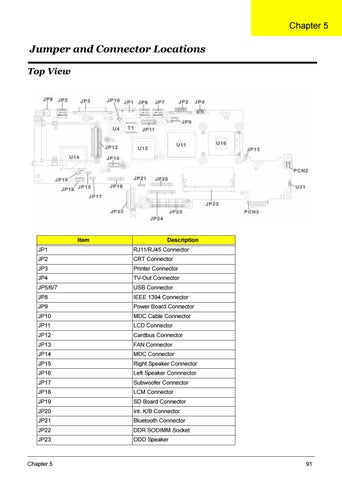

Jumper and Connector Locations Top View
Item
Description
JP1
RJ11/RJ45 Connector
JP2
CRT Connector
JP3
Printer Connector
JP4
TV-Out Connector
JP5/6/7
USB Connector
JP8
IEEE 1394 Connector
JP9
Power Board Connector
JP10
MDC Cable Connector
JP11
LCD Connector
JP12
Cardbus Connector
JP13
FAN Connector
JP14
MDC Connector
JP15
Right Speaker Connector
JP16
Left Speaker Connnector
JP17
Subwoofer Connector
JP18
LCM Connector
JP19
SD Board Connector
JP20
Int. K/B Connector
JP21
Bluetooth Connector
JP22
DDR SODIMM Socket
JP23
ODD Speaker
Chapter 5
91
