Rear Cover Assembly
B. Machined Sealing, Mounting, Bearing Surfaces Standard Park Brake Rear Cover
A. Housing B. Machined Sealing,
Mounting,Bearing
Surfaces
C. Output Speed Sensor
D. Output Tone Wheel
A. Inspect the housing for impact damage, chips and cracks. Inspect bolt holes for damaged threads. Replace the housing if damage cannot be repaired. NOTE: If cracks are detected on the four-wheel drive adapter housing, perform thorough driveline analysis checks to ensure driveline components are within specifications. B. Inspect machined surfaces for damage which might prevent proper sealing and/or seating. Inspect for deep scratches, scoring, grooves, nicks, burrs, chips and cracks. Replace the housing if damage cannot be repaired using a soft stone or crocus cloth.

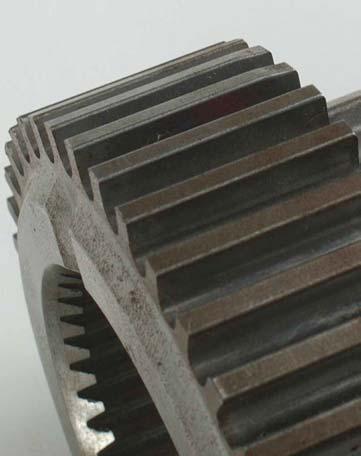

C. Inspect the output speed sensor for obvious external damage. Replace the sensor if it has body, terminal or connector damage. Inspect the seal ring for wear, damage and proper fit on the sensor and in its bore. Speed sensor resistance can be checked using an ohmmeter. Reference Troubleshooting Manual TS3192 for procedures and specifications. Inspect the output speed sensor bore for scoring, nicks, burrs, chips or cracks. Replace the housing if the damage cannot be repaired using a soft stone or crocus cloth. D. Replace the output speed sensor tone wheel if any teeth are chipped, missing, damaged or worn in a way that changes a tooth’s original shape. Inspect the internal splines for burrs, twisting or signs of battering. Replace the tone wheel if spline damage cannot be repaired using a soft stone or crocus cloth. Inspect the tone wheel’s contact surface faces for scoring, grooves, nicks and other damage which might prevent proper component seating. Replace the tone wheel if face damage cannot be repaired using a soft stone or crocus cloth.
(continued)
B. Machined Sealing,
Mounting,Bearing
Surfaces
A. Housing

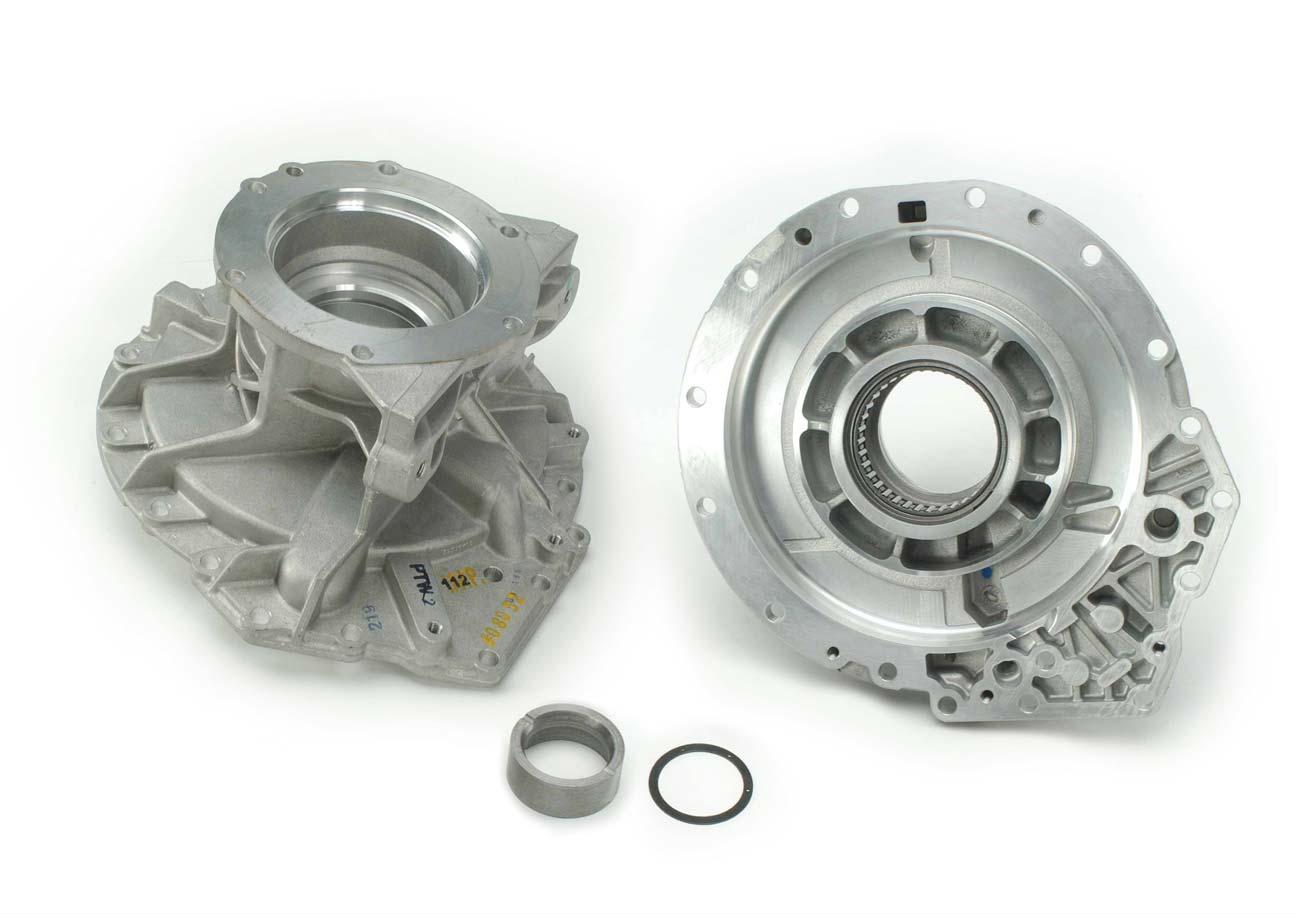

Four-Wheel Drive Adapter Housing
F. Spacer (4WD) E. Selective Shim C5 Feed
Park Pawl Retaining Pin Bore

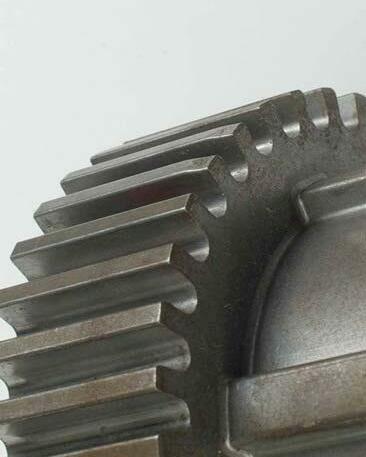

Tone wheel tooth imperfections - replace tone wheel.
E. Inspect the selective shim for chips, bends, cracks, wear or signs of deformity. Replace the shim if damage cannot be repaired using a soft stone or crocus cloth.
F. Inspect the output spacer on four-wheel drive models for cracks, burrs, chips and thrust surface face wear. Replace the spacer if damage cannot be repaired using a soft stone or crocus cloth.
NOTE: If cracks are detected on the four-wheel drive adapter housing, perform thorough driveline analysis checks to ensure driveline components are within specifications.
