REFITTING THE COMPLETE ENGINE

Operation n° 25

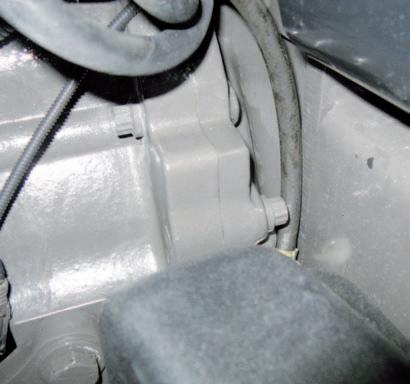

– Sling the engine on 4 points to balance the load. Note: The engine has a weight of about 550 kg. – Remove the screws from the (1) clutch casing.

1

Operation n° 26

Important: Before removing the engine, check that all elements are disconnected properly.

– Removing the engine. – Lay the engine on flat and clean ground. – Remove all external engine elements(Starter,Alternator...).

101msm99 Fig. 26

101hsm05

– Refit all external engine elements(Starter,Alternator...). – Refit the engine elements and controls by performing the above operations in reverse sequence. – Fill the A/C unit(see chapter 1240). – Fill the engine and the cooling circuit with oil(see operating manual). – All tightening torques of the front chassis on the engine and the engine on the clutch casing are in part "0300".

Fig. 27
