REMOVING THE REAR BEARING GASKET

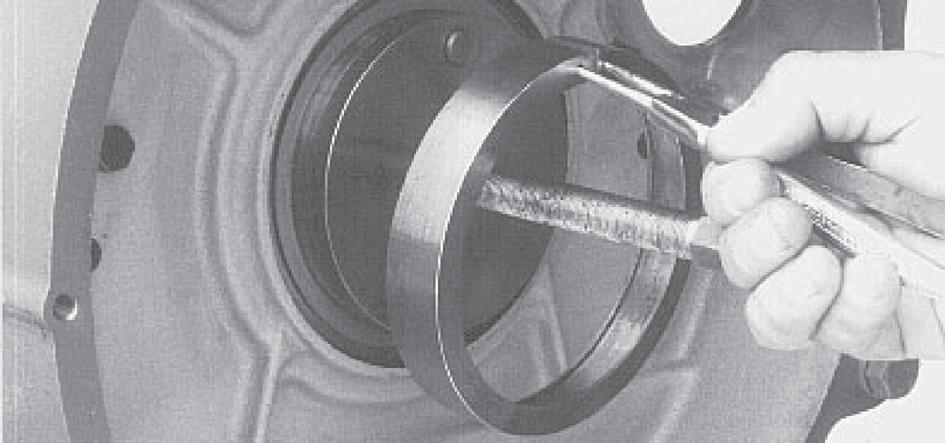

– Fit and centre tool No.6005005509 on the rear end of the crankshaft. Then use stop ring pliers and place the narrow shoulder of the tool ring (B) behind the edge of the inner gasket cage. – Hold the parts assembled using a clamp (C), then tighten the screw (D) slowly until the inside cage of the joint is extracted.

A

B

C D

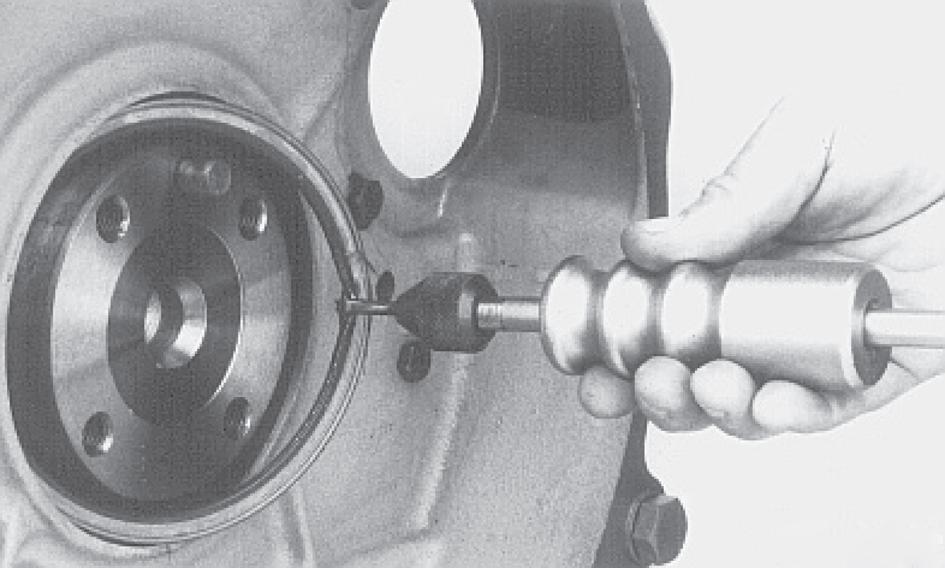

– Using a punch and a hammer, push the outer gasket cage towards the engine until the outer cage rotates. – Extract the seal cage (F) using a slide hammer.

121hsm64 Fig. 53

F

121msm27 Fig. 54
