SPECIAL TOOLS
Periodic Maintenance This section has been organized into sub-sections which show common maintenance procedures for the Arctic Cat ROV.
A number of special tools must be available to the technician when performing service procedures in this section. Refer to the current Special Tools Catalog for the appropriate tool description. Description
p/n
Compression Tester Kit
0444-213
Oil Filter Wrench
0644-389
Timing Light
0644-296
Valve Clearance Adjuster
0444-255
NOTE: Special tools are available from the Arctic Cat Service Department.

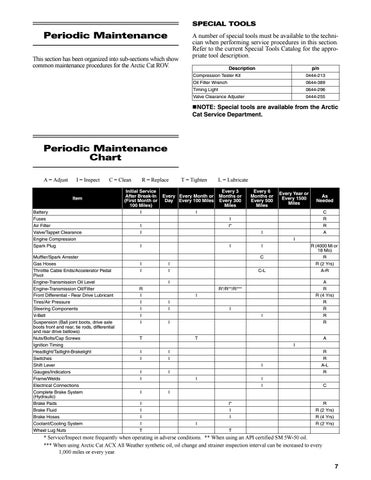

Periodic Maintenance Chart A = Adjust
I = Inspect
C = Clean
Item Battery Fuses Air Filter Valve/Tappet Clearance Engine Compression Spark Plug Muffler/Spark Arrester Gas Hoses Throttle Cable Ends/Accelerator Pedal Pivot Engine-Transmission Oil Level Engine-Transmission Oil/Filter Front Differential - Rear Drive Lubricant Tires/Air Pressure Steering Components V-Belt Suspension (Ball joint boots, drive axle boots front and rear, tie rods, differential and rear drive bellows) Nuts/Bolts/Cap Screws Ignition Timing Headlight/Taillight-Brakelight Switches Shift Lever Gauges/Indicators Frame/Welds Electrical Connections Complete Brake System (Hydraulic) Brake Pads Brake Fluid Brake Hoses Coolant/Cooling System Wheel Lug Nuts
R = Replace
Initial Service After Break-In (First Month or 100 Miles) I
T = Tighten
Every Every Month or Day Every 100 Miles
L = Lubricate Every 3 Months or Every 300 Miles
Every 6 Months or Every 500 Miles
Every Year or Every 1500 Miles
As Needed
I
C R R A
I I*
I I
I I
I
I
I
R (4000 Mi or 18 Mo) R R (2 Yrs) A-R
C I I
I I
C-L
I R I I I I I
A R R (4 Yrs) R R R R
R*/R**/R*** I I I
I l
I
T
T
A I
I I
I I
I I
I
I
I
I
I I I I T
I
R R A-L R
l l
I* I I I
C
R R (2 Yrs) R (4 Yrs) R (2 Yrs)
T
* Service/Inspect more frequently when operating in adverse conditions. ** When using an API certified SM 5W-50 oil. *** When using Arctic Cat ACX All Weather synthetic oil, oil change and strainer inspection interval can be increased to every 1,000 miles or every year.
7
