7.2 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i

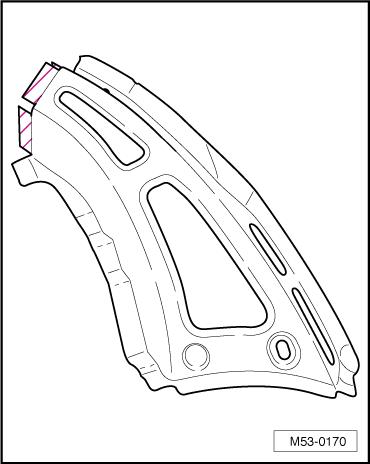

p a r t o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f 7.2 Installing 7.2.1 Preparing new part n Replacement part ♦ C-pillar reinforcement – Transfer parting cut to the new part and cut (when doing this take 10 mm additional material for overlap into consideration -shaded area-). – Step -shaded area- on new part. Jetta 2005 ➤ Body Repairs - Edition 04.2009 r in format ion in this document. Copyright by Volkswagen AG.

7.2.2 Welding in

– Fit new part and secure. – Weld parting cut, SG continuous weld seam (staggered). – Weld original joint, RP spot weld seam. – Install side panel ⇒ “6.2 Installing”, page 205 .
