p5.2 Installing

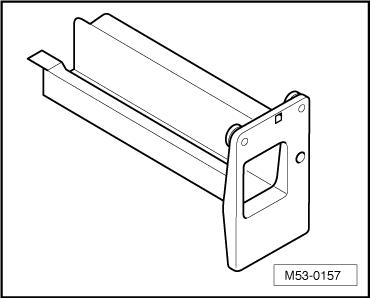

Protectd by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 5.2 Installing 5.2.1 Preparing new part Replacement part ♦ Longitudinal member ♦ Exhaust pipe bracket – Separate the longitudinal member end piece from the longitu‐dinal member. 5.2.2 Welding in e – Adapt new part to fit and secure in position with vehicle stand‐ing on alignment bracket set . – Check fitting to adjacent components. Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Jetta 2005 ➤ Body Repairs - Edition 04.2009

– Weld in new part, SG plug weld seam and SG continuous weld seam.

– Install luggage compartment floor ⇒ “3.2 Installing”, page 189 . – Install cross panel ⇒ “1.2 Installing”, page 172 .
