8.2 Installing

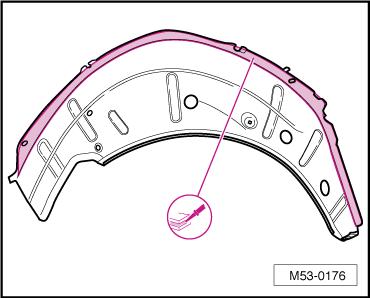

Protected by copyright . Copying fo pivate or commerci al pur po e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 8.2 Installing 8.2.1 Welding in Replacement part ♦ Outer wheel housing liner ♦ 2K body adhesive -D 180 KD3 A2Note s New part must be welded-in within 20 minutes or adhesion prop‐erties of adhesive will be impaired. r – Apply 2-K body adhesive -D 180 KD3 A2- to inner wheel hous‐ing liner contact surface. – Adapt new part to fit and secure in position when vehicle is standing on its wheels or positioned on a alignment bracket . – Check fit with side panel.

Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Jetta 2005 ➤ Body Repairs - Edition 04.2009

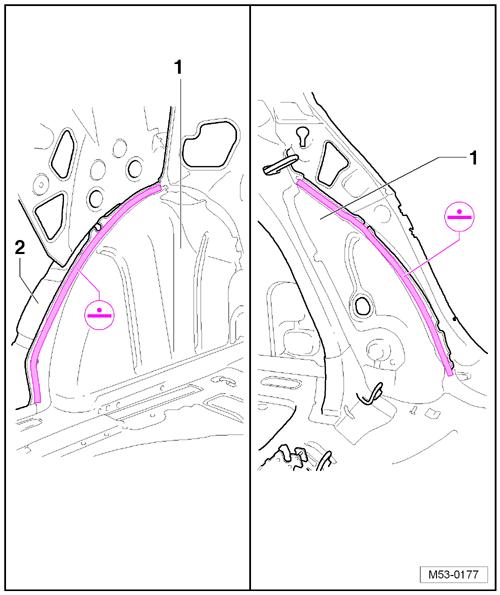

– Weld outer wheel housing -2- to inner wheel housing -1- in luggage compartment and passenger compartment, RP spot weld seam.

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG.

– Weld outer wheel housing liner -2- to side member reinforce‐ment -4-, inner side panel -3- and C-pillar reinforcement -1-, RP spot weld seam. – Install side panel ⇒ “6.2 Installing”, page 205 . – Install side member ⇒ “9.2 Installing”, page 148 *** Jetta 2005 ➤ Body Repairs - Edition 04.2009
