o4.2 Installing

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. 4.2 Installing 4.2.1 Preparing new part Replacement part ♦ Longitudinal member ♦ Exhaust pipe bracket – Transfer parting cut to new part and cut it.

4.2.2 Welding in

– Adapt new part to fit and secure in position with vehicle stand‐ing on alignment bracket set . – Check fitting to adjacent components. Jetta 2005 ➤ Body Repairs - Edition 04.2009

Protected by copyright . Copying for pivate or commerci al pur po s e s , i n p a r t r o r in w ho le, is not permitted unless authorised by Volkswagen AG. Volkswagen AG does notguarantee or accept any liabilit y wi th res pect t o t h e c o r r e c t n e ss o f in format ion in this document. Copyright by Volkswagen AG. Jetta 2005 ➤ Body Repairs - Edition 04.2009

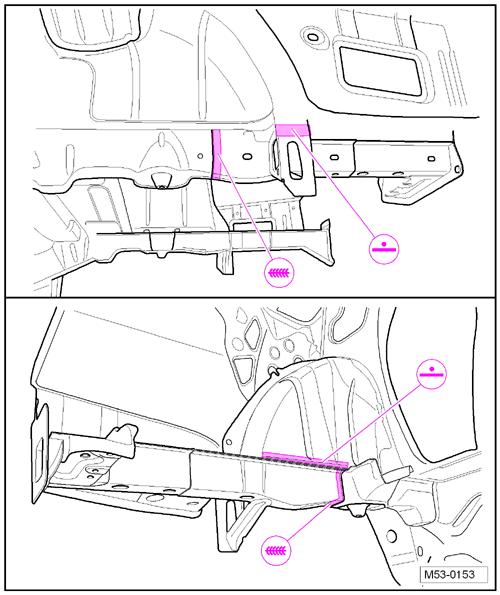

– Weld in new part, RP spot weld seam. – Weld parting cut all around, SG continuous weld seam. – Install luggage compartment floor ⇒ “3.2 Installing”, page 189 . – Install cross panel ⇒ “1.2 Installing”, page 172 .
